Place of Origin: | CHINA |
Brand Name: | Shandong Huasu Brand |
Certification: | CE, ISO9001 |
Model Number: | DWC Pipe Extrusion Pruduction Line |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $330,200-431,500/ Set |
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets/month |
Usage: | Drainpipe Pipe Line | Product: | Agricultural Irrigation Pipe Line |
---|---|---|---|
Pipe Corrugator: | Corrugated Pipe Machine | Rich Experience: | 21 Years In Corrugated Pipe Machine Production |
High Accuracy: | All Made By High Accurate Machine Tools | High Speed: | Pressurized Water Cooling, High Efficiency |
High Light: | Hexagon Corrugated Pipe Machine,HDPE Plastic Corrugated Pipe Machine,Hexagon Corrugated Pipe Extrusion Line |
The HS-1200H double wall corrugated pipe extrusion line consists of five main parts: extruder, corrugator, cooling bath, automatic sawdust-free cutting machine and pipe unloading device.
1 | Model SJPE-120/33B single screw extruder | 1 set |
2 | Model SJPE-150/33B single screw extruder | 1 set |
3 | Model HS-1800H high-speed water cooling corrugator | 1 set |
4 | Model 1800 spray cooling bath with haul-off device | 1 set |
5 | Model 1800 automatic chipless cutting machine | 1 set |
6 | Model 1800 unloading device with plastic pipes | 1 set |
Feature of Shandong Huasu corrugated pipe extrusion line
- Automatic feeder with Alarming on lacking of material.
- Harden treated screw and barrels for longer life span and durability.
- The complete extrusion line runs full-automatically.
- Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 3.8m/min.
- Efficient vacuum system for forming perfect pipes.
- Mould block temperature control system helps to optimize the pipe quality both appearance and inside.
- Easy and quick changeover between different sizes of moulds.
- Pipe Corrugator and extruders are synchronously controlled.
- Sawdust-free cutting, a hydraulic feed device with high precision can ensure flat and smooth cross-section of the pipes.
- The unloading device is equipped with automatic pipe weighting system.

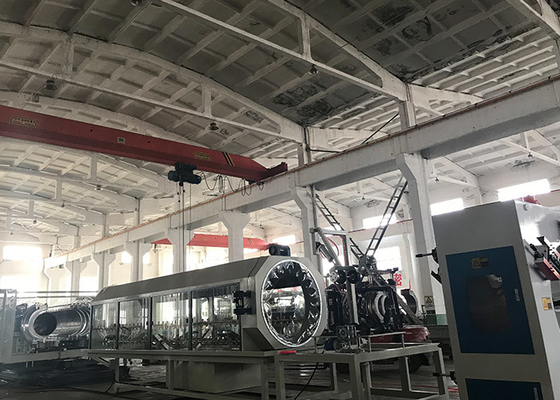

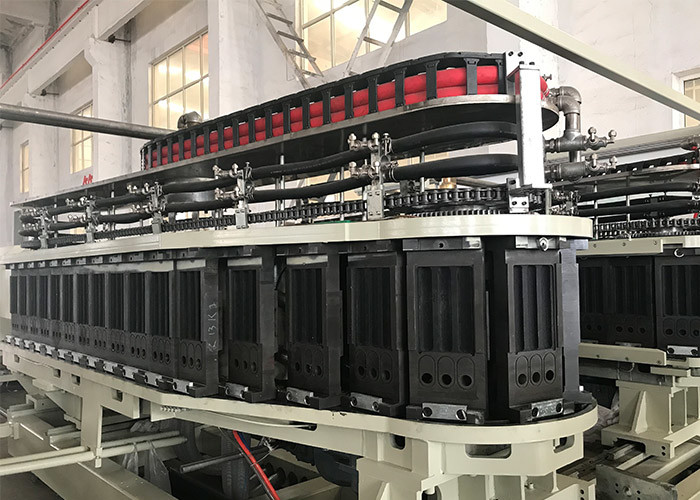

Photo of Shandong Huasu corrugated pipe extrusion line
