HDPE/PE/PP Plastic Single / Double Wall Corrugated Pipe Extruder Extrusion Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity | 1 SET |
| Price | US $100,000-375,000/ Set |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 5 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Channel Structure | Deep Screw | Automation | Automatic |
|---|---|---|---|
| Computerized | Full Computerized | Product Type | Extrusion Molding Machine |
| Feeding Mode | One Feed And One Dry | Origin | Qingdao, Shandong Province |
| Highlight | HDPE Double Wall Corrugated Pipe Extruder,PE Double Wall Corrugated Pipe Extruder,PE PP Corrugated Pipe Extrusion Machine |
||
Product Description
HDPE/PE/PP Plastic Single/Double Wall Corrugated Pipe/Tube Extrusion Making Extruder Machine
Description of HDPE/PE/PP Plastic Single/Double Wall Corrugated Pipe/Tube Extrusion Making Extruder Machine
PPR pipe production/extrusion line / PPR pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
Main advantages of HDPE/PE/PP Plastic Single/Double Wall Corrugated Pipe/Tube Extrusion Making Extruder Machine:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.
Models of HDPE/PE/PP Plastic Single/Double Wall Corrugated Pipe/Tube Extrusion Making Extruder Machine
| Model | PP-R-32 | PP-R-110 |
| Specifications of extruder | SJ65/30 | SJ90/30 |
| Pipe Type(mm) | φ16- φ 63 | φ 75- φ 110 |
| Production line speed(m/min) | ≥ 10 | ≥ 5 |
| Air pressure(≥ 0.6MPa)(m3/min) | 0.3 | 0.5 |
| Cooling water flow rate(m3/h) | 2 | 8 |
| Total power(kw) | 55 | 120 |
| Dimension(mm) | 20000*4000*1700 | 30000*5000*1750 |
| Weight(kg) | 3500 | 4500 |

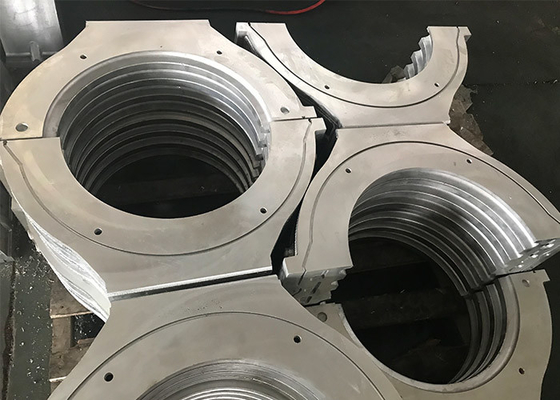

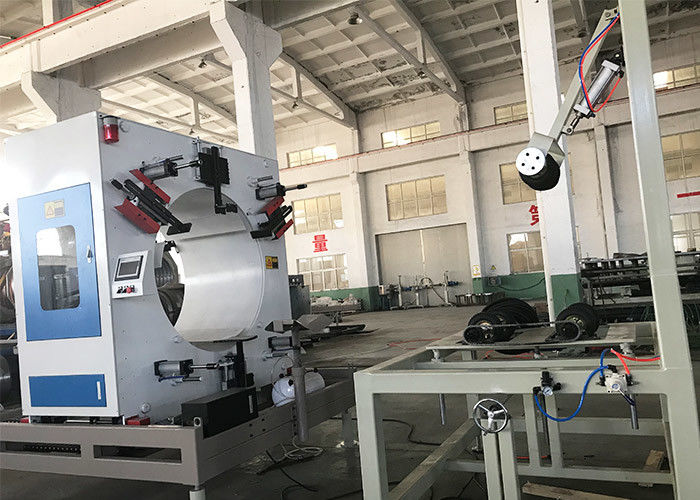

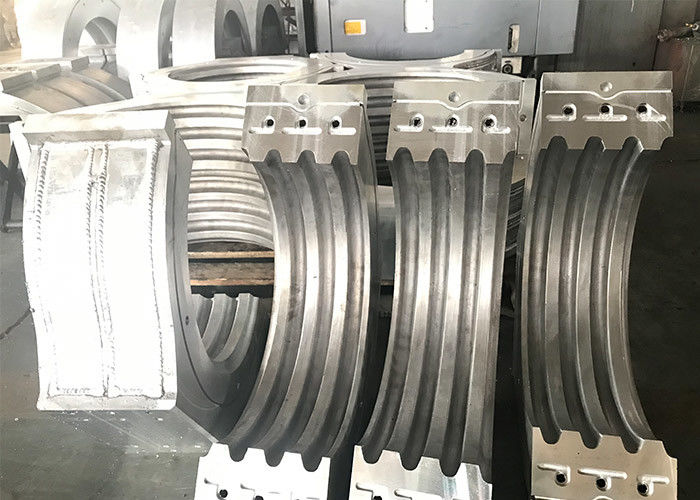

Photo of HDPE/PE/PP Plastic Single/Double Wall Corrugated Pipe/Tube Extrusion Making Extruder Machine
