| Place of Origin: | CHINA |
| Brand Name: | Shandong Huasu Brand |
| Certification: | CE, ISO9001 |
| Model Number: | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $50,000-295,000/ Set |
| Packaging Details: | standard package or as required |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets/month |
| Screw Type: | Two Single Screw Extruders | Extruder 1: | 120/33 |
|---|---|---|---|
| Motor 1: | 220kw | Max. Output: | 800kg/h |
| Extruder 2: | 90/33 | Motor 2: | 132kw |
| High Light: | DWC Cable Extrusion Line,DWC Tube Extrusion Line,DWC Cable Pipe Making Machine |
||
Description of Double Wall Corrugated (DWC) Cable/Tube Extrusion Line/Extruder Pipe Making Machine
To strengthen corrugated pipe for use in high pressure & high impact applications, Huasu have developed a mile stone double wall Corrugator of marvelously crafted article of plastic technology.
For similar material of inner & outer tube, single extruder is used with special die head, while for non-similar material of inner & outer tube, duel extruders with specific cross die head is used.
Here Inner tube protects & conveys material at minimum loss of friction & pressure, while outer corrugation adds protective mechanical properties.
Depending on material, welding junction zone of adjacent pipe surfaces gives additional strength like as of spiral-breaded design.
Technical data of Double Wall Corrugated (DWC) Cable/Tube Extrusion Line/Extruder Pipe Making Machine
| Size of Pipe | From 50 mm to 150mm Diameter |
| Drive For Corrugator | 5HP.3 Phase 415±5 voltage Gear Motor [standard make] |
| Variable Speed Drive | 0.5 m/min to 10m/min speed variable depend on size & output of extruder with emergency stop arrangement. |
| Lubrication System | Centralized lubrication system used to give specific pulse at specific place to easily slide with low friction. |
| Cooling System | Inbuilt cooling channel with brass fitting of inlet & outlet connection for chilled water. |
| Air Chiller | Used as additional air cooling for better finish & output |
| Line Speed Per Minute | 3 to 6 Meter /min depend on size of pipe. |

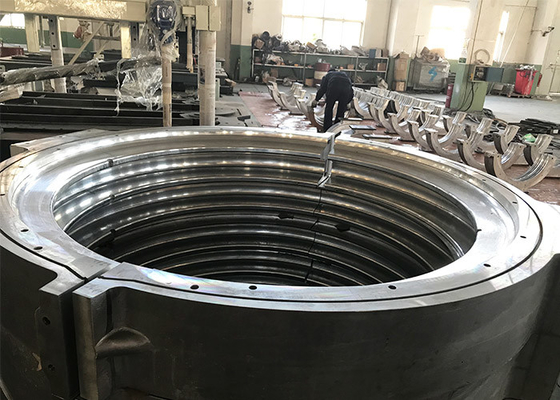

Photo of Double Wall Corrugated (DWC) Cable/Tube Extrusion Line/Extruder Pipe Making Machine
Other features of Double Wall Corrugated (DWC) Cable/Tube Extrusion Line/Extruder Pipe Making Machine

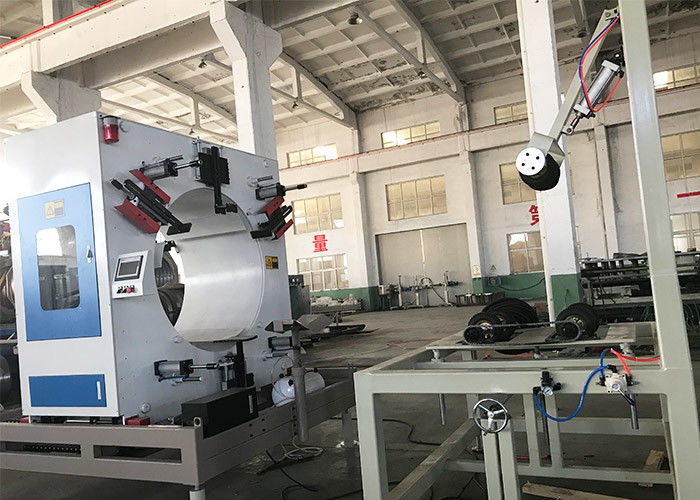

AC motor driven planetary cutting unit to cut pipe diameter. Pipe cutting jaws clamping force adjustable, depending upon wall thickness & diameter of pipe.
Saw table movement through pneumatic cylinder can be synchronized with pipe line speed providing cut out for Length Counter. After cutting pipe get collect & kept in order by tilting unit.

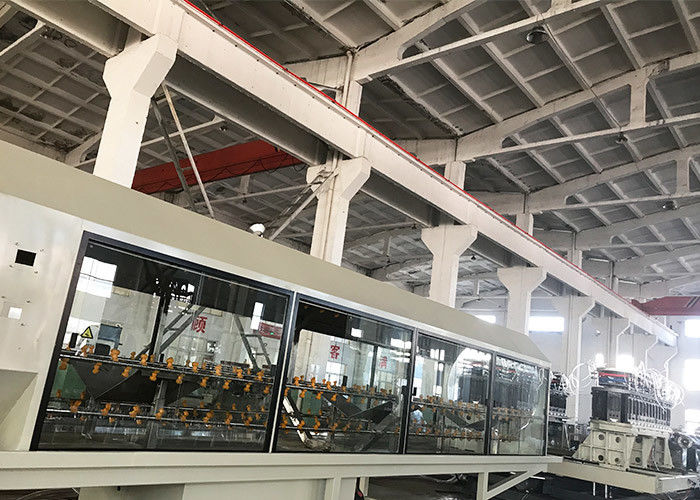

Cooling water tank is require to give additional cooling tor maintain shape & size. Water spray on outside diameter of pipe.
This water cooling tank is provided with different point for water spray for single length of pipe to strength its properties.
