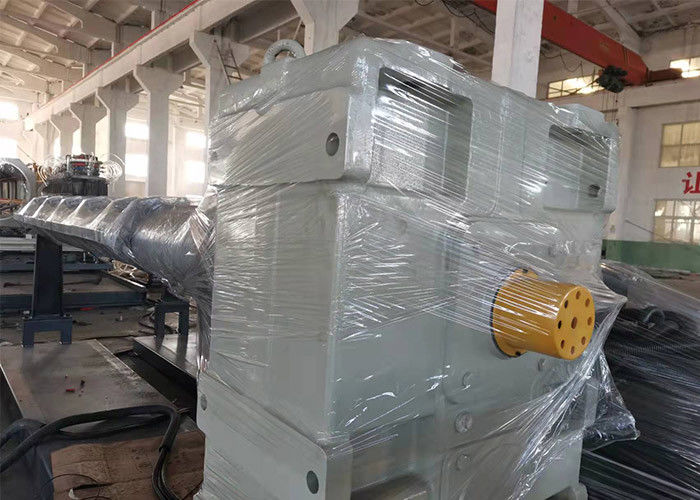

PP PE HDPE High Speed Single Wall Corrugation Pipe Machine For Electric Pipe
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity | 1 SET |
| Price | $21,000.00 - $106,000.00/ Set |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 5 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Extruder 1 | 55/30 | Power 1 | 18.5 Kw |
|---|---|---|---|
| Max. Outout 1 | 70 Kg/h | Place Of Origin | Shandong, China |
| Warranty | 1 Year | Key Selling Points | High-accuracy |
| Highlight | PP Single Wall Corrugation Pipe Machine,PE Single Wall Corrugation Pipe Machine,HDPE Single Wall Corrugation Pipe Machine |
||
Product Description
PP PE HDPE High Speed Single Wall Corrugation Pipe For Electric Pipe Manufacture
Description of High Speed Corrugated Plastic Pipe Machine-Corrugated Plastic Pipe Extrusion Line
This Corrugated Plastic Pipe Machine can produce Corrugated plastic pipe (single wall), which is widely used as electric pipe, wash basin drainage pipe, washing machine drainage pipe, shisha pipe, hookah pipe etc.
This Corrugated Pipe machine is a high speed machine, speed can reach Max.30m/min
Main Features of High Speed Corrugated Plastic Pipe Machine / Corrugated Plastic Pipe Extrusion Line
1)Use PE/PVC/PP/PA/EVA material to extrude corrugated pipes for cable lines, protective lines and electrical appliances pipe lines and integrated circuit lines, etc.
2)Outlook complete and unify, SIEMENS PLC digital control,
3)High-efficiency screw and special design of mould and calibrator make the machine performance is more reliable, and the products are more stable.
4)Optional pipe types formation for different usages.
Parameterts of High Speed Corrugated Plastic Pipe Machine / Corrugated Plastic Pipe Extrusion Line
| No | Description | Qty | Remark |
| 1.0 | Single—Screw Extruder SJ-55/30 | 1 set | |
| 2.0 | Die head | 5 set | Φ16/20//25/30/35mm |
| 3.0 | Forming Machine | 1 set | |
| 4.0 | Mould Blocks | 5 sets | Φ16/20//25/30/35mm |
| 5.0 | Winding Machine | 1 set | |
| 6.0 | Control System | 1 set |

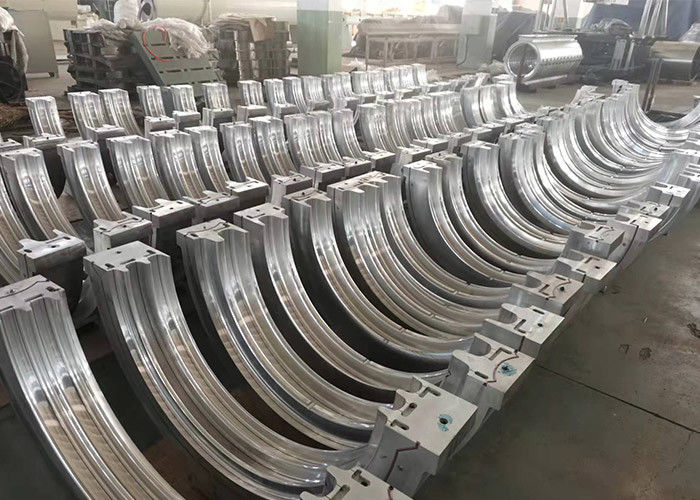

Photo of High Speed Corrugated Plastic Pipe Machine mould blocks
