Name: PE Large Diameter Corrugated Pipe Making Machine DWC Pipe Extrusion Machine
Brand: Shandong Huasu Plastic Technology Co., Ltd
SKU: DWC Pipe Extrusion Pruduction Line
Availability: InStock

Home > Products > DWC Pipe Extrusion Line >

PE Large Diameter Corrugated Pipe Making Machine DWC Pipe Extrusion Machine

Large Diameter Corrugated Pipe Making Machine

PE Corrugated Pipe Making Machine

PE DWC Pipe Extrusion Machine

Place of Origin:

CHINA

Brand Name:

Shandong Huasu Brand

Certification:

CE, ISO9001

Model Number:

DWC Pipe Extrusion Pruduction Line

Request A Quote

PE Large Diameter Corrugated Pipe Making Machine DWC Pipe Extrusion Machine

Product Details

Screw Design:

2 Single Screw

Certification:

CE ISO SGS

Raw Material:

PP PE Granules

Motor:

SIEMENS Brand

Highlight:

Large Diameter Corrugated Pipe Making Machine

PE Corrugated Pipe Making Machine

PE DWC Pipe Extrusion Machine

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

$28,000.00 - $90,000.00/ Set

Packaging Details

standard package or as required

Delivery Time

30 working days

Payment Terms

T/T

Supply Ability

5 sets/month

32-1600mm Pipe Diameter DWC Pipe Extrusion Line with 60-2000kg/h Capacity and Automatic Production Line

Get Best Price

Video

Conical Twin-screw Extruder DWC Pipe Extrusion Line for 32-1600mm Pipe Diameter and 60-2000kg/h Capacity

Get Best Price

Video

DWC Pipe Extrusion Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology for High Efficiency

Get Best Price

Video

Dual Wall Corrugated Pipe Production Line with 32-1600mm Pipe Diameter 60-2000kg/h Capacity and Siemens PLC Technology

Get Best Price

Contact Now

Product Description

PE Large Diameter Corrugated Pipe Making Machine DWC Pipe Extrusion Machine

Configurations of the DWC PIPE production line:

This production line is composed of two high-efficiency single-screw extruder, imported ratio-adjusting valve, double-passage spiral composite extrusion molds, vertical forming machines (or horizontal type), spray cooling tank, double-blade radial cutter and stacker, etc.

Characteristics of the DWC PIPE production line:

1. Stable extrusion, excellent plastization.

2. The mold surface is nitrogened and polished, with double-wall thickness regulating device.

3. The forming machine and extruding mold work together to achieve the vacuum forming technologh and extruded pipe online belling.

4. The whole production line adopts PLC micro-computer control system, which can direct display the pictures such as the melting temperature, compressure, forming speed, alarming, etc. at the same time, it has the function of memory.

Main technical parameter of the DWC PIPE production line:

Model	SGB160	SGB250	SGB400
Structure Form	Horizontal	Horizontal	Horizontal
Pipe Diameter Range(mm)	75-160	90-250	225-400
Expansion Mode	Belling-on-line, double-wall socket joint	Belling-on-line, double-wall socket joint	Belling-on-line, double-wall socket joint
Forming Speed(m/min)	0.6-5	0.5-5	0.25-4
Max. Extrusion Output	200	350	600
Number of Mold Blocks(pairs)	48	48	40
Centre Height(mm)	1000	1150	1150

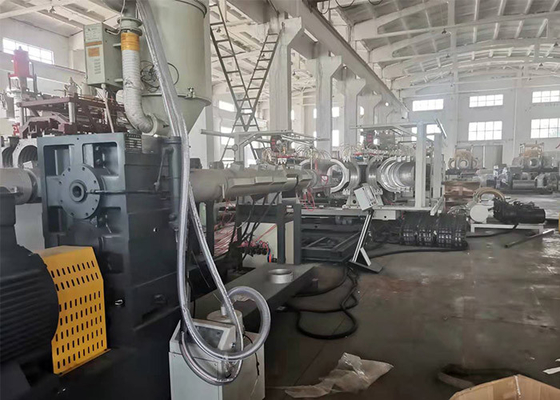

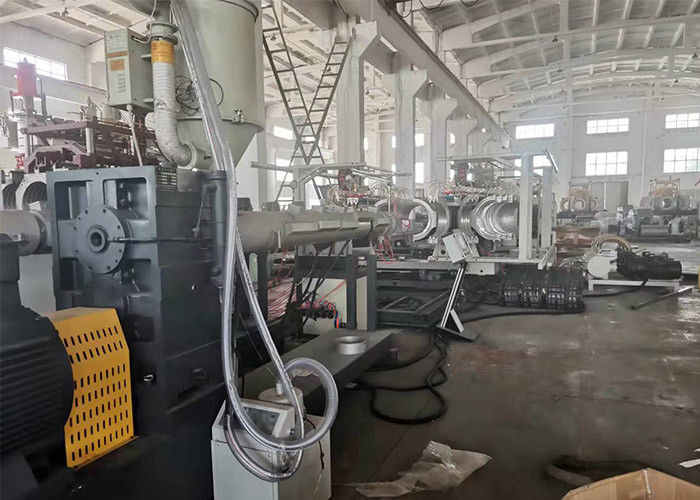

Photo of the DWC PIPE production line
