400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line

  • 400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
  • 400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line
Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number DWC Pipe Extrusion Pruduction Line
Minimum Order Quantity 1 SET
Price $3,000.00 - $250,000.00/ Set
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 5 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model SBG 600H Line Speed Fast Speed
Mould Blocks 36 Pairs Voltage 380V
Highlight

500kg/H Double Wall Corrugated Pipe Extrusion Machine

,

400kg/H Double Wall Corrugated Pipe Extrusion Machine

,

500kg/H Double Wall Corrugated Pipe Production Line
Leave a Message
Product Description

Shandong Huasu Brand Double Wall Corrugated Pipe Extrusion Production Line

Technical Parameters of double wall corrugated pipe extrusion line

Model

Pipe Dia.

(MM)

Output

(KG/H)

Main Power

(KW)

 Corrugator Type
SBG-160 Φ63-Φ160 300-400 0.7-7 Horizontal
SBG-250 Φ75-Φ250 450-600 0.5-5
SBG-400 Φ200-Φ400 500-700 0.5-5



Pipe Diameter List:
Application: Water drainage
Pipe length: 6m
Recommended raw material: new material for PE double wall corrugated pipe;
Color: Outer layer is black, inner layer is blue;
Pipe list and pressure grade: pipe section drawing according to Huasu standard; belling on-line;



Main Technical performance
1. Material:PE
Extruder:- SJ 90/33
Material:- PE
Output:- 400-500kg/h

Extruder:- SJ 75/33
Material:- PE
Output:- 200-300kg/h

The output capacity varies with the materials and the operation conditions.
2. Line speed:0.3~3.5m/min°according to the thickness and operation condition)
3. Operation direction:From right to Left°
4. The color of the line:JWELL According to Huasu’s standard.
5. HUASU remains the right to improve the specification of the line

Automatic feeder and drier
feeding type vacuum suction method
Drying type Automatic hot wind

Extruder
Type SJ 90×33

Screw:-
Diameter 90mm
L/D 33:1
Material 38CrMoAlA
Treatment Nitrided treatment

Barrel
Material 38CrMoAlA
Treatment Nitrided
Heating control zones 6
Heating power 8KW×5
Cooling system By blower fan
Cooling power 0.55KW×5



Gearbox
Material of the house QT200
Gear type Helical gears
Material of the gear 20CrMnTi
Heat treatment of the gear surface:- Quenching
Bearings Chinese famous bearing
Lubricating system Press system
Cooling System Equipped with separate Cooling System



For more details, please contact Ellen Liu.

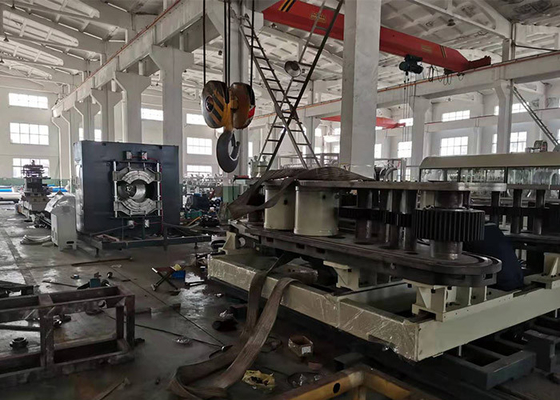

400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line 0

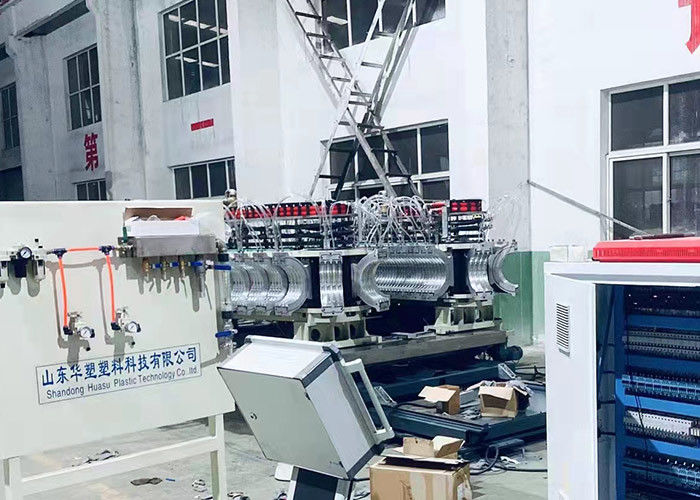

Photo of double wall corrugated pipe extrusion line

400-500kg/h Double Wall Corrugated Pipe Extrusion Machine Production Line 1
