75-250mm Dwc HDPE Pipe Extrusion Line Full Automatic

Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number DWC Pipe Extrusion Pruduction Line
Minimum Order Quantity 1 SET
Price US $79,000
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 30 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. Dwc HDPE Pipe Extrusion Line Material PE/PP
Type Of Pipe Double Wall Corrugated Pipe Specification 75-250mm
Feature Full Automatic HS Code 84772090
Highlight

Dwc HDPE Pipe Extrusion Line

,

250mm HDPE Pipe Extrusion Line

,

Full Automatic Hdpe Pipe Extruder Machine

Leave a Message
Product Description

75-250mm Dwc HDPE Pipe Extrusion Line Full Automatic

Description of our HDPE Pipe Extrusion Line

Our plastic Pipe Extrusion Line can make many kinds of plastic productions like: PVC pipe, CPVC pipe, PE/HDPE/PE-RT pipe, PP-R pipe,plastic foamed profile, WPC profile and panel, wood plastic composite and so on.



Model Pipe Diameter Product Speed Extruder Model Motor Power
SBWG-250 75-250mm 1.5-4m/min 75/33&65/33 55KW&45KW

Advantage of our HDPE Pipe Extrusion Line

1. The main machine adopts special designed high efficiency screw which is specially used for polyethylene,it has the features of stable performance and high deficiency.The machine has two independence extruders, which can realize both inside and outside layer with different material and colors.

2. Composite extrusion die head with specially helical structure to make the wall thickness uniform and stable production.

3. The forming machine has automatic power-off protection device.The forming machine an automatically exit from the die head to avoid equipment failure in case of electricity cut off suddenly.It also equipped with new type high transmitting ratio reducer, easy to operate and maintenance.

4. The corrugated forming system is in combination with water cooling and air cooling to ensure high production speed
continuously.Advanced programmable lubricating system minimizes the moulds wear so as to increase the life of service and ensure work smoothly with high precision to ensure the products quality stability.

5. Mould adopts specially aluminium alloy material and high precision die casting forming mould method,it has the advantages of high precision,high strength,good wear-ability and better heat dissipation performance.

6. Wave structure launched a comprehensive new optimization design to reach the best combination of high-rigidity and low weight.

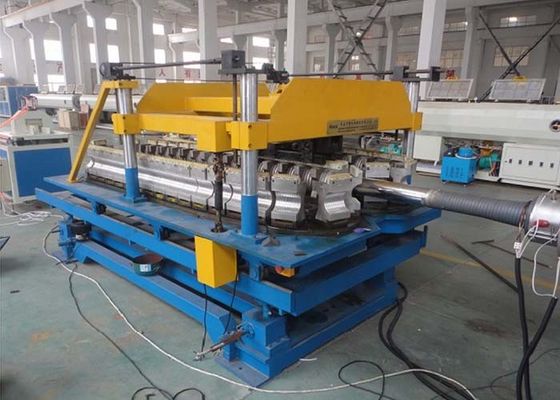

Photos of our Plastic DWC double wall corrugated pipe machine

75-250mm Dwc HDPE Pipe Extrusion Line Full Automatic 0
