Place of Origin: | CHINA |
Brand Name: | Shandong Huasu Brand |
Certification: | CE, ISO9001 |
Model Number: | Hdpe Pipe Extrusion Machine |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $250,000/ Piece |
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 30 sets/month |
Name: | HDPE Pipe Extrusion Machine | Screw No.: | Single Screw |
---|---|---|---|
Customized: | Yes | Transport Package: | Wooden Package Or As Required |
Trademark: | SD Huasu | Cooling: | Water Cooling |
High Light: | High Speed HDPE Pipe Extrusion Machine,Single Screw HDPE Pipe Extrusion Machine,Water Cooling HDPE Pipe Extrusion Line |
1. We are a enterprise which is specialized in research, manufacture and marketing plastic extrusion lines, plastic
production line.
2. Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder
Parameters
Pipe Outer Diameter | ID40 mm Up to 1500mm (customized) |
Model No. | Huasu SBG (customized) |
Power Range | Up to 1000 (kW) (customized) |
Production Capacity | Up to 2000 kg/h (customized) |
Energy-Saving type | Available |
Layers | SWC Single wall Corrugated Pipe or DWC Double Wall Corrugated pipe (customized) |
Extruders | Single Screw Extruder or Conical screw Extruder (customized) |
Material | HDPE PP PVC High density Polyethylene (customized) |
Guarantee Time | 1 year (customized) |
Certification | CE, TUV, SGS |
Features of Plastic PE PP Horizontal Water Cooling High Speed Double Wall Corrugated Pipe Extrusion Machine:
1.The extrusion lines equipped with two extruders for two layer co-extrusion, stable extrusion, excellent plasticization.
2. Horizontal type high speed water cooling
3. Double flow channel spiral composite extrusion die head. the surface is Nitrided and polished.
4. Thickness regulating device for double wall.
5. Double wall belling on line.
6. Working table is three-dimensionally adjustable.
7. Automatic protection system starts and working table comes back when power off.
8. Automatic lubrication station.
9. Mould blocks are made of special aluminium alloy and features right weight, high strength, good wear resistant.
10. Air cooling and water cooling for well cooling corrugated moulds that forming pipe at higher speed.
11. The complete line adopts PLC micro-computer control system which can visually shows melt temperature and pressure, forming speed, error alarm and also has storage capacity of basic process.
12. High efficiency singe screw extruder (using granule material) and energy- saving twin- screw extruder (using powder or granule material) for your choice.
13. Imported ratio-adjusting valve adjusts forming pressure stable and reliable.

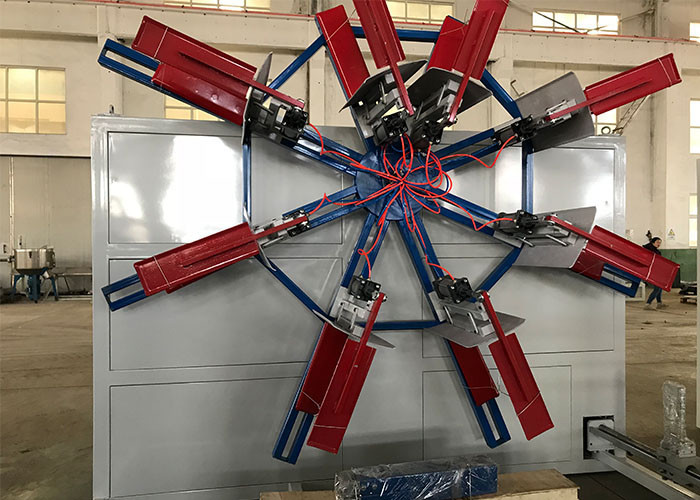

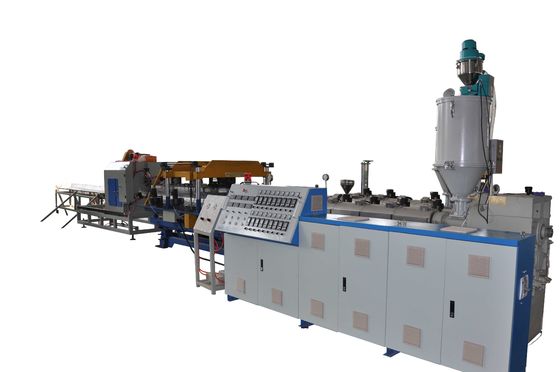

Photos of Plastic PE PP Horizontal Water Cooling High Speed Double Wall Corrugated Pipe Extrusion Machine
