Place of Origin: | QINGDAO CHINA |
Brand Name: | QINGDAO HUASU |
Certification: | CE IOS9001 |
Model Number: | SBG-300 |
Minimum Order Quantity: | 1set |
---|---|
Price: | USD 19000.00-20000.00/set |
Packaging Details: | NORMAL PACKAGE |
Delivery Time: | 5-8work days |
Payment Terms: | L/C |
Supply Ability: | 100sets/year |
Name: | DWC Pipe Extrusion Line | Product Type: | Double Wall Corrugated Pipe Extrusion Line |
---|---|---|---|
Product Name: | Corrugated Pipe Making Machinery | Temperature Controller: | Temperature Sensor |
Plastic Machine: | Double Wall Corrugated Pipe Plant | ||
High Light: | 300mm DWC Pipe Extrusion Line,LDPE DWC Pipe Extrusion Line,HDPE DWC Pipe Extrusion Line |

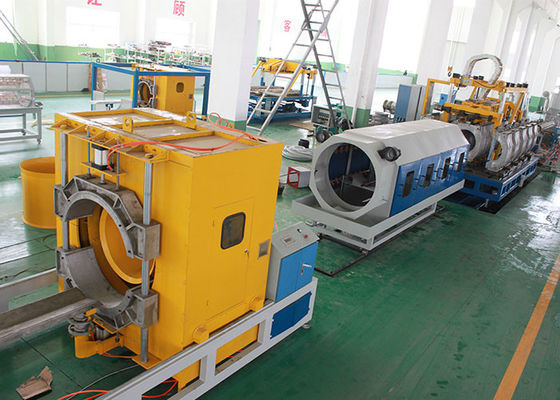

Large Diameter 90-300mm DWC Pipe Extrusion Line HDPE LDPE Pipe
DWC Pipe Extrusion Line is designed by using the template of the forming machine, and the products are air-cooled through the gear drive module, so that the forming speed quickly, with uniform corrugated shape, consistent joints and smooth inner and outer walls.
1. All-new mould blocks cooling method. The mould blocks are cooled continuously by“pressure cooling” water circulating in sealed channels to achieve higher cooling efficiency and higher production speed, which strongly guarantee lower pipe production cost.
2. Highly compatible technical solution of mould blocks. The mould blocks can be compatible between different models of production lines in order to make the production more flexible with lower maintenance cost.
3. All-new design of “none platform” for corrugator. Need not to adjust the height of corrugator when change the moulds for different sizes. Operations become easier and more efficient.
4. Innovative rapid assembly of mould blocks in clasp style simplifies the operation of changing mould blocks and greatly shortens the down time.
Model | pipe diameter | Installed power | Mould block | Chain length | Max.output | Max.operating speed |
SBG300 | ID90-300mm | 250kw | 36pair | 6333mm | 900kg/h | 18m/min |
