200-600 Mm HDPE Pipe Extrusion Line Two Extruders Co-Extrusion
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG 600H |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 60 working days |
| Payment Terms | T/T |
| Supply Ability | 30 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe ID | 200 Mm -600 Mm | LD | 33:1 |
|---|---|---|---|
| Extruder | SJ90/33 & SJ120/33 | Max. Output | About 20 MT/day |
| Unique Advantage | CNC | Product Name | HDPE Pipe Extrusion Line |
| Contactor | Siemens | ||
| Highlight | 600 Mm HDPE Pipe Extrusion Line,200 Mm HDPE Pipe Extrusion Line,600 Mm hdpe pipe extruder |
||
Product Description

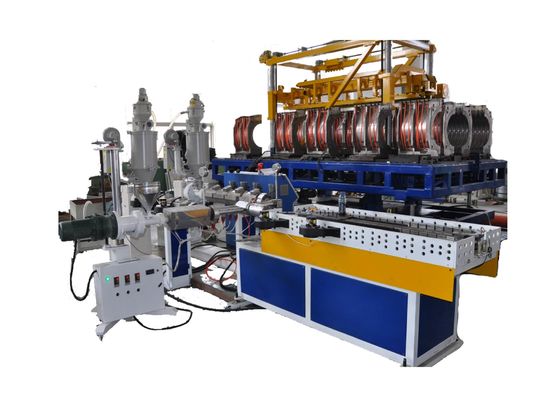

200-600 Mm HDPE Pipe Extrusion Line Two Extruders Co-Extrusion
HDPE double wall corrugated pipes are one mould profile two layer extruding. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation.
ADVANTAGE:
1. adopt directly extruding ( two extruders' co-extrusion ) and forming technology
2. human-machine interface control system
3. high automation degree
4. reliable quality
5. stable production
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) |
| 1 | 200 | |
| 2 | 315 | |
| 3 | 400 | |
| 4 | 500 |
| Extruder | Motor | Max. Output | Note |
| SJ120/33 | 250kw | 800kg/h | |
| SJ90/33 | 132kw | 450kg/h |
| No. | Name & Model | Quantity | |
| 01 | Single screw extruder SJ-120/33 | 1 set | |
| 02 | Single screw extruder SJ-90/33 | 1 set | |
| 03 | Molds | ID200mm die head water sleeve mould block | 1 set |
| ID315mm die head water sleeve mould block | 1 set | ||
| ID400mm die head water sleeve mould block | 1 set | ||
| ID500mm die head water sleeve mould block | 1 set | ||
| 04 | Forming machine SBCJ-600 | 1 set | |
| 05 | Water cooling tank SBSC-600 with haul-off machine | 1 set | |
| 06 | Planetary chip free cutting machine SBQG-600 | 1 set | |
| 07 | Unloading bracket SBXL-600 | 1 set | |
| 08 | PLC control system | 1 set | |
| 09 | Spare parts | 1 set | |
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.
Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
