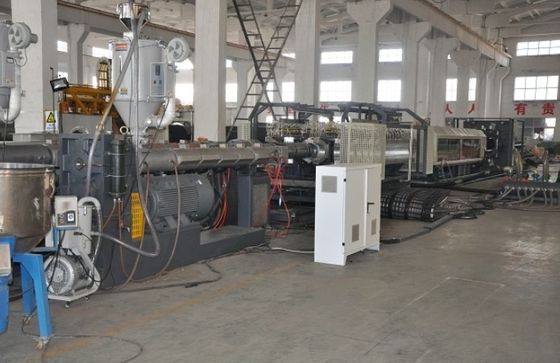

90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe

90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe

90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe
90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe
90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe
Product Details:
Place of Origin: Shandong, China
Brand Name: HUASU
Certification: CE, ISO9001
Model Number: SBG 315
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Packaging Details: standard package or as required
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets / month
Contact Now
Detailed Product Description
Name: HDPE Pipe Extrusion Line Motor: AC Motor 75kw
Max Output: 260 Kg/h Operation Direction: From Right To Left
L:D: 30︰1 Dryer: Auto
Usage: Gas Supplying Pipe
High Light:

250mm HDPE Pipe Extrusion Line

,

90mm HDPE Pipe Extrusion Line

,

90mm hdpe pipe extrusion machine

90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe

HDPE Pipe Extrusion Line Quick Details



1. High output,high efficiency

2. Easy to operate

3. Dust-free cutting mode



Features of HDPE Pipe Extrusion Line :



Pressure water-cooling for mould blocks greatly increase the production speed; the maximum speed is 6.24m/min.

Low energy consumption help to cut production cost.

Efficient vacuum system for forming perfect pipes.

Mould block temperature control system helps to optimize the pipe quality both appearance and inside.

Corrugator and extruders are synchronously controlled.

Harden treated screw and barrels for longer life span and durability.

Remote Service is available.

Toolings (moulds) compatible to ZC-600H line and ZC-1000H line.



No.

Name & Model



Quantity


01 Single Screw Extruder SJ90X30 1 set
02 Single Screw Extruder SJ65X30  1 set
03 Molds

90mm die head water sleeve mould block

90mm

 5 sets

110mm die head water sleeve mould block

110mm

160mm die head water sleeve mould block

160mm

200mm die head water sleeve mould block

200mm

250mm die head water sleeve mould block

250mm
04 Forming Machine SBCJ-315  1 set
05 Cutting Machine STG-315  1 set
06 Unloading Bracket  1 set
07 PLC Control System SBG 315 PLC 1 set





Extruder

Motor

Max. Output

Note
SJ90/30 75kw 150-260kg/h
SJ65/30 37kw 60-120kg/h

90mm-250mm HDPE Pipe Extrusion Line For Gas Supplying Pipe 0



Raw material+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single Screw Extruder →Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Water Tank → Haul-off → No Dust Cutter →Stacker → Final Product Inspecting &Packing



You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers; (3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
