Place of Origin: | Shandong, China |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SBG 63 |
Minimum Order Quantity: | 1 sets |
---|---|
Packaging Details: | standard package or as required |
Delivery Time: | 30 working days |
Payment Terms: | T/T |
Supply Ability: | 20 sets / month |
Motor: | AC Motor 18.5 Kw | Max Output: | 80 Kg/h |
---|---|---|---|
L:D: | 30︰1 | Dryer: | Auto |
Barrel Heating Zone: | 4 Zones X 6kw | Barrel Cooling Zone: | 4 Zones×0.25kw |
High Light: | 80 Kg/H Polyethylene Pipe Production Line,Double Wall Polyethylene Pipe Production Line,Single Wall Polyethylene Pipe Production Line |
80 Kg/H Polyethylene Pipe Production Line Single / Double Wall
Polyethylene Pipe Production Line is very suitable to process HDPE resin with high capacity, max capacity can reach 80kg/h The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
No.
|
Name & Model
|
Quantity
|
|
1.0 | Single—Screw Extruder SJ-65/30 | 1 set | |
2.0 | Molds |
16mm die head mould block 16mm |
2 sets |
63mm die head mould block 63mm |
|||
3.0 | Forming Machine | 1 set | |
4.0 | Winding Machine | 1 set | |
5.0 | Control System | 1 set |
Extruder
|
Motor
|
Max Output
|
Note
|
SJ-65/30 | 18.5kw | 40-80kg/h |
High effectioncy single/double screw extruder guarantees the high efficiency extrusion, flexible hauling-off and cutting unit make the running more reliable. It adopts SIEMENS PLC controling system which garrantees high automaticity.
1. The output capacity varies with the materials and the operation conditions.
2. Line speed: According to the thickness, pipe stander and operation condition.
3. Operation direction: From Right to Left or as required
4. The color of the line: HUASU standard color.
Molds :

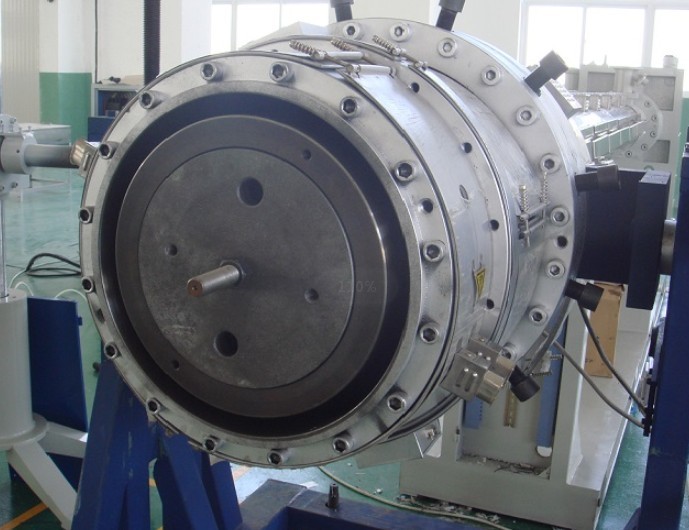

Die Head
--Specification φ16-φ63m
--Material 40Cr
--Heating loop Stainless steel
Mould Blocks
--Specification φ16-φ63mm
--Amount 44 pairs
--Mold Block Total Length 44×56.55 = 2488.2mm
--Mold block Specification 56.55(length)* 56(width)* 70(thickness)
--Cooling type Air cooling by fan
Packing&Shipping
The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Warranty
Machinery warranty time is 12 months from the date of Bill of Lading. Electric and electronic parts excluded. Are furthermore excluded damages due to wrong use, not correct handling or inattentive operations and bad working system of the machine.
