Place of Origin: | QINGDAO, CHINA |
Brand Name: | HUASU |
Certification: | CE, ISO9001 |
Model Number: | SJ30-90 |
Minimum Order Quantity: | 1 Line |
---|---|
Price: | USD 300-200000 PER SET |
Packaging Details: | THE PACKING IS SUITABLE FOR OCEAN TRANSPORT |
Delivery Time: | 2-4 SETS PER MONTH |
Supply Ability: | 40-60 WORKING DAYS |
Name: | Hdpe Pipe Extrusion Machine | Condition: | New |
---|---|---|---|
Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Keywords: | Pvc Pipe Manufacturing Plant |
High Light: | 250mm Hdpe Pipe Extrusion Machine,75mm Hdpe Pipe Extrusion Machine,250mm Pvc Pipe Manufacturing Plant |
75-250mm Hdpe Pipe Extrusion Machine Pvc Pipe Manufacturing Plant
PE spiral CORRUGATED pipe
Has characteristics of light weight, high strength, corrosion resistance, anti-bend, and non-leaking, bypassing the obstacles and so on. This kind of pipe can substitutes iron pipe, rubber pipe and PE pipe (PE strengthen screw soft pipe, PE double wall corrugation pipe). These pipes are mainly applied in the field of agricultural irrigation protection of cable and ventilation and so on.

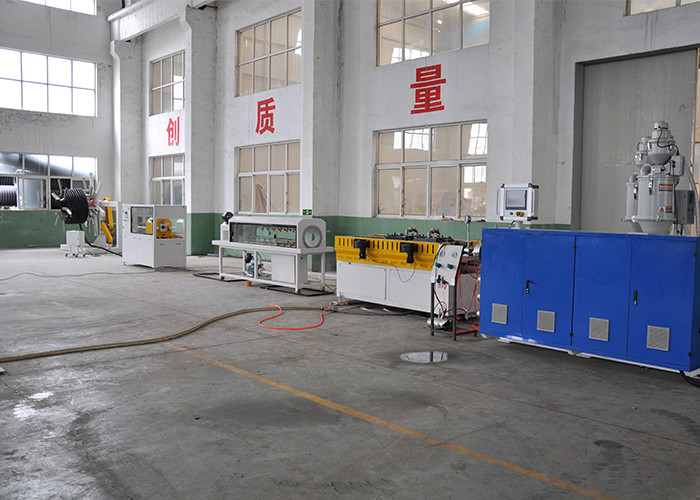

PE spiral CORRUGATED pipe extrusion line
Produced by Qingdao HUASU Machinery Fabricate Co., Ltd adapted to the development trend. This pipe line has many advantages such as high production speed, high degree automation, stable working performance, large output and high efficiency and so on. It mainly applied in the field of protection of cable and ventilation and so on.
Process flow:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder →→ CORRUGATOR(foaming machine)→ haul-off machine → cutting machine → winder.
PE CORRUGATED spiral pipe production line mainly includes single screw extruder, die, mold block, CORRUGATOR(foaming machine) , haul-off machine, cuttingmachine and winding machine.
Single Screw Extruder:
Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion.
Die:
Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface. The helix apportionment style shunt body and big flow space assure the melting material having enough staying time. Best design of low melting temperature caused in little internal pipe stress, smoothing inner and outer pipe surface.
Corrugator:
Corrugator is adopted horizontal structure with chain type transmission,equipped with open water cooling system and vacuum forming system. It greatly increases the production speed. The belling on line function decreases investment cost and improves production efficiency. Mold moving adopts synchronous upper and lower mechanical drive system and advanced self-lubrication system. It assures moving accuracy and corrugated pipe quality stability.
Haul-off Machine:
Frequency convertor, pneumatic clamping, and simultaneous running with the whole production line.
Cutting Machine:
High accuracy, low noise and fixed length cutting.
Winding Machine:
Torque motor and gear reducer
PE Spiral CORRUGATED Pipe Extrusion Line Technical Parameter:
Extruder | SJ-90/33 | SJ-65/30 |
Die | Ф75-250mm | Ф30-70mm |
Calibrating Tank | SBG-250 | SBG-63 |
Haul-off Machine | SLQ-250 | SLQ-63 |
Winding Machine | SQ-250 | SQ-63 |
