Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
| Place of Origin | Shangdong , China |
|---|---|
| Brand Name | QINGDAO HAUSU |
| Certification | CE IOS9001 |
| Model Number | SBG50-250 |
| Minimum Order Quantity | 1 SET |
| Price | USB 150-30000 PER SET |
| Packaging Details | NORMAL PACKAGE |
| Delivery Time | 30-100 WORKING DAYS |
| Supply Ability | 2-15 SETS PER MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Disposable Bed Sheets | Name | Single Screw Cable Protection Pipe Extrusion Line |
|---|---|---|---|
| Place Of Origin | Shangdong , China | Voltage | 380V Or Customized |
| Power(W) | According To The Model | Application | Polyethylene Tube |
| Highlight | Single Screw Cable Protection Pipe Extrusion Line,Polyethylene Cable Protection Pipe Extrusion Line,Polyethylene Tube single screw extruder |
||
Product Description
Single Screw Cable Protection Pipe Extrusion Line Polyethylene Tube
HDPE Cable Protection Pipe Extrusion Line:

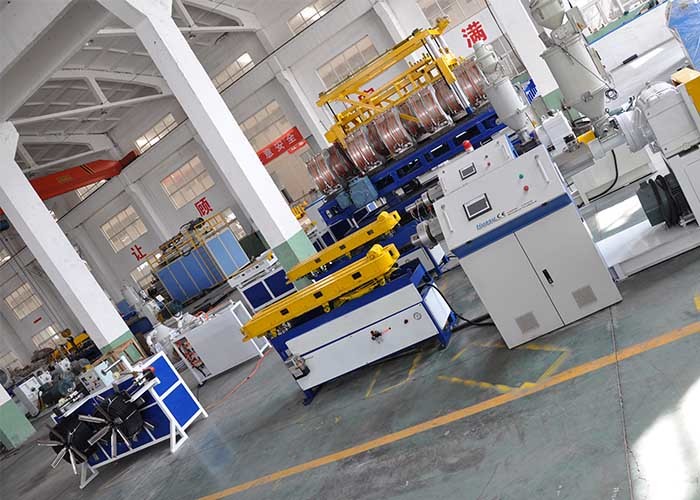

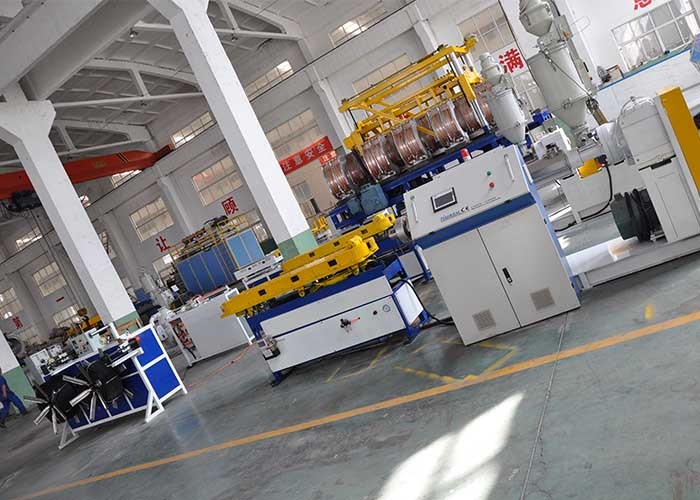

The Cable Protection Pipe Extrusion Line is composed of single screw extruder, quick extrusion die-head, gear moulding machine, nitrided forming modules and automatic winder.
The corrugated pipe forms fast and has the uniform shapes,consistent seams and smooth inner & outer wall by gear driving modules and fan cooling.
HDPE Cable Protection Pipes Extrusion Line/ Communication Cable Pipe Line Process flow:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → mound and calibrator → vacuum spray cooling tank → haul-off machine → cutting machine → winder.
HDPE Cable Protection Pipes production line design by Huasu Machinery company mainly includes single screw extruder, die, vacuum calibrating water cooling tank, haul-off machine, winding machine and cutting machine.
Single Screw Extruder:
Single screw extruder is especially used for polyethylene material which possesses effective plasticizing and high speed extrusion.
Die:
Standard designed spiral die head and reasonable channel are applicable to produce pipes with smooth inside and outside surface.
Vacuum Calibrating Water Cooling Tank:
Optimum spiral copper calibrator is equipped with pre-cooling entrance and powerful vacuum device for high speed extrusion. Unique sizing and cooling modes and special designed spraying nozzle with efficiency water cooling. It is suitable for all polyethylene material co-extrusion.
Haul-off Machine:
High accuracy, low noise and fixed length cutting.
Winding Machine:
Torque motor and gear reducer.
Main Parameters of HDPE Cable Protection/ Communication Pipe Extrusion Line:
| Model | Pipe Size | Extruder Model | Speed Screw | Output |
| PE-2 Hole | Ø20-32(mm) | SJ-90/30 | 120(r/min) | 260(kg/h) |
| PE-3 Hole | Ø20-40(mm) | SJ-90/33 | 120(r/min) | 400(kg/h) |
| PE-3 Layer | Ø20-63(mm) | SJ-65/30 *2sets | 120(r/min) | 260(kg/h) |
