Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity

  • Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity
  • Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity
  • Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity
  • Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity
  • Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity
Brand Name HUASU
Certification ISO,CE
Model Number SBG
Minimum Order Quantity 1 SET
Price USD100,000-5,000,000
Packaging Details Standard Package
Delivery Time 30-90
Payment Terms TT,L/C
Supply Ability 1000 set per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Usage Water Supply Pipe Line,electric Power Threading And Drainage Pipe Extrusion Line Type Double Wall Corrugated Pipe Extrusion Line
Capacity 8-15Kg/h Extruder Capacity 250-1000kg/h
Motor Siemens Computerized Computerized
Mould Quantiy 28/36 Dimension 29*6.8*5M
Highlight

Full Intermeshing Engagement System Extrusion Line

,

Double Wall corrugated pipe production line

,

0.7mm Barrel Nitriding Depth Extrusion Line
You can tick the products you need and communicate with us in the message board.
Production Line Model SBG180* SBG260* SBG300* SBG600* SBG800* SBG1000* SBG1200* SBG1600*
Max.pipe ID diameter(mm) 180 260 300 600 800 1000 1200 1600
Min.pipe ID diameter(mm) 32 90 100 200 200 400 600 800
Total power(kw) 225 340 360 498 730 800 880 970
No.of mould blocks 28/36 28/36 36 36 36 38 38 42
Cooling way water cooling water cooling water cooling water cooling water cooling water cooling water cooling water cooling
Chain Length(mm) 6333.5 6333.5 6333.5 6333.5 6333.5 6385.3 6385.3 7389
Length of Production Line(mm) 30000 30000 32000 33000 37000 38000 39000 41000
Width of Production Line 3000 3000 3500 5500 6800 7400 8200 9000
Height of Production Line (mm) 1000 1000 1100 1250 1400 1600 1800 1950
Corrugator weight(kg) 5000 5000 7000 11000 125000 16000 18000 20000
Center height of Corrugator 1000 1000 1100 1250 1400 1600 1800 1950
Leave a Message
Production Line Model SBG180* SBG260* SBG300* SBG600* SBG800* SBG1000* SBG1200* SBG1600*
Product Description
Automated Double Wall Corrugated Pipe Production Line
The Double Wall Corrugated Pipe Extrusion Line is a state-of-the-art automated system designed for efficient, high-quality production of double wall corrugated pipes. This computerized extrusion line incorporates advanced technology to ensure precision and reliability throughout the manufacturing process.
Product Overview
As a leading manufacturer of double wall corrugated pipe machinery, we've engineered this extrusion line to meet the most demanding industry requirements. The system is specifically optimized for producing double wall corrugated pipes used in drainage systems, cable protection, and various industrial applications.
Key Features
  • Product Name: Double Wall Corrugated Pipe Extrusion Line
  • Production Capacity: 8-15Kg/h
  • Overall Dimensions: 29*6.8*5M
  • Type: Double Wall Corrugated Pipe Extrusion Line
  • Usage: Corrugated Pipe Manufacturing
  • Control System: Siemens PLC
Technical Specifications
Barrel Nitriding Depth 0.4～0.7 mm
Barrel Hardness HV>940
Type Double Wall Corrugated Pipe Extrusion Line
Usage Corrugated Pipe
Capacity 8-15 kg/h
PLC Siemens
Gear Material 20CrMnTi
Mould Quantity 28/36
Screw Design Single-screw
Control System Computerized
Advanced Engineering
The extrusion line features a single-screw design that provides excellent control over the extrusion process, ensuring consistent output quality while simplifying operation and maintenance. The full intermeshing engagement system delivers superior material mixing and compounding for optimal pipe performance.
Applications & Industries
The HUASU SBG Double Wall Corrugated Pipe Extrusion Line is engineered for diverse applications including drainage systems, cable protection conduits, and various industrial piping solutions. With ISO and CE certifications, this machine guarantees quality compliance with international standards.
The single-screw design combined with the Siemens PLC control system enables precise adjustment of temperature, speed, and pressure parameters, ensuring consistent pipe quality and dimensional accuracy across all production runs.
Production Line Visuals

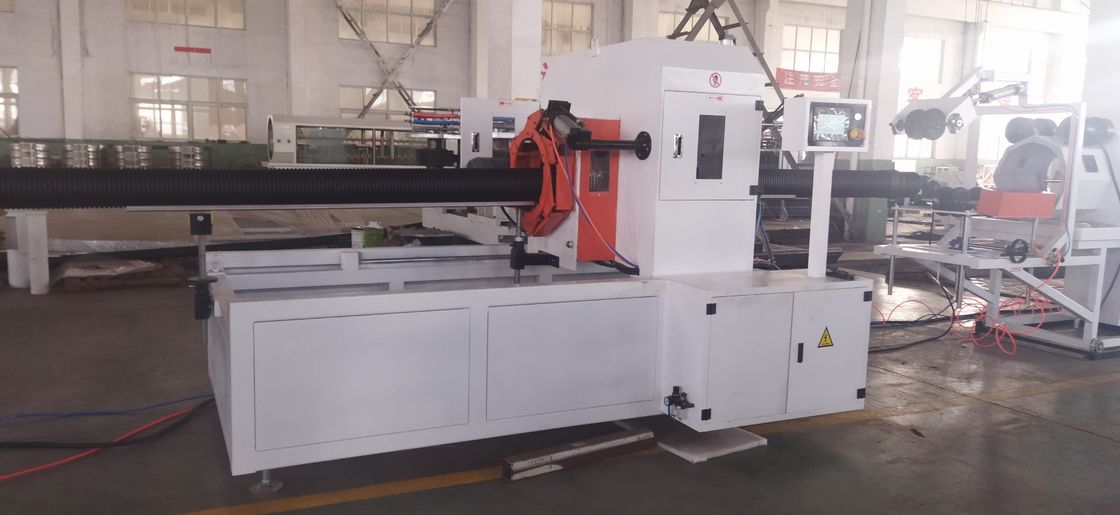

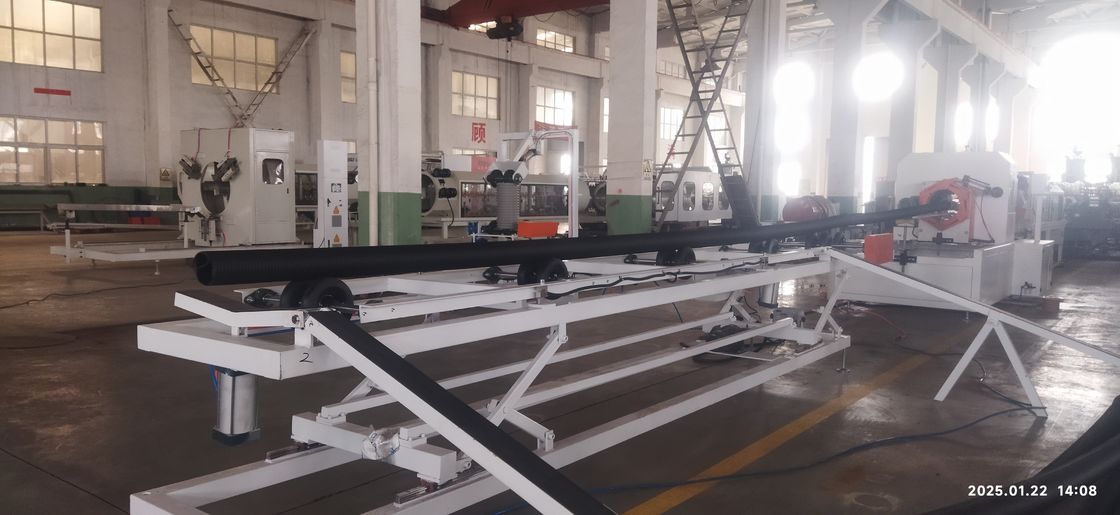

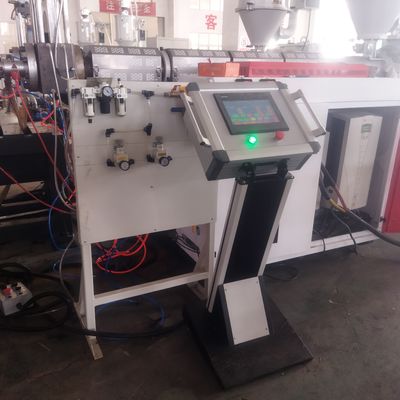

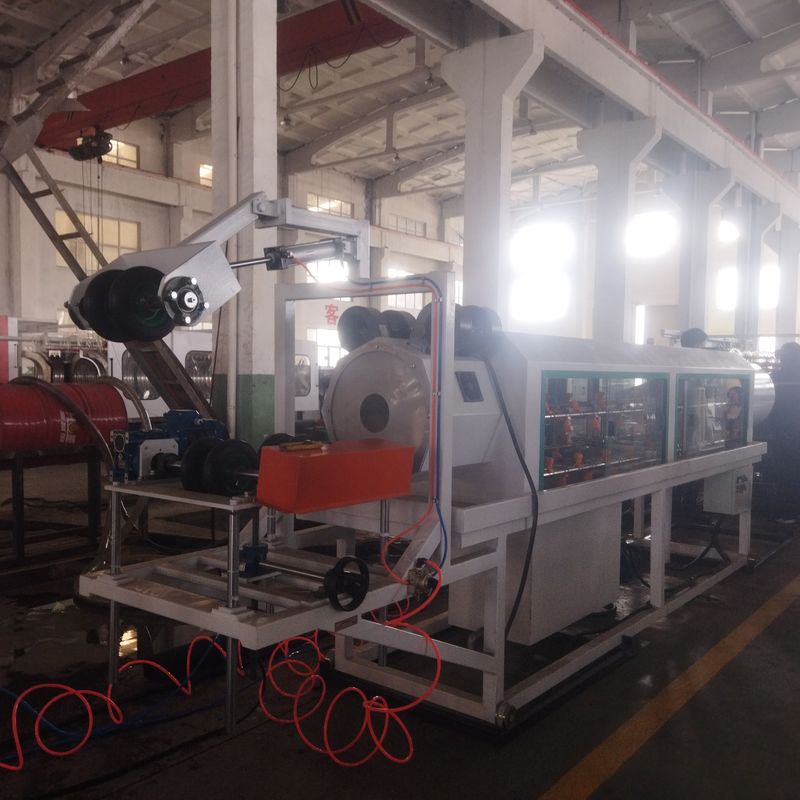

Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity 0 Automated Computerized Double Wall Corrugated Pipe Extrusion Line with Siemens Motor and 8-15Kg/h Capacity 1
