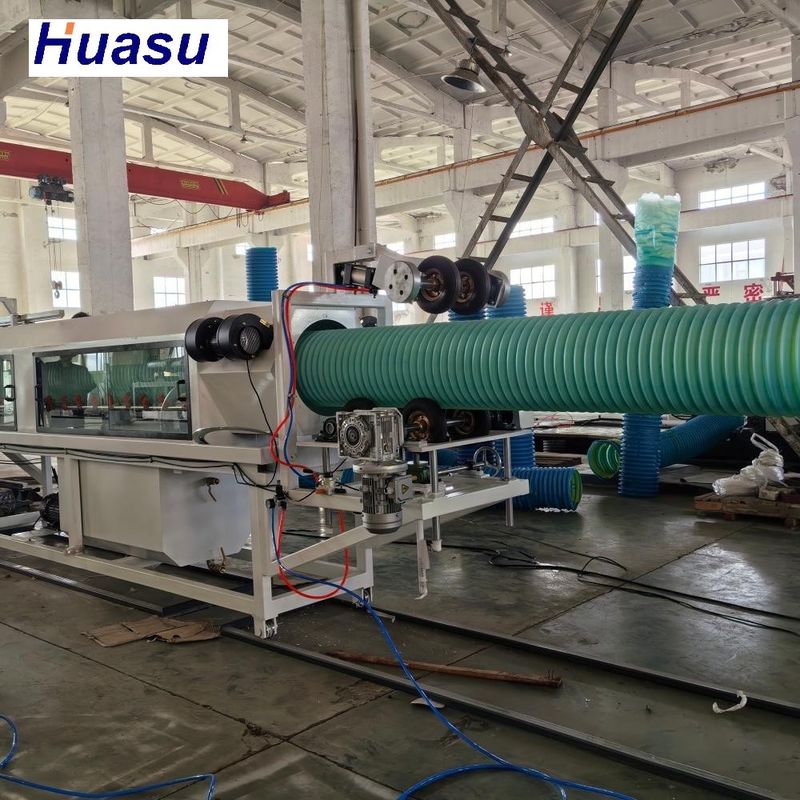

Customizable Double Wall Corrugated Pipe Extrusion Line with 32-1600mm Diameter and Planetary Cutting System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Plastic Pipe,Double Wall Corrugated Pipe,Pe Film,sewage Pipe | Application | Pipe,PIPE EXTRUSION LINE,Wire,Drain Pipe Or Swage Pipe |
|---|---|---|---|
| Screw Ratio | 36:1 | Expansion Mode | Belling-on-line |
| Warranty | 1 Year | Diameter | 32-1600mm |
| Screw | Single-screw | Die Head Material | High Quality Alloy Steel |
| Usage | Water Pipe,Wide Usage,plastic Pipe,Gas Pipe,corrugated Pipe | Screw Type | Single Screw |
| Gear Type | Helical Gear | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service |
| Automatic Grade | Automatic,Full-Automatic,Semi-Auto,Auto | Plastic Processed | PE,PVC,HDPE,PP,hdpe Pp Pe Pvc |
| Screw Design | Single-screw,Double-screw,Single-Screw Or Twin-Screw,Single-screw Or Double Screw | Voltage | 380V 50HZ 3Phase(Customized),380V/220V,380-440V,380v,220V |
| Weight | 2-10T,20T,30T,10T,5000KGS | Dimension(l*w*h) | 20mx2.5mx2.2m,37500*3000*2200mm,400000*6000*4000,24x4.1x2.8,BASED |
| Power(w) | 150KW,different,depend,690kw,55kw | Name | Corrugated Pipe Production Line Plastic Machine,Double Wall Corrugated Pipe Line,PVC PE PP Corrugated Pipe Production Line Extrusion Machine,PE/PP/HDPE Double-wall Corrugated Pipe Making Machine,PVC Double Layer Corrugated Pipe Extrusion Line/Double Wall |
| Raw Material | PP PE PA EVA,stainless Steel,PE,Hdpe/PP Pellets,PE/HDPE/LDPE New Or Recycled | Processing Type | Other,two Extruder Co-extrusion,Extrusion Blowing Machine,Extruding Machine,Pipe Extrusion |
| Inverter | ABB,ABB Frequency Controller | Contactor | Siemens,Schnerder,SCHNEIDER Extrusion Line For PE Pipe |
| Highlight | 1600mm Corrugated Pipe Machine,Customizable Corrugated Pipe Machine,32mm corrugated pipe production line |
||
Product Description
Customizable Corrugated Pipe Machine for 32-1600mm Diameter
Product Overview

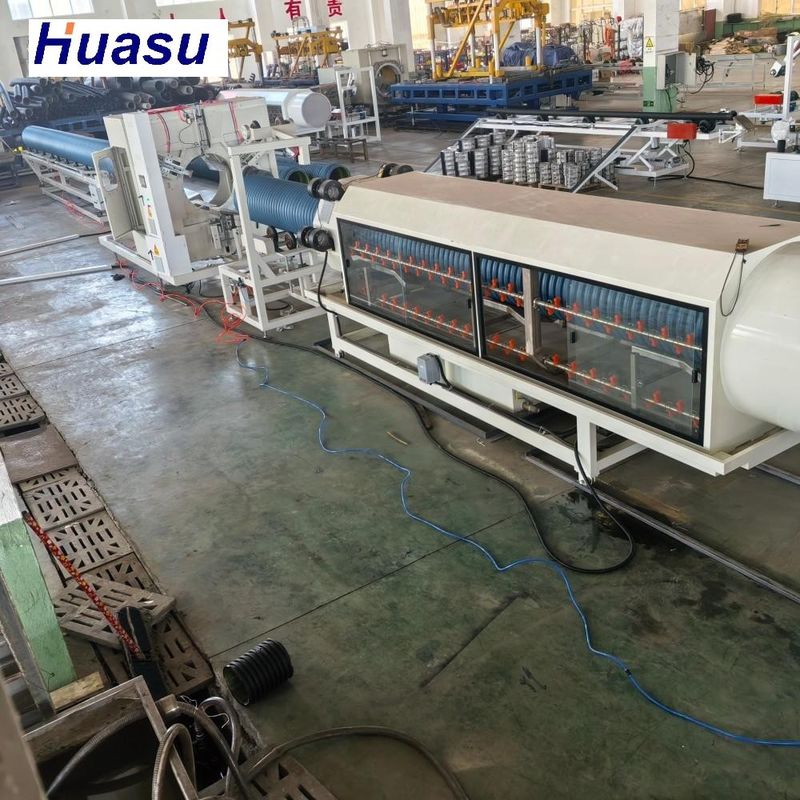

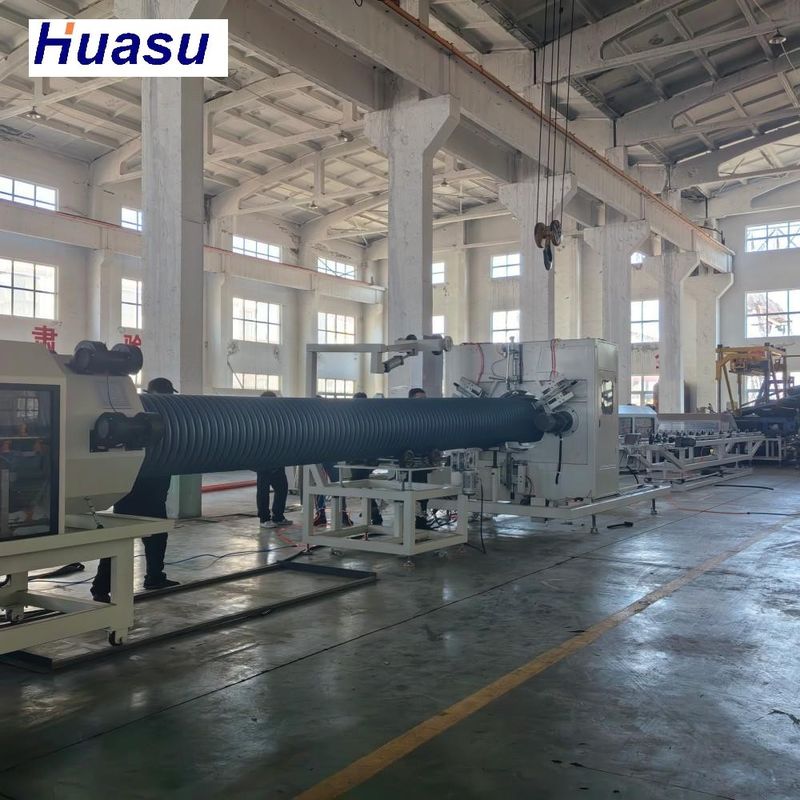

The Double Wall Corrugated Pipe Extrusion Line is a state-of-the-art manufacturing system designed for producing high-quality double wall corrugated pipes. This advanced plastic pipe production equipment features precision engineering for optimal performance and manufacturing efficiency.
Key Features
- Pressure water-cooling system for mould blocks significantly increases production speed
- Energy-efficient design reduces operational costs
- Advanced vacuum system ensures perfect pipe formation
- Precise mould block temperature control optimizes pipe quality and structure
- Quick changeover capability between different mould sizes
- Fully automated operation for streamlined production
- Synchronous control between corrugators and extruders
- Hardened treated screws and barrels for extended equipment lifespan
- Remote service support available
Technical Specifications
| Gear Type | Helical Gear |
| Installed Power | 520kW |
| Die Head Material | High Quality Alloy Steel |
| Screw Type | Single Screw |
| Expansion Mode | Belling-on-line |
| Cooling Method | Water or Air |
| Output Capacity | 100-2000 Kg/h |

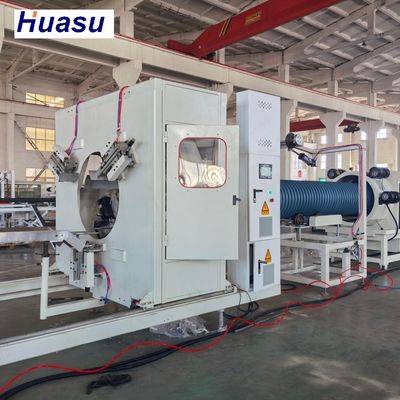

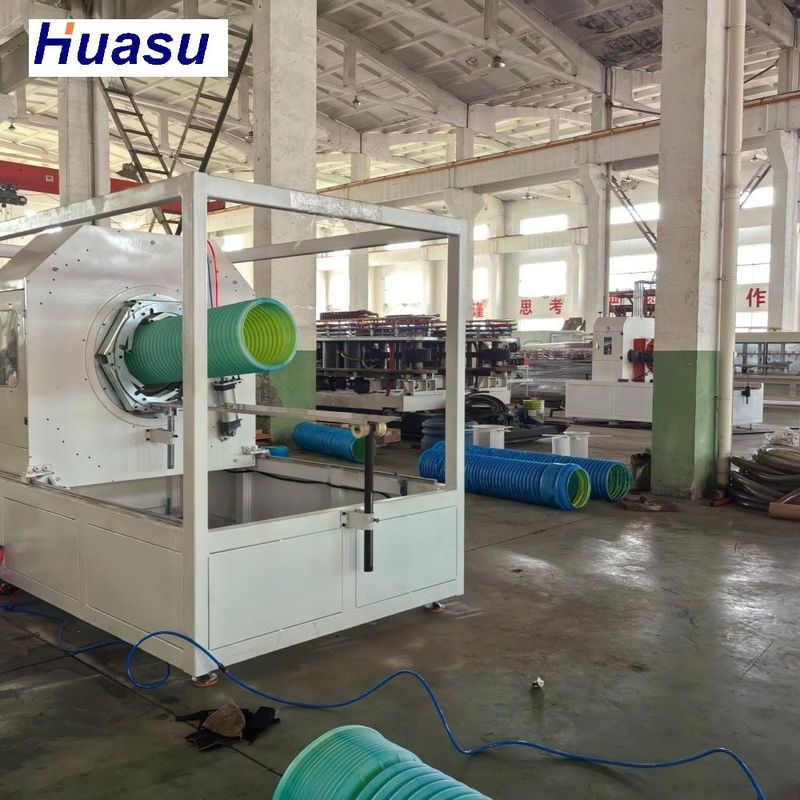

| Cutting Type | Planetary Cutting |
| Inner Diameter Range | 32mm-1600mm |
| Warranty | 1 Year |
Applications
The HUASU Double Wall Corrugated Pipe Extrusion Line (Model: SBG) is ideal for various industrial applications including drainage systems, underground cable protection, and sewage pipelines. ISO and CE certified for quality assurance, this equipment offers flexible production capabilities suitable for projects of all scales.
Manufacturer: Shandong HUASU Plastic Technology Co., Ltd.
Location: Jiaozhou, Qingdao, Shandong, China
