32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting

  • 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting
  • 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting
  • 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting
  • 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting
  • 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting
Brand Name HUASU
Certification ISO,CE
Model Number SBG
Minimum Order Quantity 1 SET
Price US$50,000-5,000,000
Packaging Details Standard Package
Delivery Time 30-90Day
Payment Terms L/C,T/T,D/P,D/A,Western Union,MoneyGram
Supply Ability 100 Line

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Ratio 36:1 Diameter 32-1600mm
Corrugator Double Wall Cottugated Pipe And Socket Online Cutting Type Planetary Cutting
Inner Diameter 32mm-1600mm Die Head Material High Quality Alloy Steel
Barrel Hardness Of Barrel HV>940 Output 100-2000 Kg/h
Highlight

1600mm corrugated pipe extruder

,

Single Screw corrugated pipe extruder

,

HDPE corrugated pipe extruder Machine
You can tick the products you need and communicate with us in the message board.
Production Line Model SBG180* SBG260* SBG300* SBG600* SBG800* SBG1000* SBG1200* SBG1600*
Max.pipe ID diameter(mm) 180 260 300 600 800 1000 1200 1600
Min.pipe ID diameter(mm) 32 90 100 200 200 400 600 800
Total power(kw) 225 340 360 498 730 800 880 970
No.of mould blocks 28/36 28/36 36 36 36 38 38 42
Cooling way water cooling water cooling water cooling water cooling water cooling water cooling water cooling water cooling
Chain Length(mm) 6333.5 6333.5 6333.5 6333.5 6333.5 6385.3 6385.3 7389
Length of Production Line(mm) 30000 30000 32000 33000 37000 38000 39000 41000
Width of Production Line 3000 3000 3500 5500 6800 7400 8200 9000
Height of Production Line (mm) 1000 1000 1100 1250 1400 1600 1800 1950
Corrugator weight(kg) 5000 5000 7000 11000 125000 16000 18000 20000
Center height of Corrugator 1000 1000 1100 1250 1400 1600 1800 1950
Leave a Message
Production Line Model SBG180* SBG260* SBG300* SBG600* SBG800* SBG1000* SBG1200* SBG1600*
Product Description

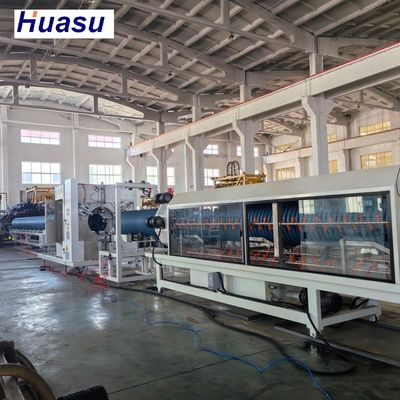

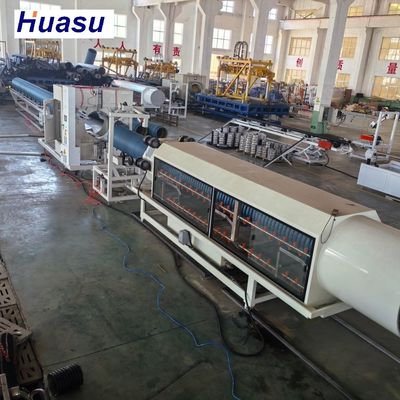

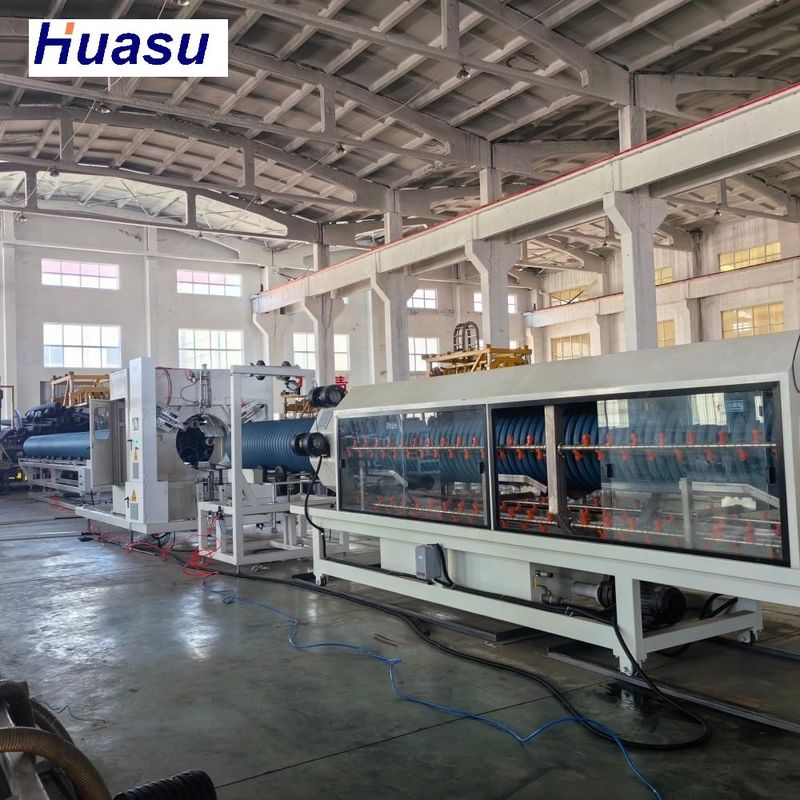

32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine
Advanced Single Screw Technology
This state-of-the-art double wall corrugated pipe extrusion line efficiently produces high-quality pipes with precision and reliability. Featuring a single-screw design with helical gear technology, the machine ensures smooth operation throughout the production process.
Key Features
  • Pressure water-cooling for mould blocks enhances production speed
  • Low energy consumption reduces operational costs
  • Efficient vacuum system ensures perfect pipe formation
  • Precise mould block temperature control optimizes quality
  • Quick and easy mould size switching with cross-line compatibility
  • Fully automated operation for consistent performance
  • Synchronized control between corrugator and extruders
  • Hardened screw and barrels for extended durability
  • Remote service support for maintenance convenience
Technical Specifications
Parameter Specification
Installed Power 520kW
Screw Ratio 36:1
Output Capacity 100-2000 Kg/h
Screw Type Single Screw
Inner Diameter Range 32mm-1600mm
Warranty 1 Year
Expansion Mode Belling-on-line

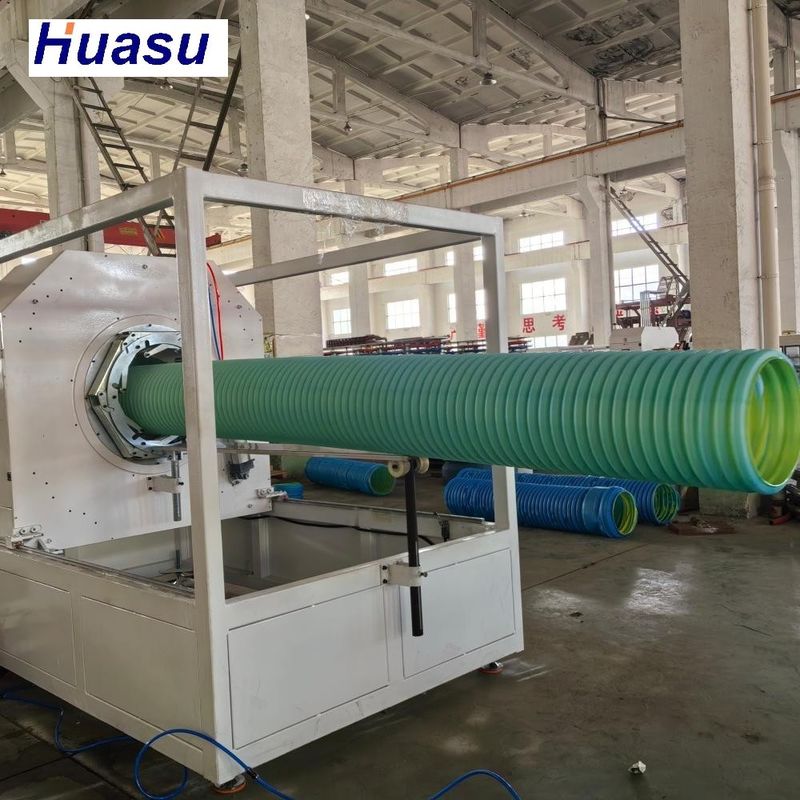

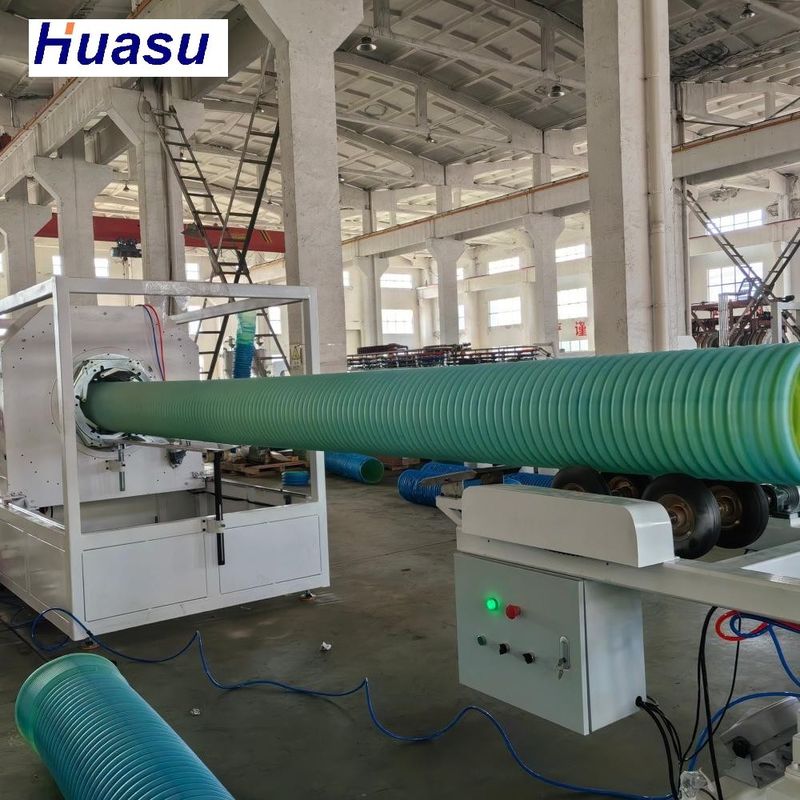

Cutting Type Planetary Cutting
Applications
Ideal for construction, plumbing, and agricultural industries requiring reliable production of double wall corrugated pipes. This ISO and CE certified equipment supports both small and large-scale operations with diameters ranging from 32mm to 1600mm.
32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 0 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 1 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 2 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 3 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 4 32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine with Single Screw Technology and Planetary Cutting 5
