32-1600mm Diameter HDPE Corrugated Pipe Extruder Machine With Single Screw Technology
| Brand Name | HUASU |
|---|---|
| Certification | ISO,CE |
| Model Number | SBG |
| Minimum Order Quantity | 1 SET |
| Price | US$50,000-5,000,000 |
| Packaging Details | Standard Package |
| Delivery Time | 30-90Day |
| Payment Terms | L/C,T/T,D/P,D/A,Western Union,MoneyGram |
| Supply Ability | 100 Line |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Ratio | 36:1 | Diameter | 32-1600mm |
|---|---|---|---|
| Corrugator | Double Wall Cottugated Pipe And Socket Online | Cutting Type | Planetary Cutting |
| Inner Diameter | 32mm-1600mm | Die Head Material | High Quality Alloy Steel |
| Barrel | Hardness Of Barrel HV>940 | Output | 100-2000 Kg/h |
| Highlight | 1600mm corrugated pipe extruder,Single Screw corrugated pipe extruder,HDPE corrugated pipe extruder Machine |
||
You can tick the products you need and communicate with us in the message board.
| Production Line Model | SBG180* | SBG260* | SBG300* | SBG600* | SBG800* | SBG1000* | SBG1200* | SBG1600* | |
|---|---|---|---|---|---|---|---|---|---|
| Max.pipe ID diameter(mm) | 180 | 260 | 300 | 600 | 800 | 1000 | 1200 | 1600 | |
| Min.pipe ID diameter(mm) | 32 | 90 | 100 | 200 | 200 | 400 | 600 | 800 | |
| Total power(kw) | 225 | 340 | 360 | 498 | 730 | 800 | 880 | 970 | |
| No.of mould blocks | 28/36 | 28/36 | 36 | 36 | 36 | 38 | 38 | 42 | |
| Cooling way | water cooling | water cooling | water cooling | water cooling | water cooling | water cooling | water cooling | water cooling | |
| Chain Length(mm) | 6333.5 | 6333.5 | 6333.5 | 6333.5 | 6333.5 | 6385.3 | 6385.3 | 7389 | |
| Length of Production Line(mm) | 30000 | 30000 | 32000 | 33000 | 37000 | 38000 | 39000 | 41000 | |
| Width of Production Line | 3000 | 3000 | 3500 | 5500 | 6800 | 7400 | 8200 | 9000 | |
| Height of Production Line (mm) | 1000 | 1000 | 1100 | 1250 | 1400 | 1600 | 1800 | 1950 | |
| Corrugator weight(kg) | 5000 | 5000 | 7000 | 11000 | 125000 | 16000 | 18000 | 20000 | |
| Center height of Corrugator | 1000 | 1000 | 1100 | 1250 | 1400 | 1600 | 1800 | 1950 |
Product Description
32-1600mm Diameter HDPE Pipe Machine with Single Screw Technology
Product Description:

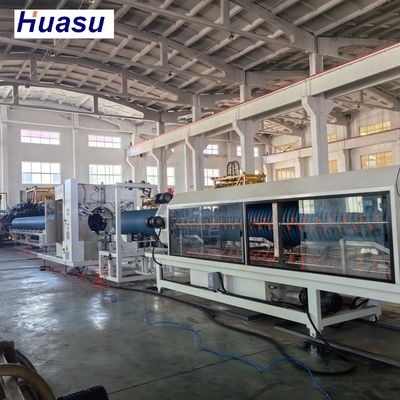

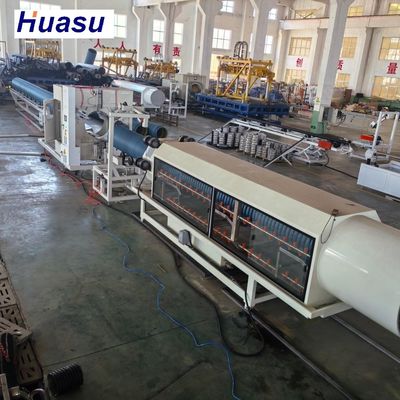

The Double Wall Corrugated Pipe Extrusion Line is a cutting-edge machine designed to efficiently produce high-quality double wall corrugated pipes. This state-of-the-art extrusion line features a single-screw design with a helical gear type, ensuring smooth and reliable operation throughout the production process.
With a screw ratio of 36:1, this extrusion line offers excellent control over the extrusion process, allowing for precise shaping and sizing of the double wall corrugated pipes. The use of helical gear type further enhances the efficiency and durability of the machine, ensuring consistent performance over time.

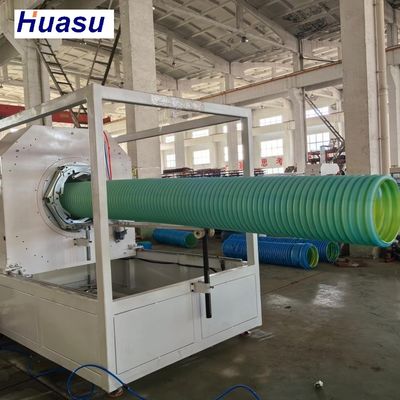

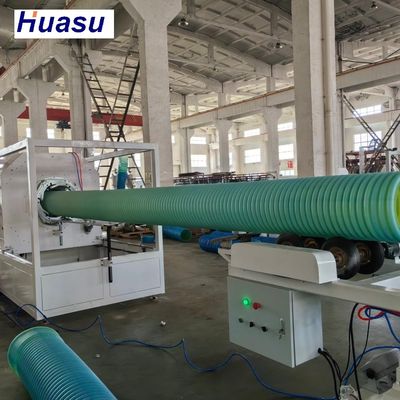

The corrugator included in this extrusion line is specifically designed for double wall corrugated pipes and socket online production. This feature allows for the seamless creation of double wall corrugated pipes with precise dimensions and uniform corrugation patterns, meeting the highest quality standards.
When it comes to cooling, the Double Wall Corrugated Pipe Extrusion Line offers flexibility with two cooling options: water or air cooling. This versatility enables operators to choose the most suitable cooling method based on their specific production requirements, ensuring optimal cooling efficiency and product quality.
Overall, the Double Wall Corrugated Pipe Extrusion Line is a reliable and efficient solution for manufacturers looking to streamline their production of double wall corrugated pipes. Whether producing HDPE pipes or other materials, this extrusion line provides a comprehensive solution for corrugated pipe extrusion production, delivering consistent quality and performance.
Features:
Pressure water-cooling is implemented for the mould blocks, which significantly boosts the production speed.
There is a focus on low energy consumption, aiding in reducing production costs.
An efficient vacuum system is utilized to ensure the formation of perfect pipes.
The mould block temperature control system plays a crucial role in optimizing the quality of the pipes both in appearance and internally.
Switching between different sizes of moulds is made easy and quick. Additionally, the toolings (moulds) are compatible with various production lines.
The complete extrusion line operates fully automatically.
Both the corrugator and extruders are synchronously controlled for optimal performance.
The screw and barrels are hardened for extended lifespan and durability.
Remote service support is available for enhanced convenience.
Technical Parameters:
| Installed Power | 520kW |
| Screw Ratio | 36:1 |
| Output | 100-2000 Kg/h |
| Screw Type | Single Screw |
| Inner Diameter | 32mm-1600mm |
| Warranty | 1 Year |
| Screw | Single-screw |
| Expansion Mode | Belling-on-line |
| Cutting Type | Planetary Cutting |
| Diameter | 32-1600mm |
Applications:
When considering the Product Application Occasions and Scenarios for the HUASU SBG Double Wall Corrugated Pipe Extrusion Line from China, various factors come into play. This Plastic Pipe Manufacturing Equipment is ideal for industries looking for reliable and efficient machinery to produce double wall corrugated pipes. The automatic Double Wall Corrugated Pipe Machine is versatile and can be used in a range of scenarios.
With ISO and CE certifications, this Double Wall Corrugated Pipe Processing Equipment guarantees high-quality output. The minimum order quantity of 1 SET makes it accessible for both small and large scale operations. The price range of US$50,000-5,000,000 reflects the advanced technology and features offered by this equipment.
The standard packaging details ensure safe delivery of the product, which has a delivery time of 30-90 days. Payment terms include TT and L/C, providing flexibility to customers. With a supply ability of 100 lines, the HUASU SBG Extrusion Line is readily available for purchase.
Equipped with expansion mode Belling-on-line, a single-screw design, and planetary cutting, this machine is designed for efficiency and precision. The diameter range of 32-1600mm caters to a wide range of pipe manufacturing needs. The screw ratio of 36:1 further enhances the performance of the equipment.
Whether you are in the construction, plumbing, or agricultural industry, the HUASU SBG Double Wall Corrugated Pipe Extrusion Line is a reliable choice for producing high-quality pipes. Invest in this advanced machinery to streamline your production process and meet market demands effectively.
