PVC Corrugated Pipe Machine with 32-1600mm Pipe Diameter Double-layer Spiral Co-extrusion and Siemens PLC System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Speed (m/min) | 1.5-5m/min | Total Power(kw) | 200-1000kw |
|---|---|---|---|
| Pipe Diameter(mm) | 32-1600mm | Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| HDPE Output | 40-1600kg/h | Cooling System | Complete Inner Cooling System. |
| Forming | Vacuum Forming | Die Head | Double-layer Spiral Co-extrusion |
| Highlight | PVC Corrugated Pipe Production Line,1600mm PVC Corrugated Pipe Production Line,32mm id corrugated pipe extruder |
||
Product Description
PVC Corrugated Pipe Production Line
Advanced manufacturing equipment for producing PVC corrugated pipes with diameters ranging from 32mm ID to 1600mm OD
Product Overview
This third-generation corrugated pipeline from Shandong HUASU delivers significant performance improvements with 20-40% increases in extruder output and production speed compared to previous models. The integrated online belling system ensures consistent performance of manufactured corrugated pipes.
Advanced Control System
Features Siemens PLC system integration for high-quality performance and efficient operations, guaranteeing enhanced productivity and reliability through improved design and advanced technology.
Key Features

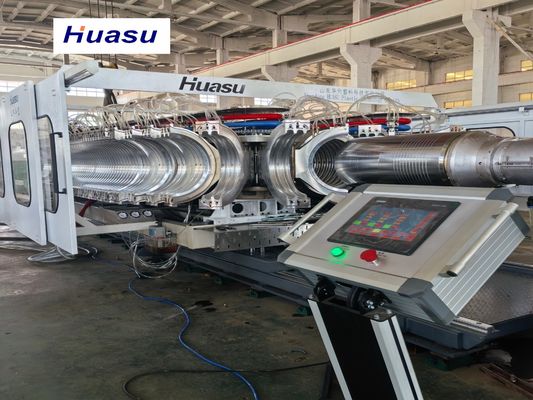

- Newly designed closed molding machine with high-efficiency cooling system for aluminum modules
- High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mould design
- Excellent modularity using LY12 high-quality alloy aviation aluminum with 5% copper content
- Precision pressure casting ensures high density and eliminates light pores
- Resists deformation even after long-term use
- Customizable module waveform schemes based on user requirements

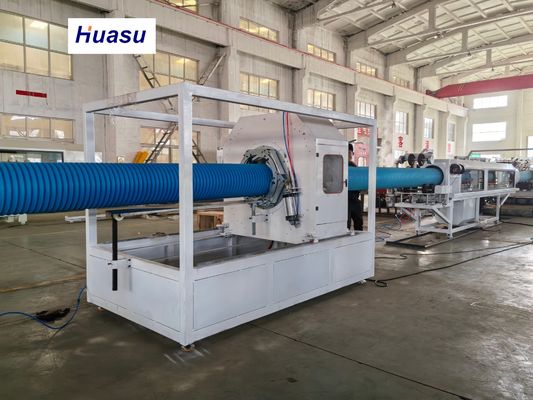

- Automatic DWC cutter with computerized control for precise cutting
Technical Specifications
| Parameter | Specification |
|---|---|
| Pipe Diameter | 32-1600mm |
| Maximum Speed | 1.5-5 m/min |
| Pipe Functions | Cable Protection Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Cooling System | Complete Inner Cooling System |
| HDPE Output | 40-1600 kg/h |
| Forming Method | Vacuum Forming |
| Corrugator Structure | Horizontal Structure, Easy Size Change |
| Total Power | 200-1000 kW |
| Die Head | Double-layer Spiral Co-extrusion |
Applications
This corrugated pipe extrusion machine produces pipes with outer diameters from 32mm to 1600mm, suitable for various applications including cable protection covers and medical transfer pipes for smaller sizes, and gas/water transfer applications for larger sizes.
