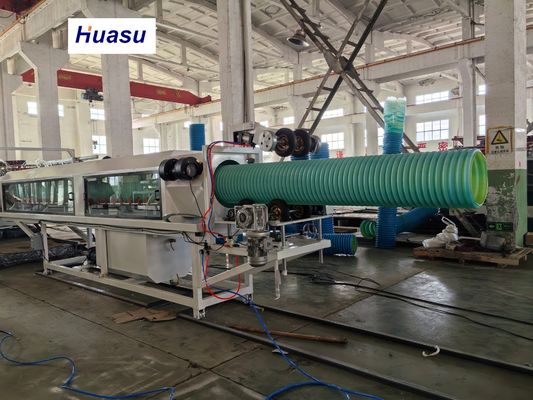

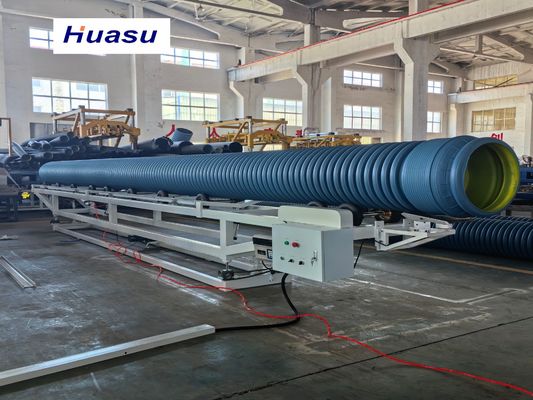

32-1600mm Pipe Diameter Corrugated Pipe Extrusion Line with Double-layer Spiral Co-extrusion and Siemens PLC System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Forming | Vacuum Forming | Die Head | Double-layer Spiral Co-extrusion |
|---|---|---|---|
| HDPE Output | 40-1600kg/h | Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Pipe Diameter(mm) | 32-1600mm | Cooling System | Complete Inner Cooling System. |
| Max Speed (m/min) | 1.5-5m/min | Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer |
| Highlight | PA Corrugated Conduit Making Machine,PP Corrugated Conduit Making Machine,PE Corrugated Conduit Making Machine |
||
Product Description
PE / PP / PA / PVC Corrugated Conduit Making Machine / Extrusion Production Line
This advanced corrugated pipe production line represents the 3rd generation of improved products from Shandong HUASU. The system delivers significantly enhanced performance with extruder output and production speed increased by 20-40% compared to previous models. The line features online belling capability to ensure optimal performance of finished corrugated pipe products and utilizes Siemens PLC system for reliable automation.
Key Features

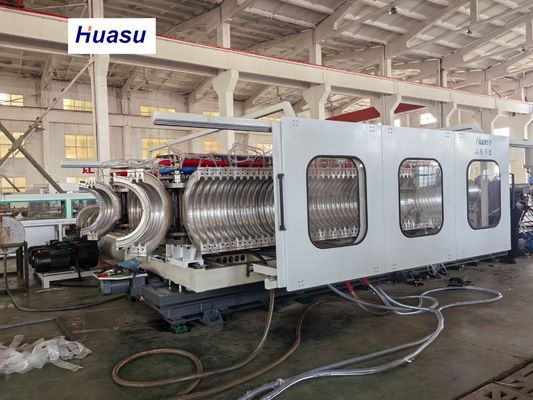

- Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum corrugated pipe modules
- Single-screw extrusion machine with professionally designed corrugated pipe extrusion mould for stable, high-volume production
- Excellent module interchangeability using LY12 high-quality alloy aviation aluminum (copper content ≥ 5%)
- Precision pressure casting process ensures high-density material with no visible pores and long-term deformation resistance
- Customizable module waveform schemes based on user requirements
- Automatic DWC cutter with computer control for precise cutting, stable operation, and user-friendly interface
Technical Specifications
| Parameter | Specification |
|---|---|
| Pipe Function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Forming Method | Vacuum Forming |
| Pipe Diameter | 32-1600mm |
| Die Head | Double-layer Spiral Co-extrusion |
| Maximum Speed | 1.5-5m/min |
| Cooling System | Complete Inner Cooling System |
| HDPE Output | 40-1600kg/h |
| Total Power | 200-1000kW |
| Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
Applications
This corrugated pipe extrusion machine produces pipes with outer and inner diameters ranging from 32mm to 1600mm. The pipes are widely used as cable protection covers and medical transfer pipes (smaller sizes), as well as for gas and water transfer applications (larger sizes).
