Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming

Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming

Corrugated PVC Making Machine

Double-layer corrugated pipe extrusion line

HDPE corrugated pipe extrusion line

Brand Name:

HUASU

Certification:

CE,ISO,UL,QS,GMP

Model Number:

SBG

Contact Us
Request A Quote
Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming
Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming
Product Details
Pipe Diameter(mm):
32-1600mm
Total Power(kw):
200-1000kw
Forming:
Vacuum Forming
Pipe Function:
Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer
Max Speed (m/min):
1.5-5m/min
HDPE Output:
40-1600kg/h
Cooling System:
Complete Inner Cooling System.
Structure Corrugator:
Horizontal Structure Corrugator, Easy Change Production Size
Highlight:

Corrugated PVC Making Machine

,

Double-layer corrugated pipe extrusion line

,

HDPE corrugated pipe extrusion line

Payment & Shipping Terms
Minimum Order Quantity
1 Line
Price
USD10k-1000k
Packaging Details
STANDARD Package
Delivery Time
90day
Payment Terms
TT,LC
Supply Ability
100 Line
RELATED PRODUCTS
Good price Customizable PVC Corrugated Pipe Manufacturing Line with 60-2000kg/h Capacity and 32-1600mm Pipe Diameter for Online Belling online Video

Customizable PVC Corrugated Pipe Manufacturing Line with 60-2000kg/h Capacity and 32-1600mm Pipe Diameter for Online Belling

Get Best Price
Good price 32-1600mm Automatic PVC Pipe Extrusion Line with Siemens PLC System for Double Wall Corrugated Pipe Production online Video

32-1600mm Automatic PVC Pipe Extrusion Line with Siemens PLC System for Double Wall Corrugated Pipe Production

Get Best Price
Good price 60-2000kg/h Capacity 32-1600mm Pipe Diameter PVC Corrugated Pipe Extrusion Machine With Online Cutting Procedure online Video

60-2000kg/h Capacity 32-1600mm Pipe Diameter PVC Corrugated Pipe Extrusion Machine With Online Cutting Procedure

Get Best Price
Good price High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production online Video

High Capacity 60-2000kg/h PVC Pipe Extrusion Line with Siemens PLC System for 32-1600mm Corrugated Pipe Production

Get Best Price
CONTACT US
Contact Now
Product Description

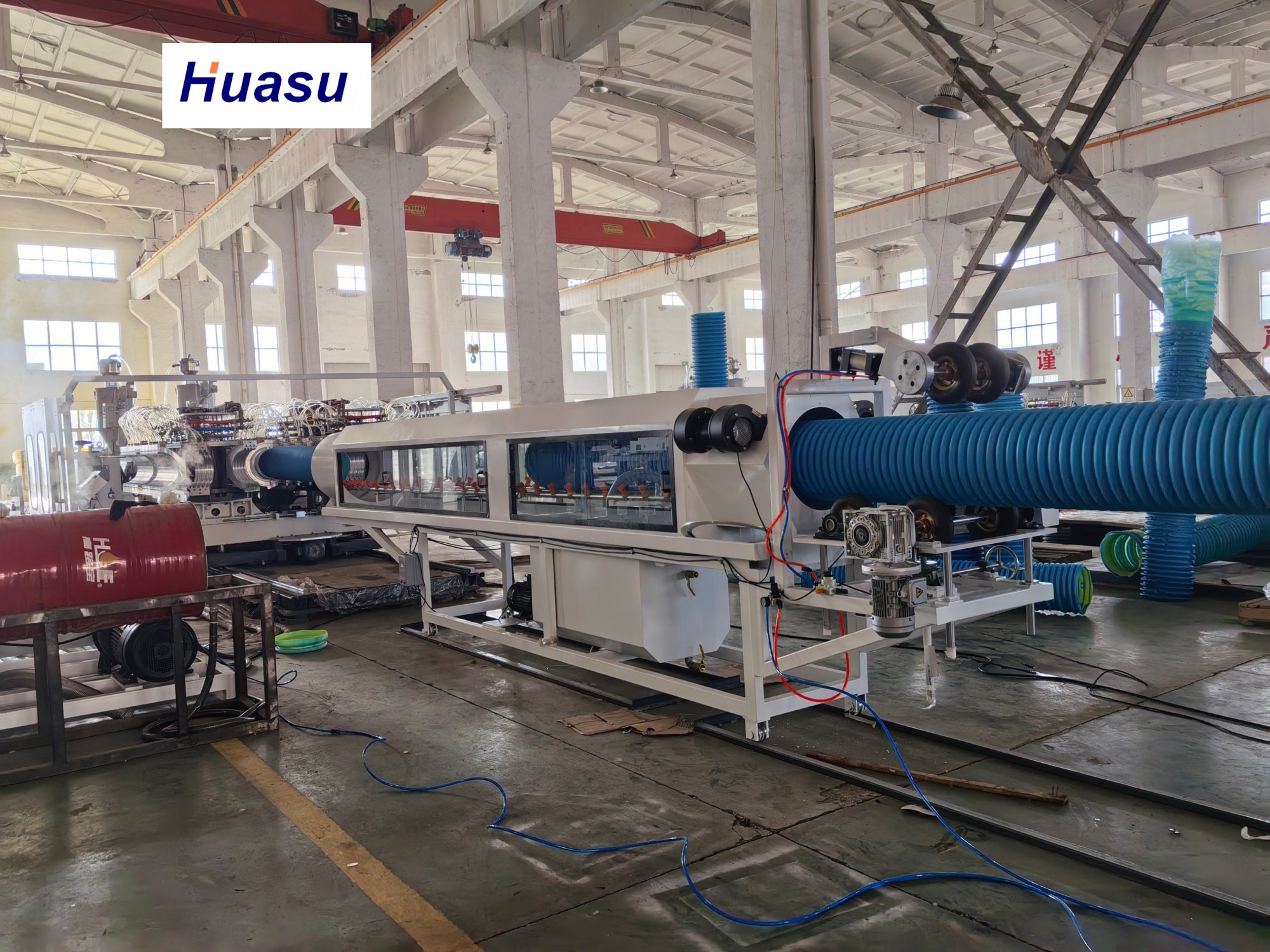

Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
Advanced Corrugated Pipe Production Line

This third-generation corrugated pipe production line represents Shandong HUASU's latest improvements, delivering exceptional performance enhancements. The extruder output and production speed have been increased by 20-40% compared to previous models.

The system features integrated online belling capabilities to ensure optimal performance of finished corrugated pipe products and utilizes the advanced Siemens PLC system for precise control and automation.

Key Features & Advantages
  • Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum modules
  • Enhanced cooling efficiency for superior corrugated pipe production quality
  • High-speed, high-output single-screw extrusion machine with professionally designed corrugated pipe extrusion mold
  • Consistently stable large-scale extrusion capabilities
  • Excellent module interchangeability using LY12 high-quality alloy aviation aluminum material
  • Copper content of at least 5% ensures durability and performance
  • Precision pressure casting creates high-density modules free of light pores
  • Long-term deformation resistance and reliability
  • Customizable module waveform schemes to meet specific user requirements

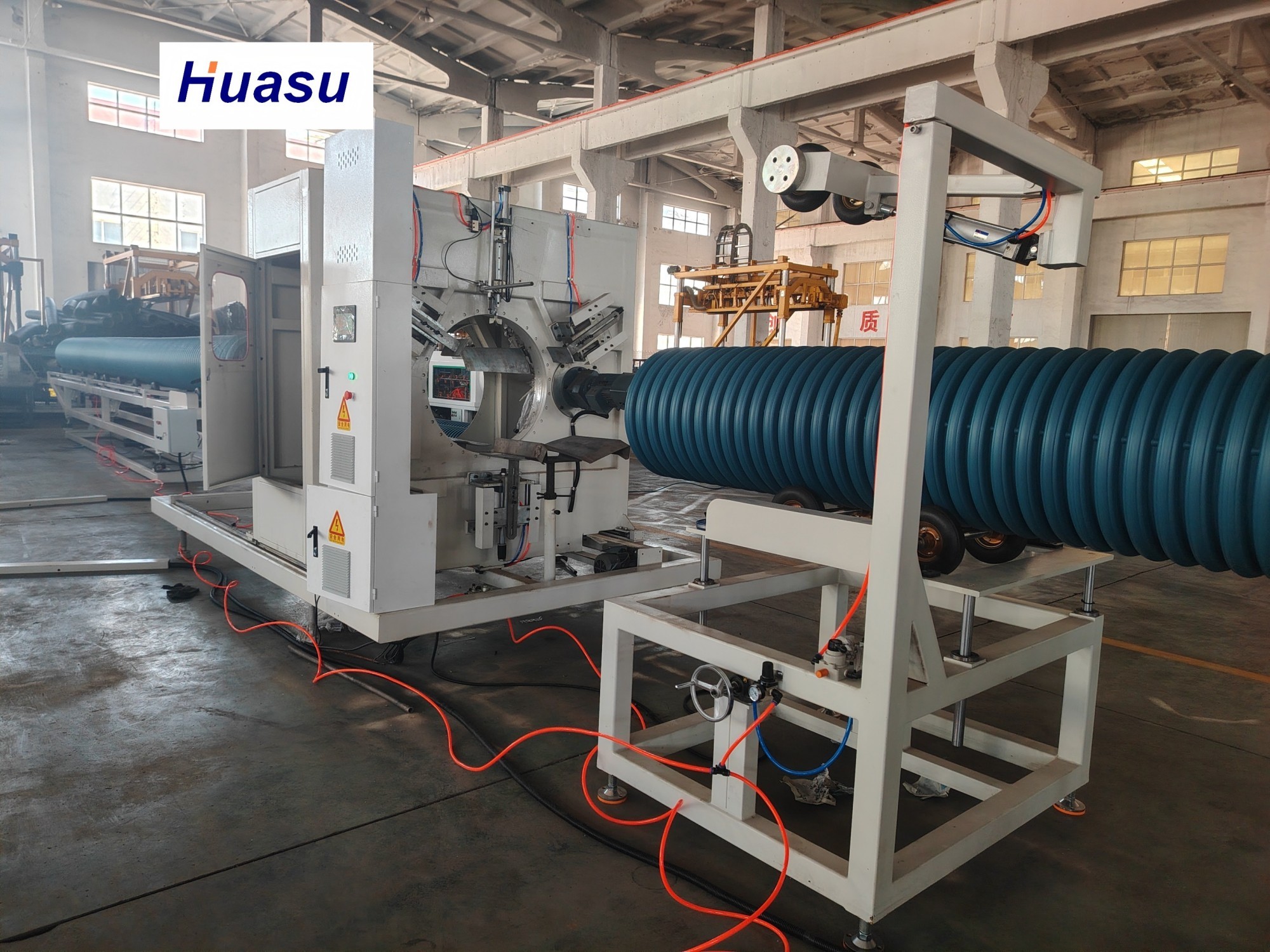

  • Integrated computer-controlled automatic DWC cutter for precise cutting positions
  • Stable operation and user-friendly interface
Technical Specifications
Maximum Speed 1.5-5 m/min
Die Head Double-layer Spiral Co-extrusion
Forming Method Vacuum Forming
Corrugator Structure Horizontal Structure, Easy Size Change
Pipe Functions Cable Protection, Medical Transfer, Gas Transfer, Water Transfer
HDPE Output 40-1600 kg/h
Cooling System Complete Inner Cooling System
Total Power 200-1000 kW
Pipe Diameter Range 32-1600 mm
Applications & Industries

This versatile corrugated pipe extrusion machine produces pipes with outer diameters ranging from 32mm to 1600mm and corresponding inner diameters. These high-performance pipes serve diverse industrial applications:

  • Small diameter applications: Cable protection covers and medical transfer tubes
  • Large diameter applications: Gas and water transfer systems
  • Various industrial purposes requiring durable, flexible piping solutions
