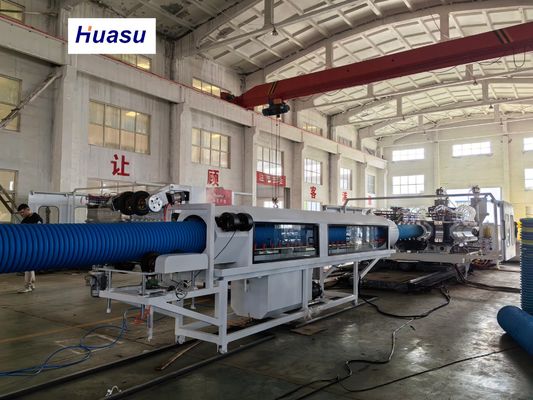

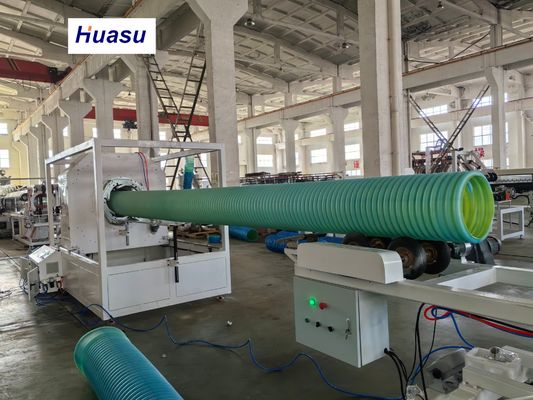

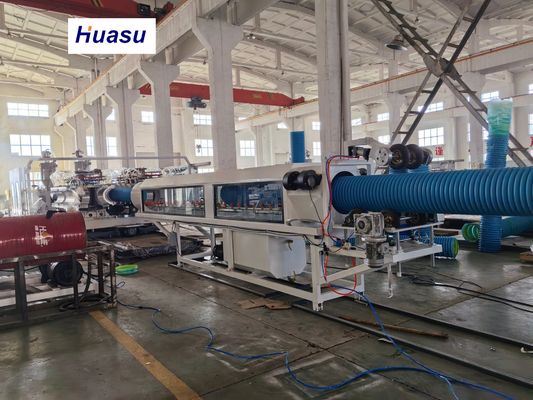

Double Wall Corrugated Pipe Making Machine with 32-1600mm Pipe Diameter, Siemens PLC System, and Vacuum Forming
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter(mm) | 32-1600mm | Total Power(kw) | 200-1000kw |
|---|---|---|---|
| Forming | Vacuum Forming | Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer |
| Max Speed (m/min) | 1.5-5m/min | HDPE Output | 40-1600kg/h |
| Cooling System | Complete Inner Cooling System. | Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Highlight | Corrugated PVC Making Machine,Double-layer corrugated pipe extrusion line,HDPE corrugated pipe extrusion line |
||
Product Description
Double-layer / Double Wall Corrugated PVC / HDPE / PP Making Machine
Advanced Corrugated Pipe Production Line
This third-generation corrugated pipe production line represents Shandong HUASU's latest improvements, delivering exceptional performance enhancements. The extruder output and production speed have been increased by 20-40% compared to previous models.
The system features integrated online belling capabilities to ensure optimal performance of finished corrugated pipe products and utilizes the advanced Siemens PLC system for precise control and automation.
Key Features & Advantages
- Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum modules
- Enhanced cooling efficiency for superior corrugated pipe production quality
- High-speed, high-output single-screw extrusion machine with professionally designed corrugated pipe extrusion mold
- Consistently stable large-scale extrusion capabilities
- Excellent module interchangeability using LY12 high-quality alloy aviation aluminum material
- Copper content of at least 5% ensures durability and performance
- Precision pressure casting creates high-density modules free of light pores
- Long-term deformation resistance and reliability
- Customizable module waveform schemes to meet specific user requirements

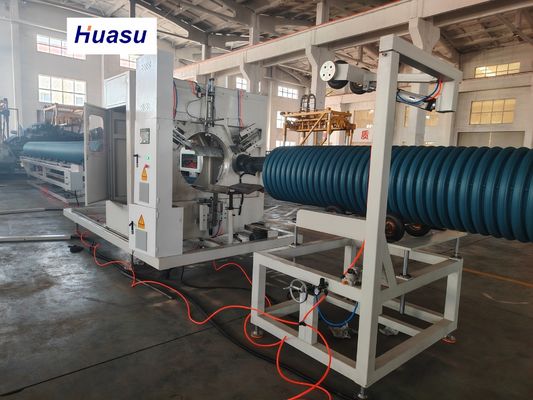

- Integrated computer-controlled automatic DWC cutter for precise cutting positions
- Stable operation and user-friendly interface
Technical Specifications
| Maximum Speed | 1.5-5 m/min |
| Die Head | Double-layer Spiral Co-extrusion |
| Forming Method | Vacuum Forming |
| Corrugator Structure | Horizontal Structure, Easy Size Change |
| Pipe Functions | Cable Protection, Medical Transfer, Gas Transfer, Water Transfer |
| HDPE Output | 40-1600 kg/h |
| Cooling System | Complete Inner Cooling System |
| Total Power | 200-1000 kW |
| Pipe Diameter Range | 32-1600 mm |
Applications & Industries

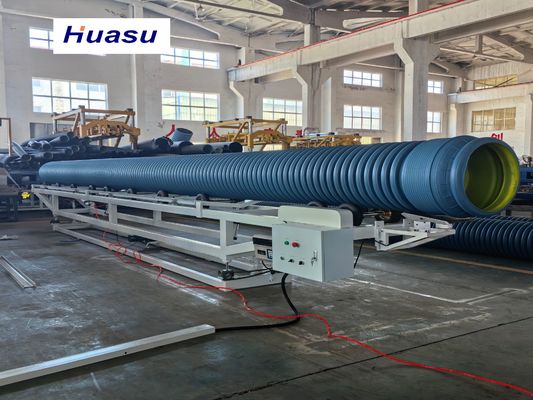

This versatile corrugated pipe extrusion machine produces pipes with outer diameters ranging from 32mm to 1600mm and corresponding inner diameters. These high-performance pipes serve diverse industrial applications:
- Small diameter applications: Cable protection covers and medical transfer tubes
- Large diameter applications: Gas and water transfer systems
- Various industrial purposes requiring durable, flexible piping solutions
