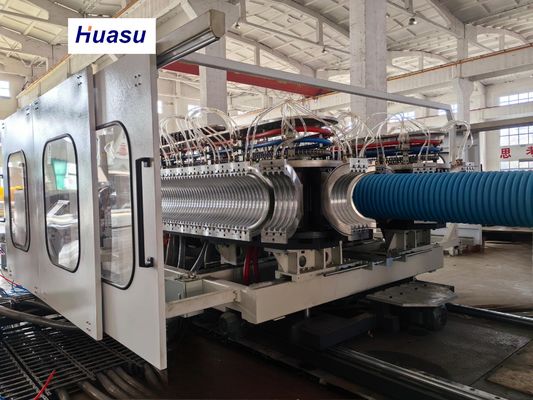

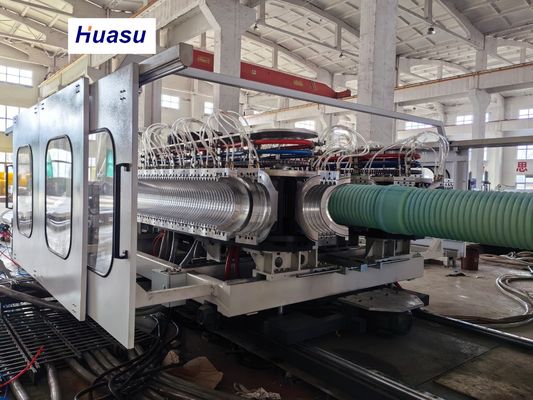

32-1600mm Double-wall Corrugated Pipe Extrusion Line with Siemens PLC Control for High Efficiency Production
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| HDPE Output | 40-1600kg/h | Total Power(kw) | 200-1000kw |
|---|---|---|---|
| Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer | Cooling System | Complete Inner Cooling System. |
| Pipe Diameter(mm) | 32-1600mm | Die Head | Double-layer Spiral Co-extrusion |
| Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size | Forming | Vacuum Forming |
| Highlight | Double wall Corrugated Pipe Production Line,Corrugated Pipe Production Extrusion Line,Single Wall Corrugated Pipe Production Line |
||
Product Description
Plastic Single-wall / Double-wall Corrugated Pipe Production Line
Our corrugated pipe production lines are available in both single-wall (SWC) and double-wall (DWC) configurations, engineered for specific application requirements. The SWC pipes feature a smooth interior surface, while DWC pipes are custom-designed with smooth surfaces on both sides for enhanced performance.
Advanced Generation Technology
This 3rd generation corrugated pipe line represents the improved product line from Shandong HUASU, delivering significant performance enhancements. The extruder output and production speed have been increased by 20-40% compared to previous models. The system features online belling capability and utilizes Siemens PLC for efficient control and operation.
Key Features & Benefits

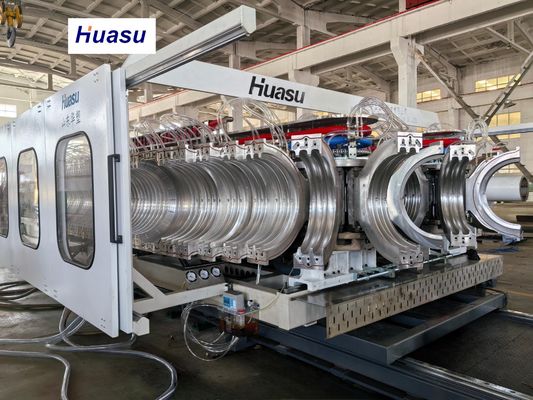

- Newly designed closed molding machine with high-efficiency cooling system for aluminum modules
- High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mould
- Excellent module interchangeability with LY12 high-quality alloy aviation aluminum construction
- Precision pressure casting process ensures dense material with no visible pores
- Customizable module waveform schemes based on user preferences

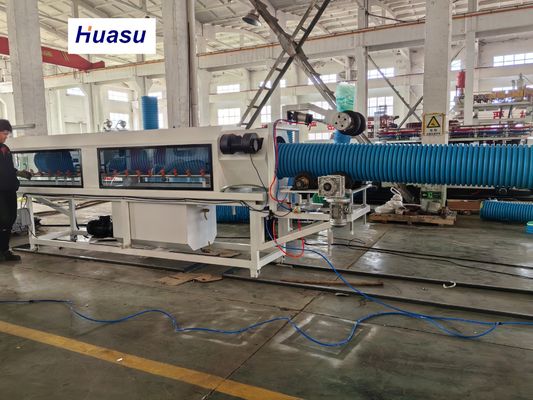

- Automatic DWC cutter with computer-controlled precision positioning
- Stable operation with user-friendly interface
Technical Specifications
| Parameter | Specification |
|---|---|
| Cooling System | Complete Inner Cooling System |
| Die Head | Double-layer Spiral Co-extrusion |
| Forming Method | Vacuum Forming |
| Pipe Diameter Range | 32-1600mm |
| Corrugator Structure | Horizontal Structure, Easy Size Change |
| Maximum Speed | 1.5-5m/min |
| HDPE Output Capacity | 40-1600kg/h |
| Total Power Range | 200-1000kW |
Applications
Our corrugated pipe extrusion machine produces pipes with outer diameters from 32mm to 1600mm, serving diverse industrial applications:
- Small Diameter Pipes (32mm-200mm): Cable protection covers, medical transfer pipes
- Large Diameter Pipes (200mm-1600mm): Gas transfer, water transfer, and industrial fluid transport
