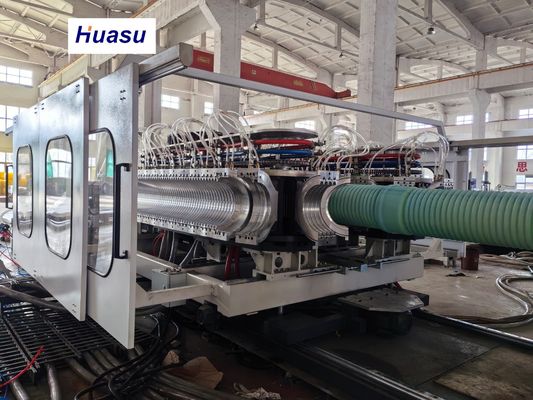

32-1600mm PVC Corrugated Pipe Extrusion Line with Complete Inner Cooling System and Vacuum Forming
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Forming | Vacuum Forming | Die Head | Double-layer Spiral Co-extrusion |
|---|---|---|---|
| HDPE Output | 40-1600kg/h | Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer |
| Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size | Max Speed (m/min) | 1.5-5m/min |
| Total Power(kw) | 200-1000kw | Pipe Diameter(mm) | 32-1600mm |
| Highlight | 32-1600mm Plastic Pipe Extrusion Line,32-1600mm PVC Pipe Extrusion Line,high Output Corrugated Pipe Extrusion Line |
||
Product Description
32-1600mm Plastic PVC Corrugated Pipe Extrusion Line
Advanced Manufacturing System with Complete Inner Cooling & Vacuum Forming
This 3rd generation corrugated pipe extrusion line represents the latest innovation from Shandong HUASU, delivering significant performance improvements over previous models. The system features enhanced extruder output and production speeds, achieving 20-40% greater efficiency while maintaining superior product quality.
Key Features & Benefits
- Online Belling Capability: Ensures optimal performance of finished corrugated pipe products with integrated forming
- Siemens PLC Control System: Advanced automation for enhanced production efficiency and precise process control
- High-Efficiency Cooling System: Specially designed closed molding with optimized cooling for aluminum modules
- High-Speed Single-Screw Extrusion: Professional mold design enables large-scale, stable extrusion operations

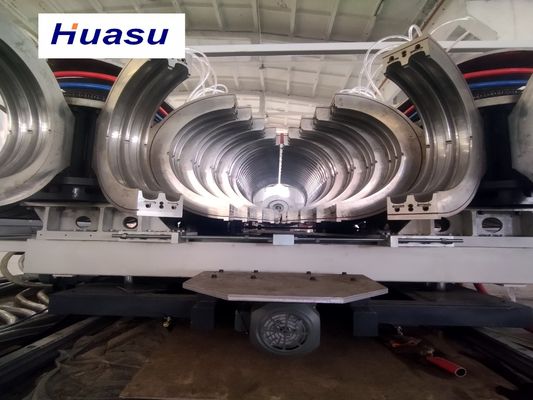

- Interchangeable Aluminum Modules: Constructed from LY12 high-quality aviation aluminum with ≥5% copper content for durability
- Precision Manufacturing: Pressure casting process eliminates light pores and prevents deformation during long-term use

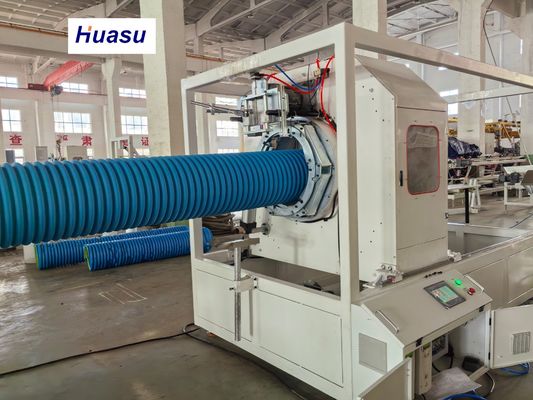

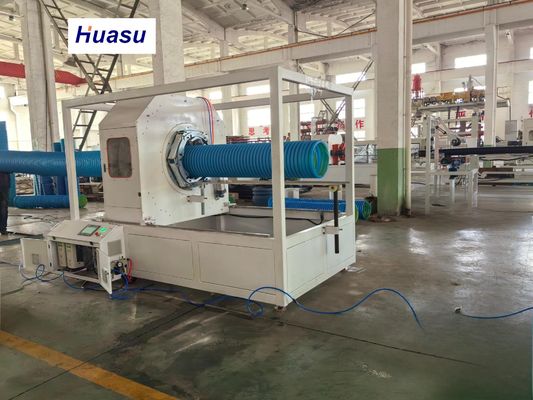

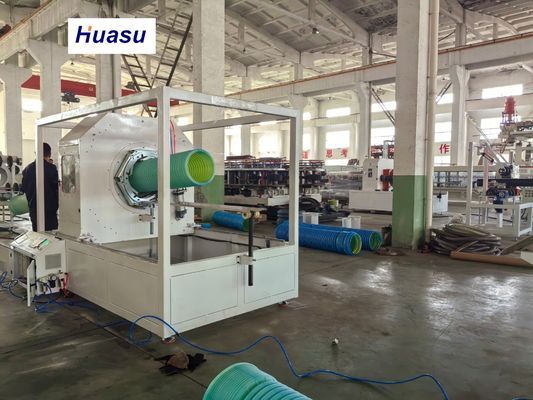

- Automated Cutting System: Computer-controlled DWC cutter provides accurate positioning and stable operation
- Customizable Waveforms: Module designs can be tailored to specific user requirements
Technical Specifications
| Parameter | Specification |
|---|---|
| Cooling System | Complete Inner Cooling System |
| Pipe Diameter Range | 32-1600mm |
| Pipe Applications | Cable Protection, Medical Transfer, Gas Transfer, Water Transfer |
| HDPE Output Capacity | 40-1600kg/h |
| Die Head Type | Double-layer Spiral Co-extrusion |
| Maximum Production Speed | 1.5-5m/min |
| Corrugator Structure | Horizontal Design with Easy Size Change Capability |
| Total Power Consumption | 200-1000kw |
| Forming Method | Vacuum Forming |
Industry Applications
This versatile extrusion system produces corrugated pipes with outer diameters from 32mm to 1600mm, serving multiple industrial sectors. Smaller diameter pipes provide reliable cable protection and medical transfer solutions, while larger diameters efficiently handle gas and water transfer applications. The comprehensive range of sizes and specialized designs ensures optimal performance across diverse industrial requirements.
