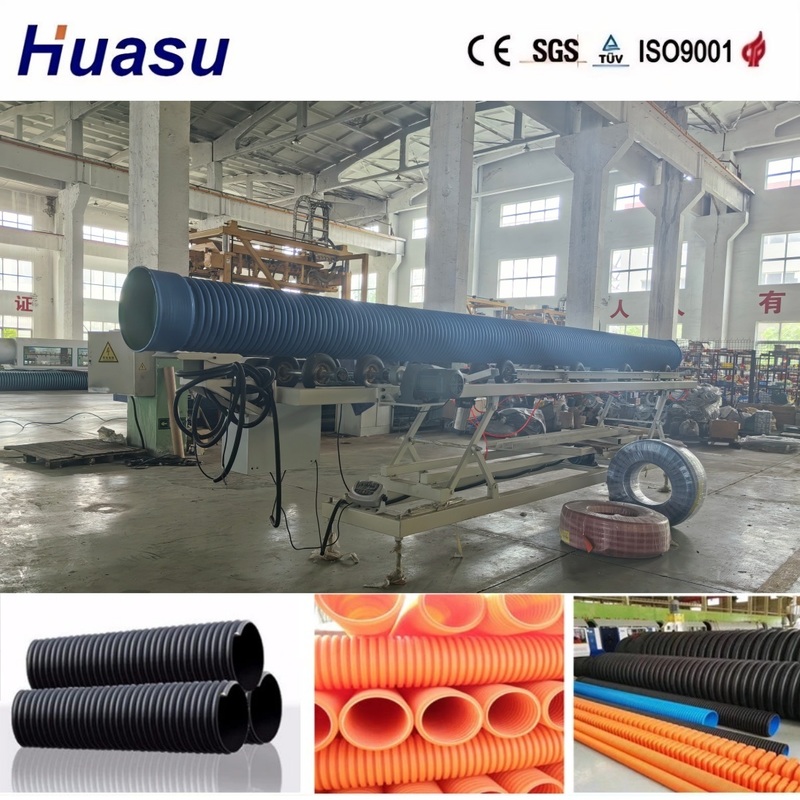

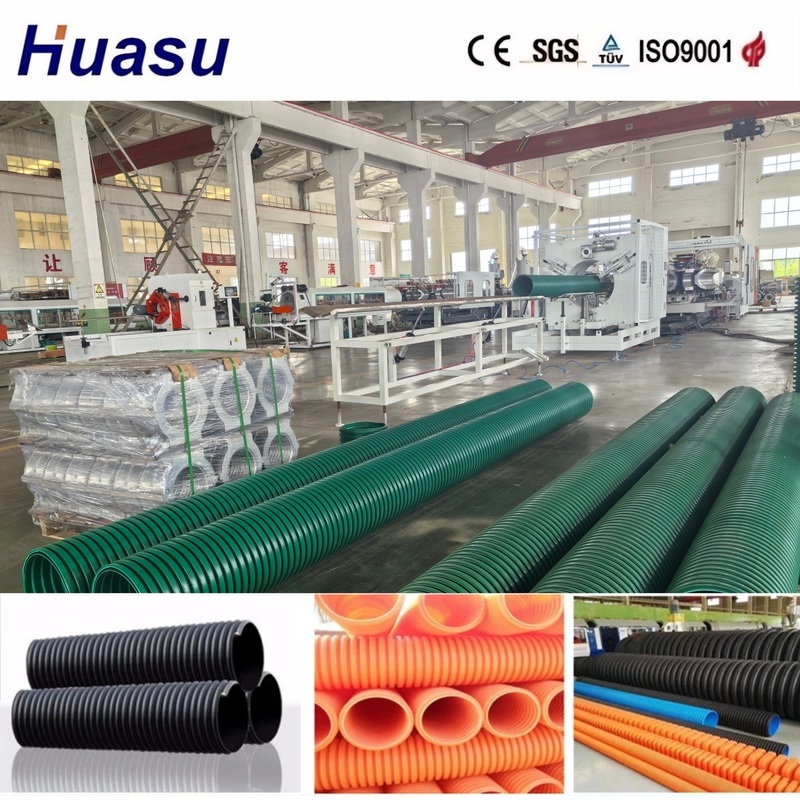

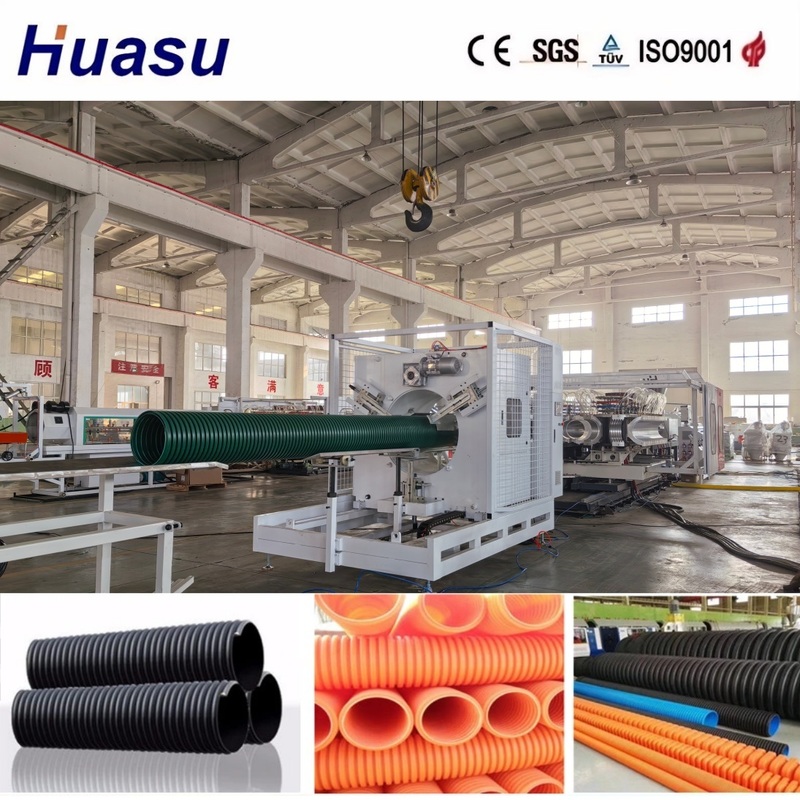

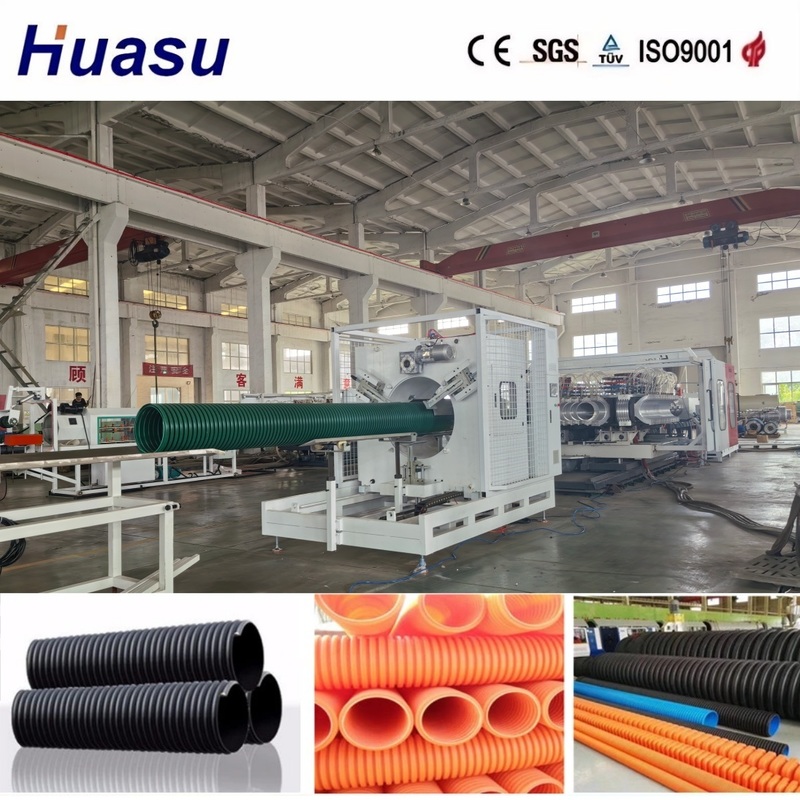

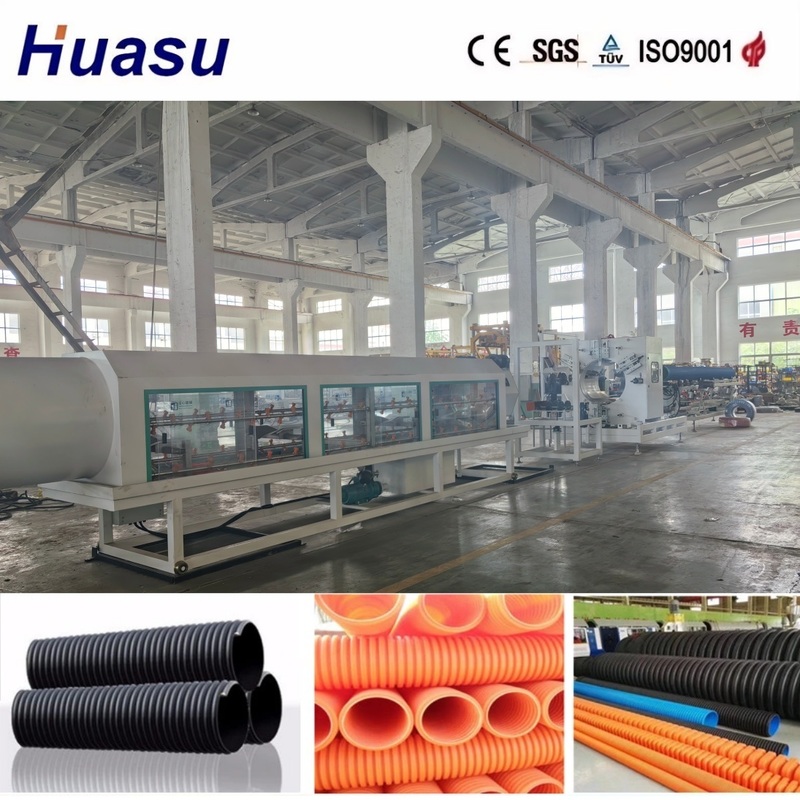

Horizontal Structure Double Wall Corrugated Pipe Making Machine with 60-2000kg/h Capacity and High Productivity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Finished Product | Drainage Pipe, Municipal Engineering, Underground Sewage Pipe, Electric Cable Conduit | Structure | Horizontal Structure |
|---|---|---|---|
| Machine | PVC/PE Corrugated Pipe Extrusion Line | Production Line Feature | High Productivity, Competitive Price, Energy Saving, Automatic |
| Plastic Raw Material Processed | PVC / PE / MPP / PA / HDPE | Winder Type | Double Station Or Single Station |
| Processing Procedure | Raw Material Feeding In Screw Extruder, Shaping In Forming Machine, Water Cooling Tank Cooling, Online Cut By Cutting Machine | Capacity | 60-2000kg/h |
| Highlight | 60-2000kg/h Capacity Double Wall Corrugated Pipe Making Machine,Horizontal Structure DWC Pipe Extrusion Line,High Productivity Corrugated Pipe Production Line |
||
Product Description
Competitive HDPE / PVC Double Wall Corrugated Pipe Making Machine With Horizontal Structure
Product Overview
The double wall corrugated pipe line represents the third generation of improved products developed by Shandong HUASU. This advanced system delivers 20-40% greater extruder output and production speed compared to previous models.
The integrated online belling process ensures consistent performance of finished corrugated pipes. The production line features a Siemens PLC system for precise control and efficient operation.
Key Features
- Closed molding machine with specialized high-efficiency cooling system for aluminum modules
- High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mold
- Interchangeable aluminum forming modules made from LY12 high-quality alloy aviation aluminum
- Precision pressure casting process creates durable, deformation-resistant modules
- Customizable waveform schemes available to meet specific requirements
- Computer-controlled automatic DWC cutter for precise cutting positions and stable operation
Technical Specifications
| Electric Element | Siemens Brand |
|---|---|
| Pipe Diameter | 32-1600mm |
| Production Line Features | High Productivity, Competitive Price, Energy Saving, Automatic |
| Cooling Method | Air or Water |
| Processing Procedure | Raw material feeding → screw extruder → forming machine shaping → water cooling tank → cutting machine |
| Structure | Horizontal |
| Winder Type | Double Station or Single Station |
| Machine Type | PVC/PE Corrugated Pipe Extrusion Line |
| Plastic Raw Materials | PVC / PE / MPP / PA / HDPE |
| Capacity | 60-2000kg/h |
Applications
This plastic pipe making machine produces high-quality pipes for:
- Water supply systems
- Water drainage infrastructure
- Electric cable conduits
The machine creates durable, efficient pipes that meet industry standards for performance in water networks, drainage systems, and electrical installations.
