Double Wall Corrugated Pipe Extrusion Line with Barrel Hardness HV>940, Gear Material 20CrMnTi, and Screw Ratio 33:1
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Winder | 1 Set | Cooling Way | Water Cooling |
|---|---|---|---|
| Gear Material | 20CrMnTi | Screw Ratio | 33:1 |
| Ac Motor | Siemens Beide/WEG | Mould Quantiy | 48 |
| Plc | Siemens | Barrel | Hardness Of Barrel HV>940 |
| Highlight | Barrel Hardness HV>940 Double Wall Corrugated Pipe Extrusion Line,Gear Material 20CrMnTi Corrugated Pipe Extrusion Line,Screw Ratio 33:1 DWC Pipe Extrusion Line |
||
Product Description

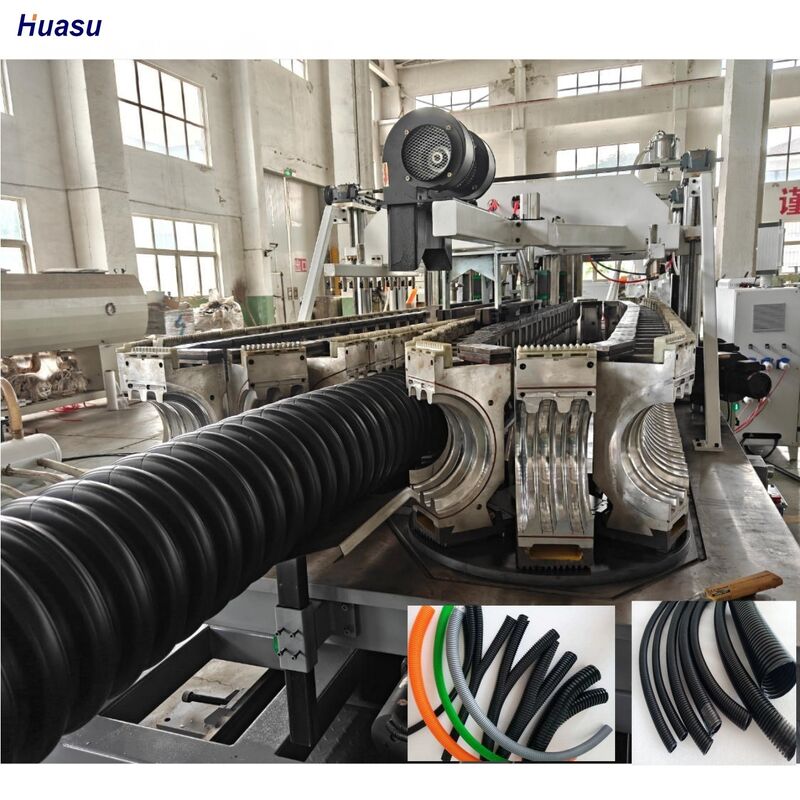

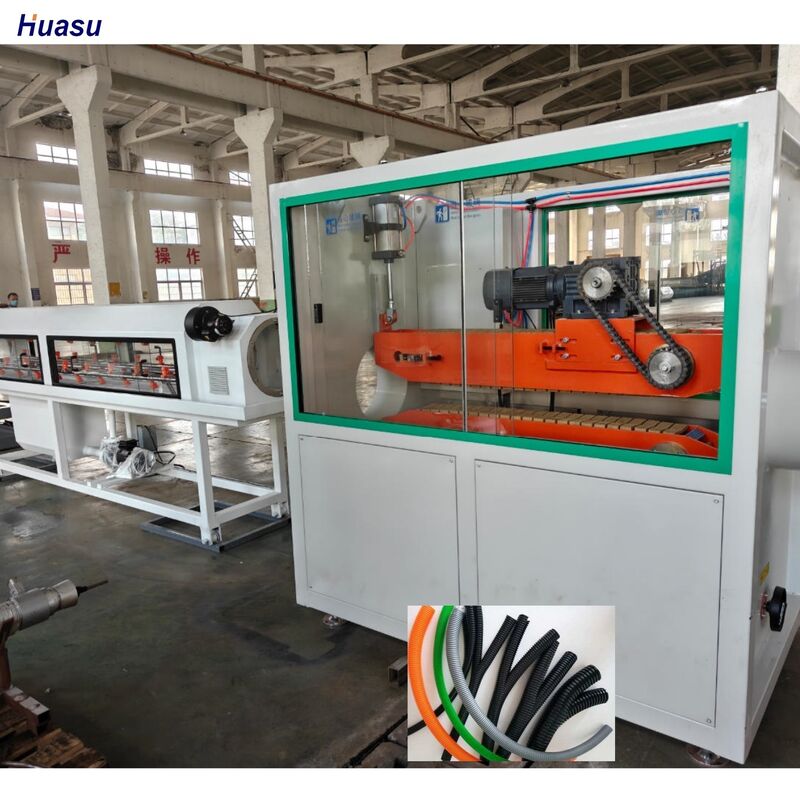

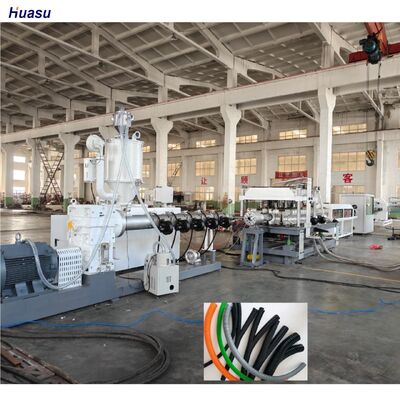

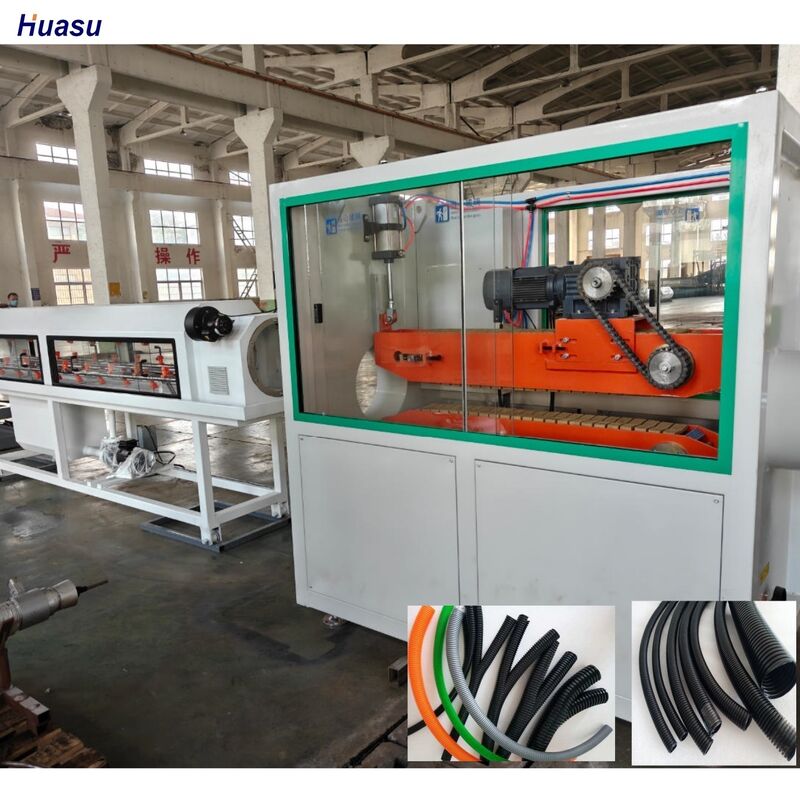

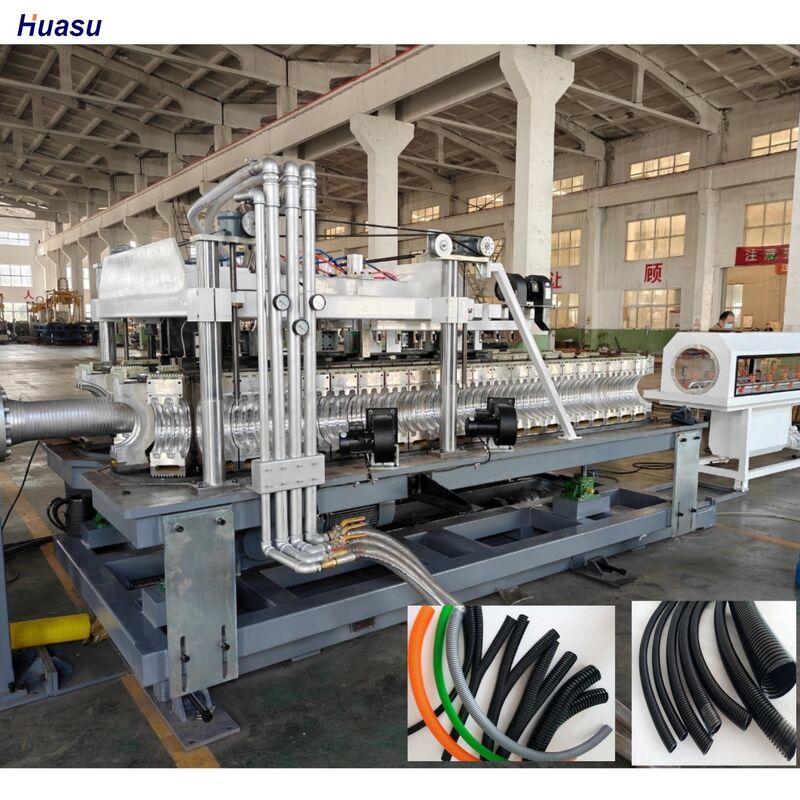

Double Wall Corrugated Pipe Extrusion Line
This advanced extrusion line is engineered for high-efficiency production of double wall corrugated pipes, featuring exceptional durability and precision. With a barrel hardness of HV>940 and high-quality 20CrMnTi gear material, this approximately 15-20 meter long machine delivers superior performance for demanding industrial applications.
Product Overview
The Double Wall Corrugated Pipe Extrusion Line represents state-of-the-art technology in pipe manufacturing, designed to produce high-quality corrugated pipes for various industrial and commercial applications. Engineered with robust components and advanced features, this equipment ensures consistent output, durability, and high productivity in demanding production environments.
Key Features
- Premium Barrel Construction: Exceptional hardness level of HV>940 ensures superior durability and wear resistance
- High-Quality Gearing: 20CrMnTi gear material for precision and long-lasting performance
- Advanced Control System: Siemens PLC and electrical components for reliable operation
- Optimized Screw Design: 33:1 screw ratio for thorough plasticization and homogenization

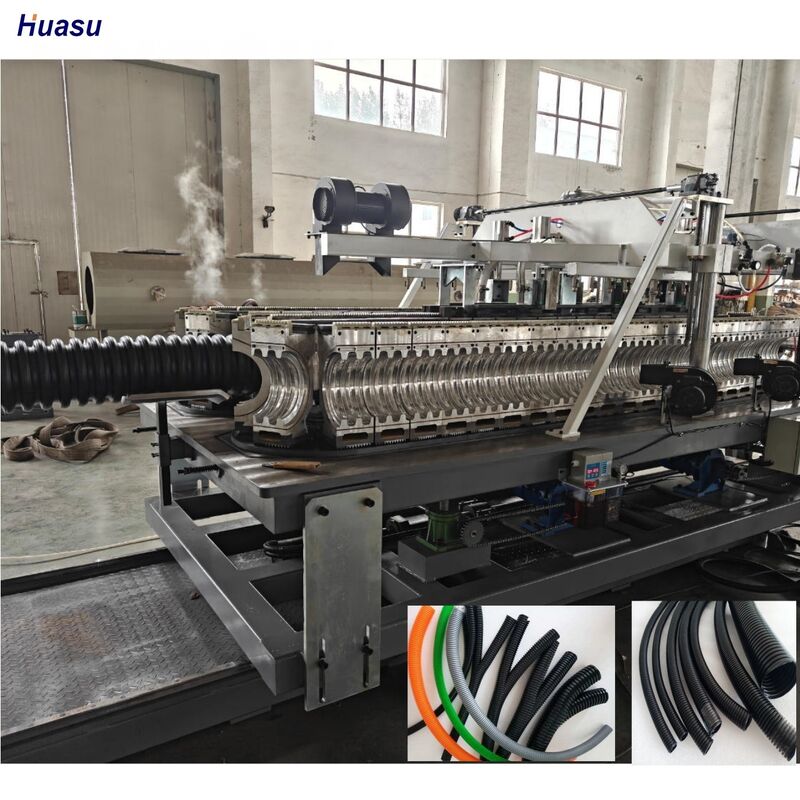

- Comprehensive Mould Setup: 48 mould sets for versatile pipe size production

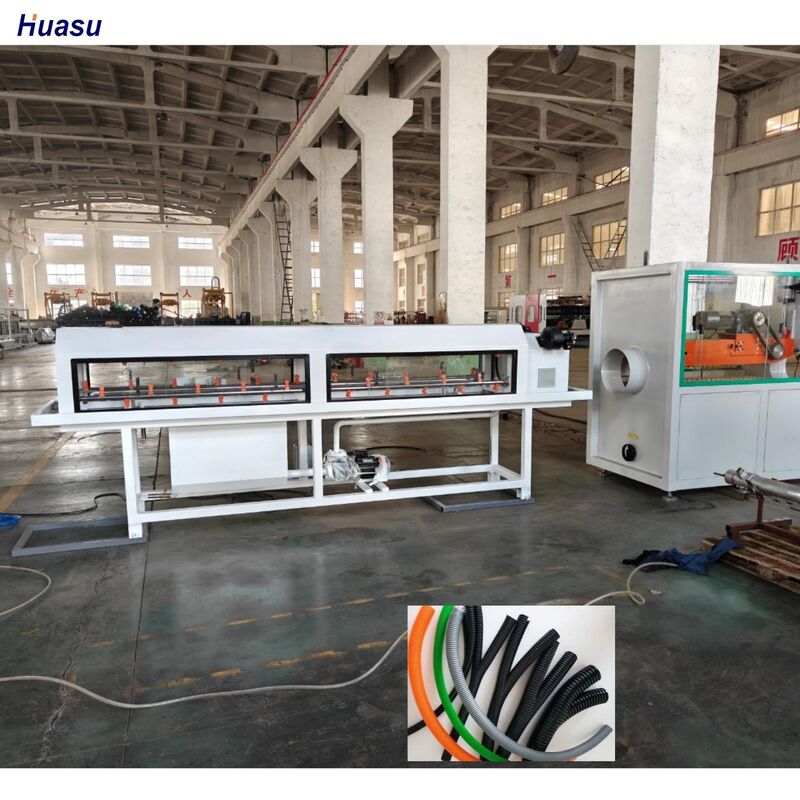

- Efficient Cooling System: Water cooling method for rapid and uniform pipe cooling

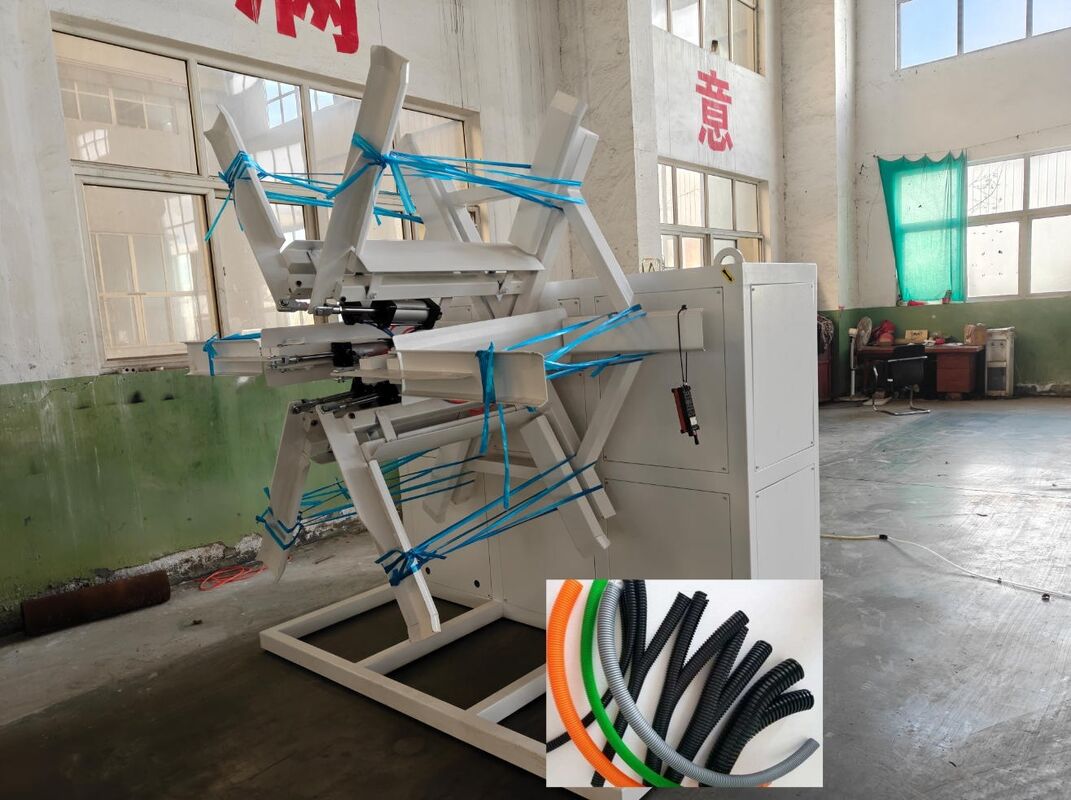

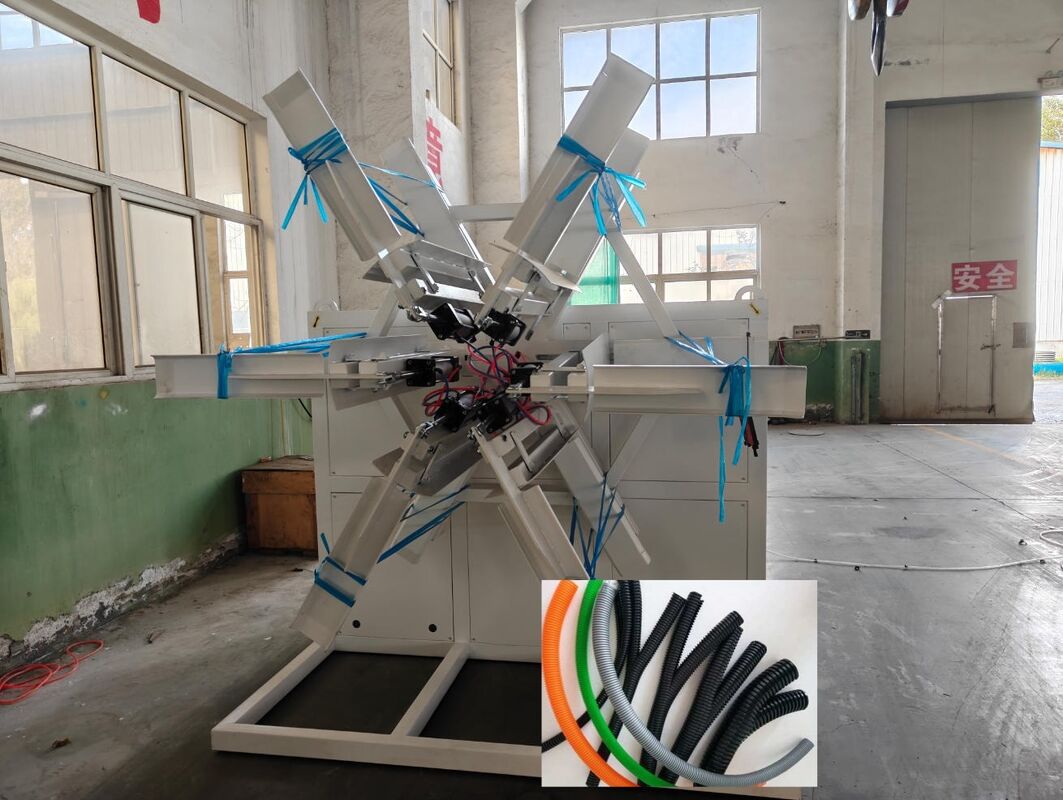

- Integrated Winding: Single winder set for organized collection of finished pipes
- Dual Application: Suitable for both double wall corrugated pipes and cable dust pipes
Technical Specifications
| Product Type | Corrugate Pipe Machinery |
| AC Motor | Siemens Beide/WEG |
| PLC System | Siemens |
| Screw Ratio | 33:1 |
| Gear Material | 20CrMnTi |
| Cooling Method | Water Cooling |
| Barrel Hardness | HV > 940 |
| Mould Quantity | 48 Sets |
| Machine Length | Approximately 15-20 Meters |
| Customization | Available |
Applications
This extrusion line is specifically designed for producing high-quality double wall corrugated pipes used in various critical applications including:
- Drainage and sewage systems
- Cable protection and conduit systems
- Agricultural irrigation networks
- Industrial drainage and ventilation
- Infrastructure and construction projects
The HUASU SBG model, certified with ISO and CE standards, offers automated production capabilities with Siemens AC motors and PLC control systems, ensuring precise operation and consistent output for industrial-scale pipe manufacturing.
