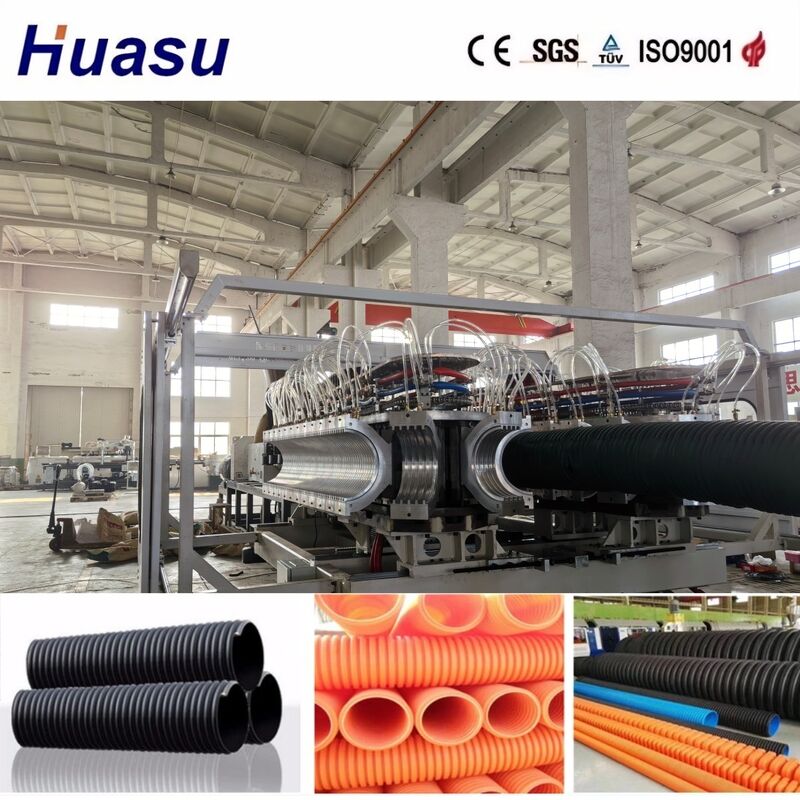

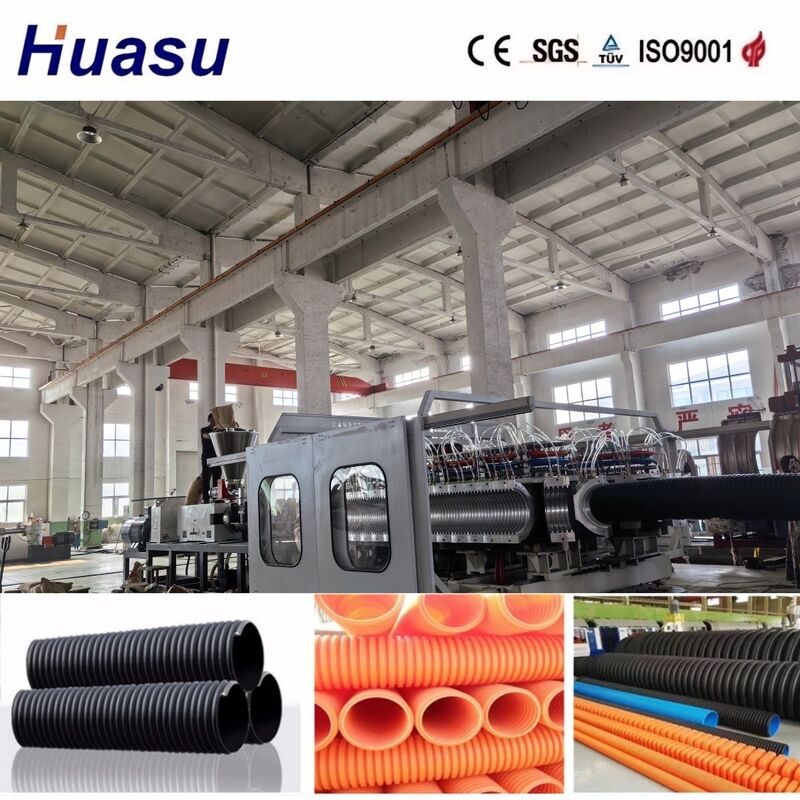

PLC Controlled Double Wall Corrugated Pipe Extrusion Line for High Productivity with 32-1600mm Pipe Diameter

The advanced double wall corrugated pipe extrusion line represents the latest innovation from Shandong HUASU Plastic Technology Company, This is our third-generation product in this field. This updated version incorporates numerous enhancements that significantly improve both its performance and operational efficiency.

One of the most notable advancements is the substantial increase in extruder output and production speed. Compared to previous models, this system achieves improvements ranging from 20% to 40%, which greatly boosts overall productivity while reducing manufacturing time.

Beyond the improvements in speed and output, the extrusion line also features an integrated online belling function. This addition ensures that the finished corrugated pipe products meet the highest quality standards and perform optimally. Furthermore, the inclusion of PLC systems enhances the operational control of the extrusion line, allowing for precise management and a more streamlined production process.

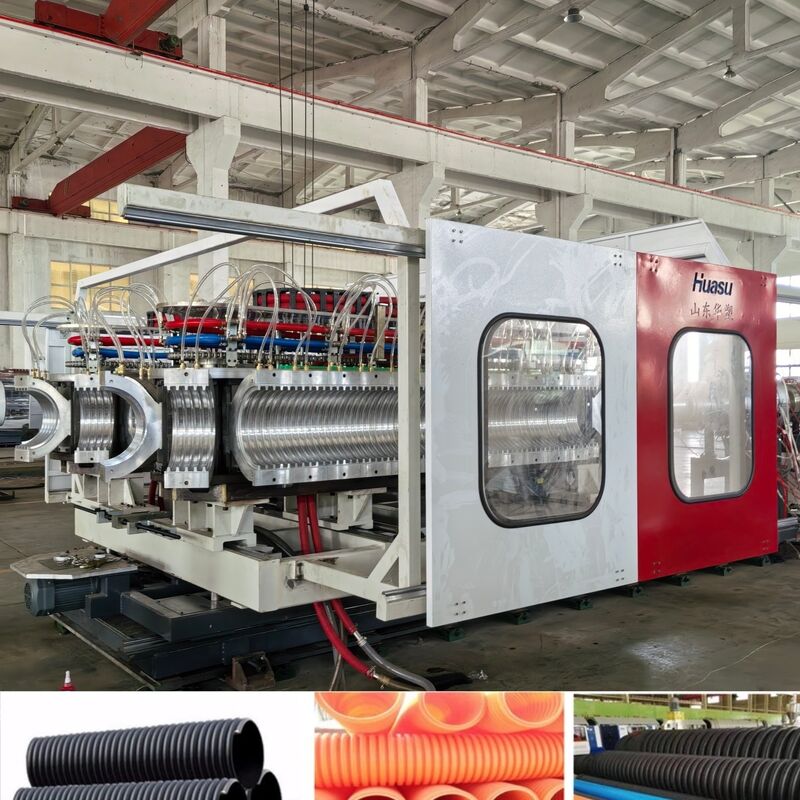

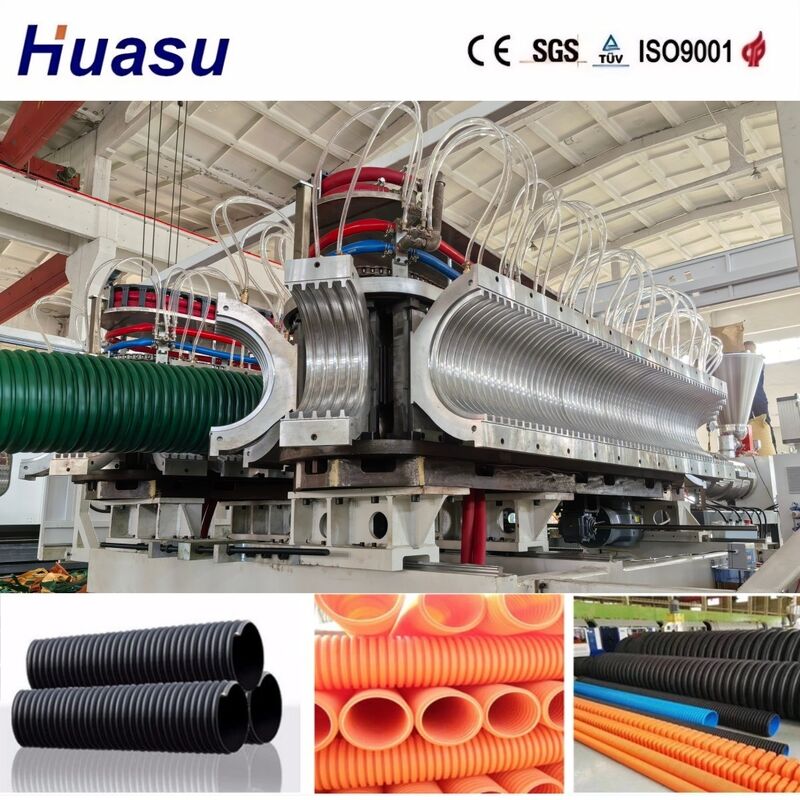

• The implementation of pressure water-cooling on mould blocks significantly accelerates the manufacturing pace. This advancement allows production lines to operate at a much faster rate, thereby enhancing overall efficiency.
• Thanks to its energy-efficient design, this cooling system helps lower consumption levels, which in turn decreases overall production expenses. This makes the manufacturing process more cost-effective and environmentally friendly.
• The vacuum system incorporated within the setup is engineered for optimal performance. It ensures that pipe formation is consistently flawless, maintaining high standards in product output every single time.
• Precise temperature regulation of the mould blocks plays a crucial role in guaranteeing superior quality. By carefully managing the heat, both the inner and outer surfaces of the pipes are refined, resulting in enhanced product durability and functionality.
• Switching between different mould sizes is designed to be swift and straightforward. This is made possible through the compatibility of tooling across multiple production lines, minimizing downtime and simplifying adjustments.
• The extrusion line is fully automated, which streamlines the entire manufacturing process. Automation reduces the need for manual labor and helps maintain consistent operational flow throughout production.
• Synchronous control of corrugators and extruders ensures smooth coordination between these components. This synchronization contributes to uniform product quality and reliable output rates.

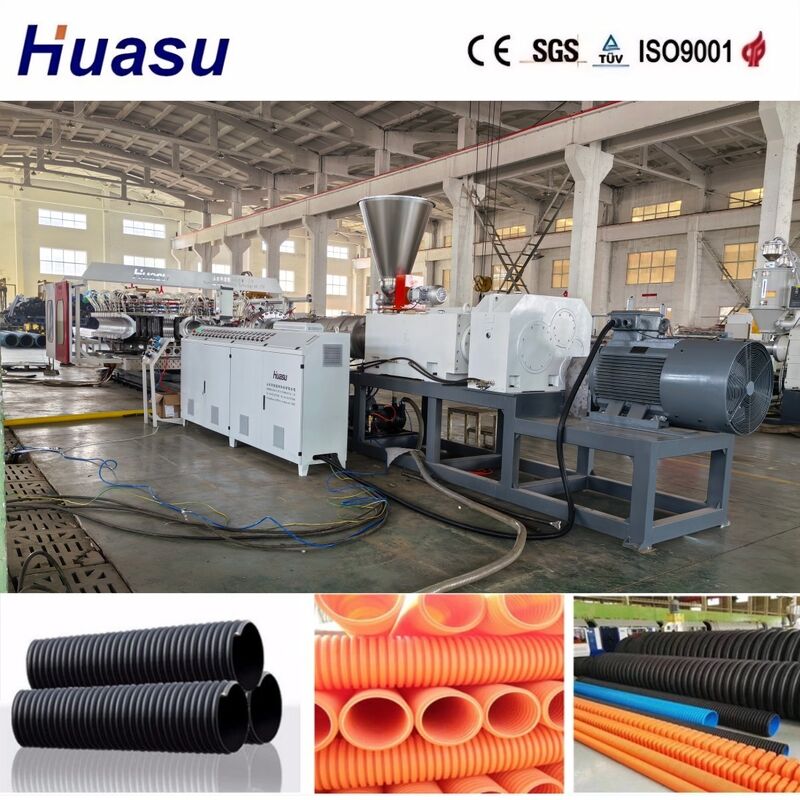

• Machinery is equipped with hardened screws and barrels, which significantly extend the equipment’s lifespan. This robust design reduces maintenance frequency and enhances overall durability.
• Moreover, remote service support is available to offer technical assistance whenever necessary. This feature bolsters operational reliability by ensuring timely help is accessible, minimizing potential downtime.

Corrugated tube machine for wiring harnesses

Wiring harnesses or slit tubes are extruded either Polypropylene(PP) or Polyamide(Nylon, PA) according to their position in their temperature resistance. Their corrugated profile associated to their low weight gives them great flexibility adapted to their use. A colored co-extruded line can be integrated for quick visual identification.

If needed, wiring harness can be packaged in coils.

Our plastic pipe manufacturing machine is engineered to create high-quality plastic pipes. These pipes find extensive usage in numerous fields, including water supply systems, drainage channels, and electrical cable protection.

This state-of-the-art machinery guarantees the production of pipes that adhere strictly to industry standards. It ensuring both reliability and long-lasting durability. Water transportation, drainage facilitation, or electrical cable shielding, the pipes produced by our production line.

Utilizing our machine allows manufacturers to maintain consistent quality and enhance efficiency. This enables them to meet the stringent requirements of various infrastructure and construction projects that depend on strong and dependable plastic piping solutions.
