Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: QINGDAO HUASU
Certification: CE IOS9001
Model Number: SJ-65
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 10000.00-20000.00/set
Packaging Details: NORMAL PACKAGE
Delivery Time: 5-8 work days
Payment Terms: L/C
Supply Ability: 150sets/year
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Line Operation: Left To Right
Electric Parts: Siemens Processing Type: Pipe Extrusion
High Light:

pvc pipe production line

,

pvc pipe making machine

High Output PVC Pipe Extrusion Line PVC Fiber Reinforced Hose Extrusion Line 0





Description of PVC Fiber Enhancing Hose Extrusion Line

Feature: PVC Fiber Enhancing Hose extrusion line ( PVC fiber reinforced pipe production line ) is a special complete set of equipment for producing PVC fiber enhancing hose. This pipe is non toxic, transparent, pressure endurable, anti-stretching, and acid resistance, corrosion resistance, good appearance, soft light, and durable. The middle layer of this PVC fiber hose is Terlene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and it is widely used in food and health industry. Also it is good pipe for air, water, gas, oil and other liquid, gas in the temperature from -5℃ to 65℃.

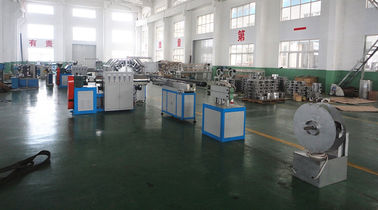

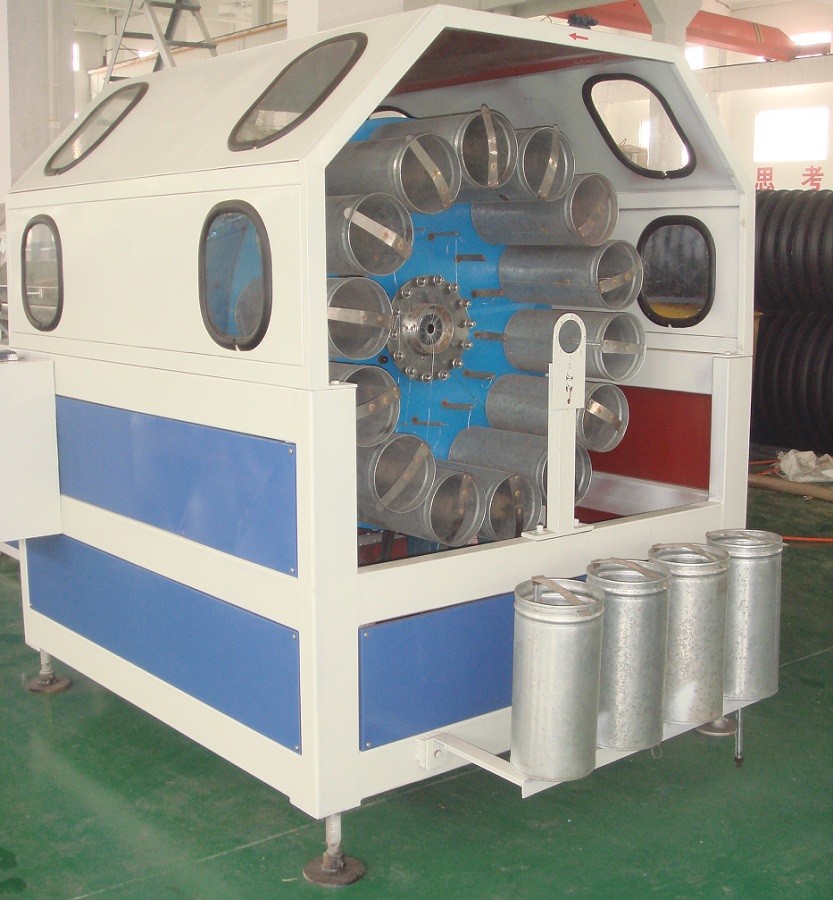

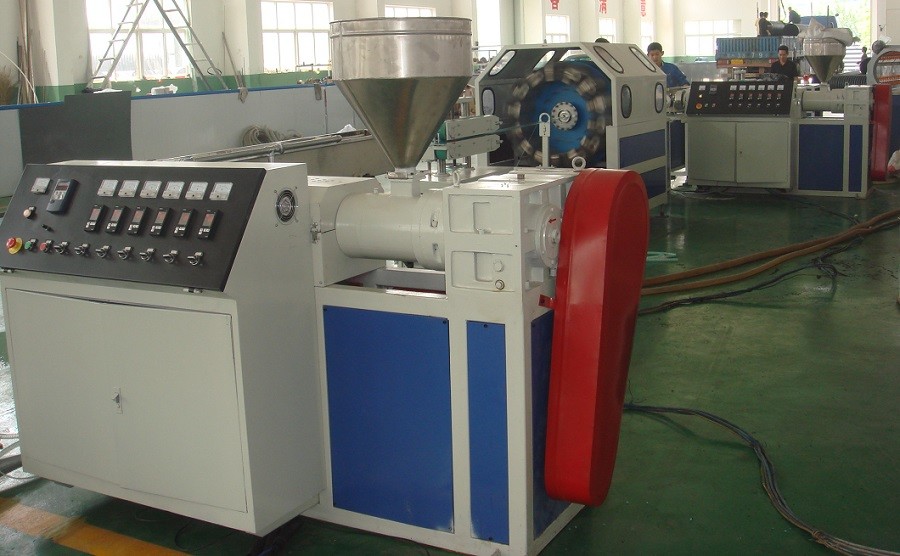

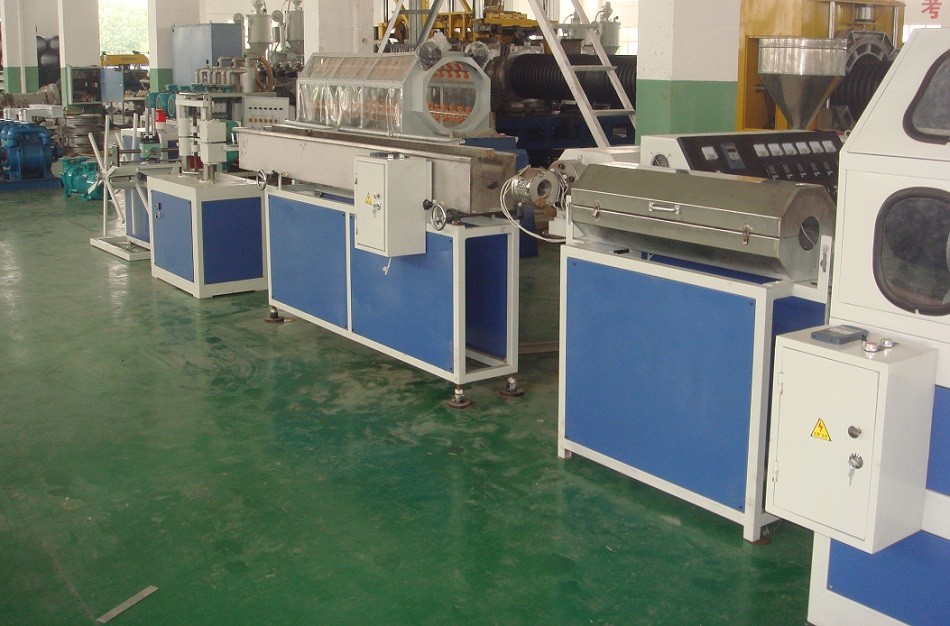

This PVC fiber reinforced pipe extrusion line consists of extruder, water-spraying tank, hauling-off unit, fiber-rolling unit, coiler, etc. It features reasonable configuration, unique structure, reliable performance, easy operation, convenient maintenance, high continual capacity, etc. It receives deep welcome and trust from clients.



Main Technical Parameter Information:

Extruder Screw Diameter (mm) L/D Material Main Motor Power
(kw)
Total Power
(kw)
Middle Height
(mm)
Pipe Diameter
(mm)
SJ-45/55 45/55 30 38CrMnAl 7.5/11 35 1000 6-14
SJ-55/65 55/65 30 38CrMnAl 11/15 46 1000 16-38
SJ-75/90 75/90 30 38CrMnAl 18.5/37 80 1000 50-102
