| Place of Origin: | QINGDAO CHINA |
| Brand Name: | QINGDAO HUASU |
| Certification: | CE IOS9001 |
| Model Number: | SJ-95 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD 19500.00-19700.00/set |
| Packaging Details: | NORMAL PACKAGE |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C |
| Supply Ability: | 150sets/year |
| Raw Material: | Pvc | Pipe Diameter: | Pvc Soft Hose |
|---|---|---|---|
| Usage: | Water Supply Hose | Thickness: | According To Customer's Demand |
| Processing Type: | Pipe Extrusion | ||
| High Light: | pvc pipe making machine,pvc pipe extrusion machine |
||

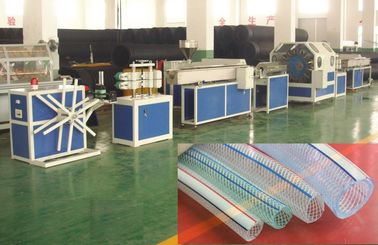

Description of PVC Fiber Enhancing Hose Extrusion Line
Feature: PVC Fiber Enhancing Hose extrusion line ( PVC fiber reinforced pipe production line ) is a special complete set of equipment for producing PVC fiber enhancing hose. This pipe is non toxic, transparent, pressure endurable, anti-stretching, and acid resistance, corrosion resistance, good appearance, soft light, and durable. The middle layer of this PVC fiber hose is Terlene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and it is widely used in food and health industry. Also it is good pipe for air, water, gas, oil and other liquid, gas in the temperature from -5℃ to 65℃.

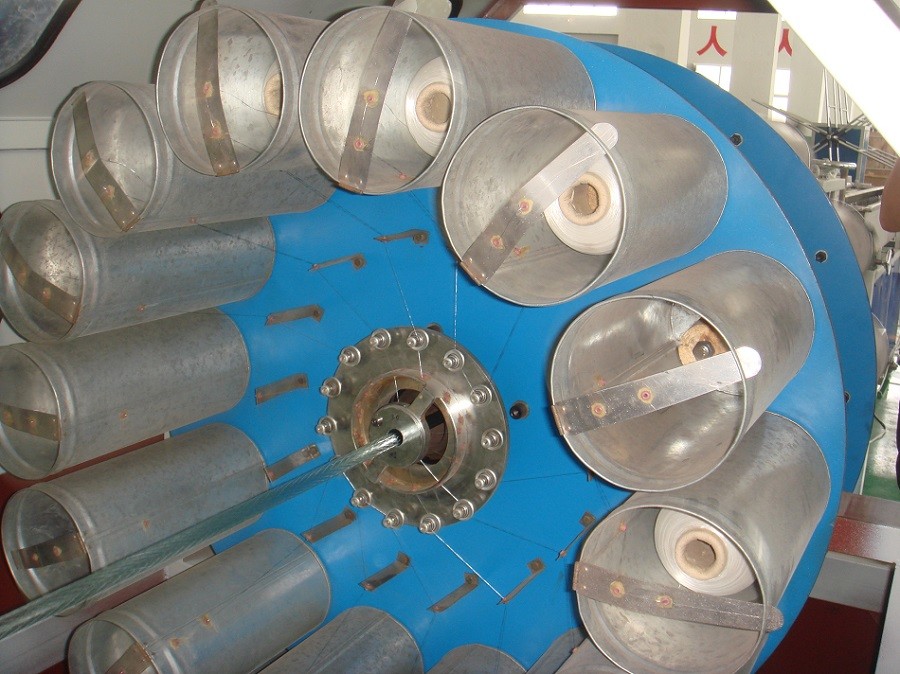

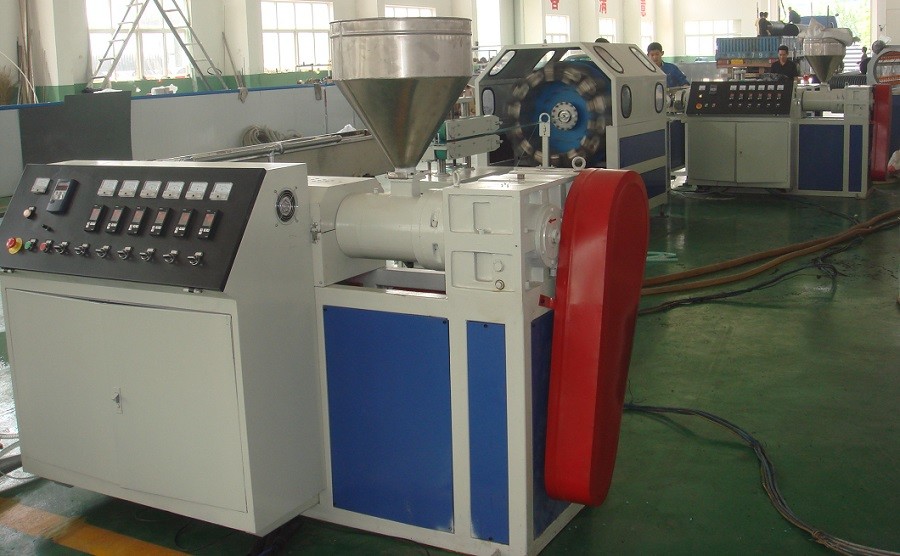

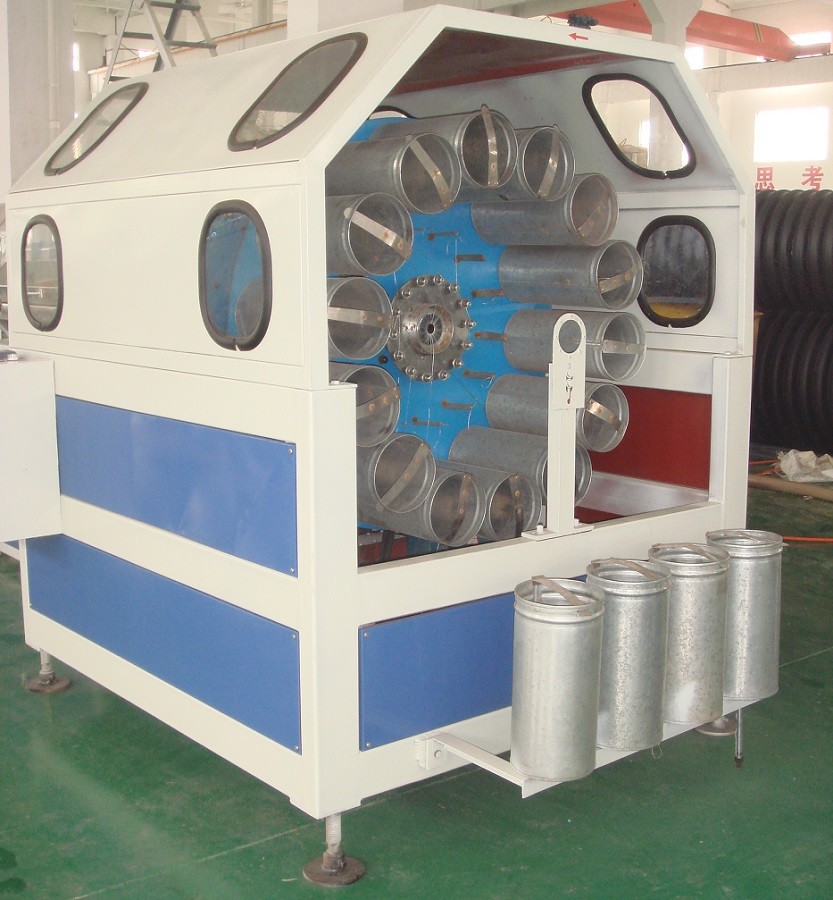

This PVC fiber reinforced pipe extrusion line consists of extruder, water-spraying tank, hauling-off unit, fiber-rolling unit, coiler, etc. It features reasonable configuration, unique structure, reliable performance, easy operation, convenient maintenance, high continual capacity, etc. It receives deep welcome and trust from clients.
Main Technical Parameter Information:
| Extruder | Screw Diameter (mm) | L/D | Material | Main Motor Power (kw) |
Total Power (kw) |
Middle Height (mm) |
Pipe Diameter (mm) |
| SJ-45/55 | 45/55 | 30 | 38CrMnAl | 7.5/11 | 35 | 1000 | Ф6-Ф14 |
| SJ-55/65 | 55/65 | 30 | 38CrMnAl | 11/15 | 46 | 1000 | Ф16-Ф38 |
| SJ-75/90 | 75/90 | 30 | 38CrMnAl | 18.5/37 | 80 | 1000 | Ф50-Ф102 |
