750kg/H OD500mm Double Wall UPVC Corrugated Pipe Line
| Place of Origin | Shandong, China |
|---|---|
| Brand Name | HUASU |
| Certification | CE, ISO9001 |
| Model Number | SBG500 |
| Minimum Order Quantity | 1 sets |
| Packaging Details | standard package or as required |
| Delivery Time | 60 working days |
| Payment Terms | T/T |
| Supply Ability | 20 sets / month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe OD | 160-500 Mm | LD | 22:1 |
|---|---|---|---|
| Extruder | SJSZ92/188 | Motor | 110kw |
| Inverter | Hitachi, Japan | Max. Output | 750 Kg/h |
| Power | 380 V X 50 Hz X 3 Phase | Conical Twin Screw Extruder | SJSZ92/188 1 Set |
| Cooling Type | Air Cooling | ||
| Highlight | UPVC Corrugated Pipe Line,OD500mm UPVC Corrugated Pipe Line,750kg/H PVC Pipe Extrusion Line |
||
Product Description

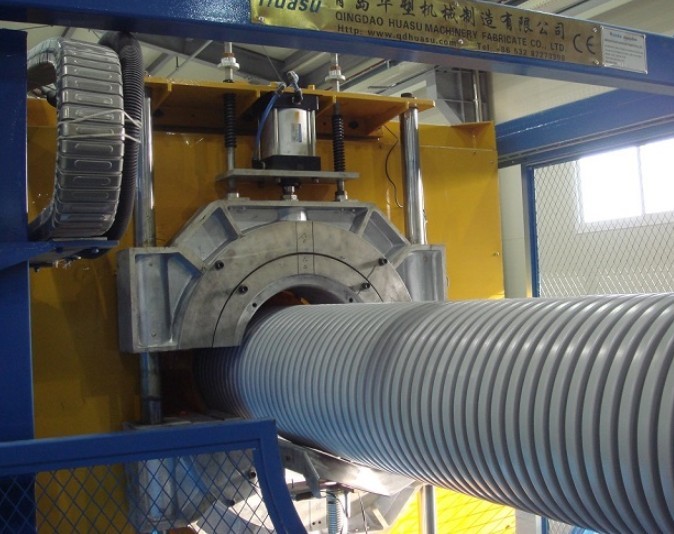

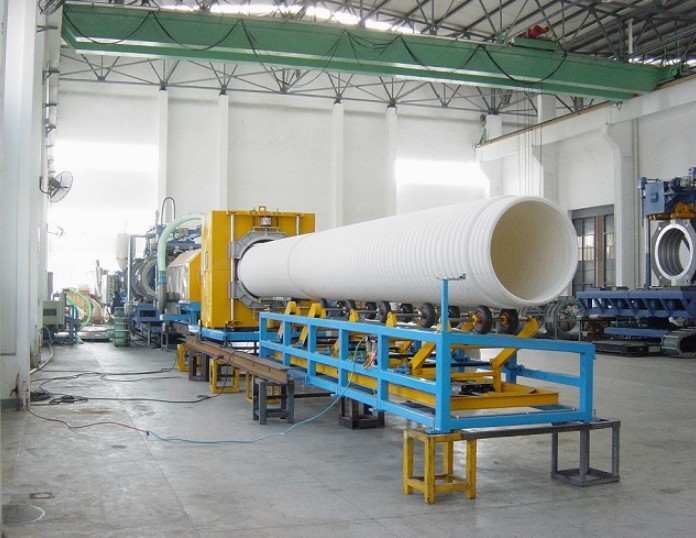

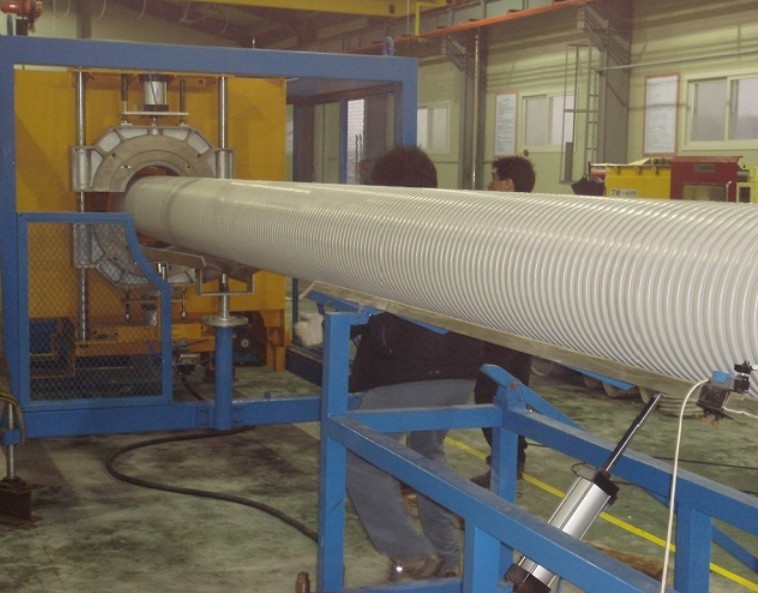

UPVC Double Wall Corrugated Pipe Line SBG500
Single/double wall corrugated pipe machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.It is mainly for the production of raw materials to PVC.PP.PE small diameter single wall corrugated pipe. Die by the corresponding forming a homogeneous single-wallcorrugated bellows products. Threading pipe for wire and cable, washing machinedrains, vacuum cleaners, ventilation pipe, prestressed concrete special tubes.
| NO. | Outside Diameter ( mm) |
| 1 | 160 |
| 2 | 200 |
| 3 | 250 |
| 4 | 315 |
| 5 | 400 |
| 6 | 500 |
| Power | 380 V x 60 Hz x 3 Phase |
| Total Power | 250kw |
| Cooling Water | Recycling water. ≤20℃, ≥0.3Mpa, ～3T/h |
| Compressed air | 0.3m3/min, ＞0.5Mpa |
| No. | Name & Model | Quantity | |
| 01 | Conical Twin Screw Extruder SJSZ92/188 | 1 set | |

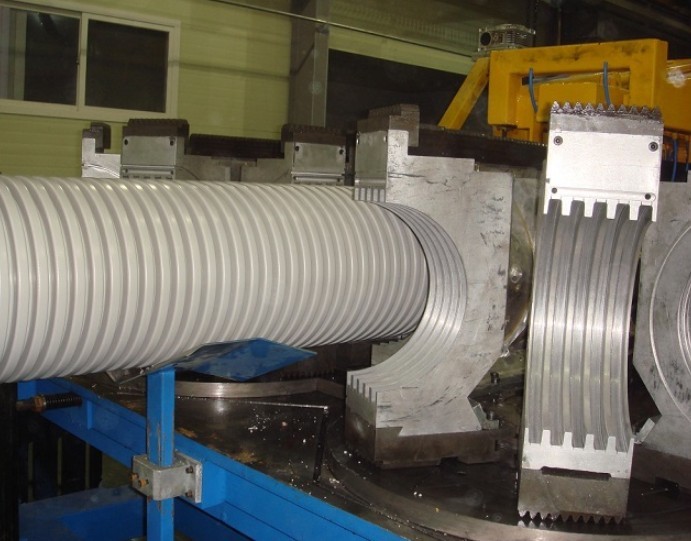

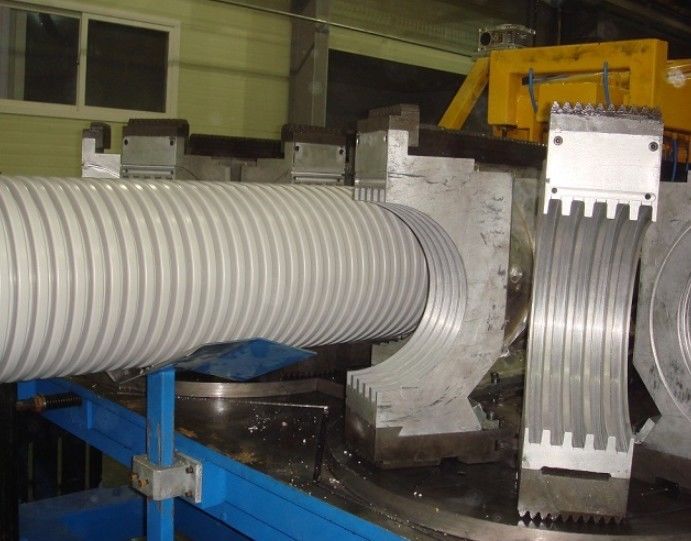

| 02 | Molds | 160mm die head water sleeve mould block | 6sets |
| 200mm die head water sleeve mould block | |||
| 250mm die head water sleeve mould block | |||
| 315mm die head water sleeve mould block | |||
| 400mm die head water sleeve mould block | |||
| 500mm die head water sleeve mould block | |||
| 03 | Forming Machine SBCJ-500 | 1 set | |
| 04 | Cutting Machine STG-500 | 1 set | |
| 05 | Automation Belling Machine SGK-500 | 1 set | |
| 06 | PLC Control System SBG 500 | 1 set | |
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission
capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its
flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
Qingdao HUASU Company is closely following the development of plastic machinery industry in the whole world under a spirit of deploitation and innovation. Different kinds of PE, PVC pipe extrusion lines(Ф16-Ф1200mm) win a very good reputation both in domestic and foreign markets with their high quality and amazing efficiency. As the earliest company that successfully developed and adopted horizontal structure with chain type transmission double wall corrugated pipe production line which can do pipe diameter from Ф75 to Ф200, HUASU always keep the leading position in this feild and has gained very good outstanding achievements during these years.
In 2004 we introduced the Ф200-Ф500mm double wall corrugated pipe production line with horizontal structure and chain type transmission model.In 2005 we unveiled the China’s first Ф32-Ф63mm double wall corrugated pipe production line with chain type transmission. In 2006 we developed the Ф500-Ф800mm and Ф800-Ф1200mm double wall corrugated pipe production line successfully which adopted horizontal structure, shuttle type transmission, Siemens PLC control system, servo motor with belling online system and sealed water cooling etc. In the meanwhile, HUASU developed water/gas supply pipe production line that can produce pipes up to Ф1200mm and huge diameter steel band reinforced spiral pipe extrusion line that can produce pipes up to Ф3000mm. In addition, HUASU also keeps up with the world development trend and develops energy-saving environmental-friendly foaming insulated corrugated pipe line for water and heat transfer.
HUASU invent and start to produce large capacity hollow container blow molding extrusion machine, main products have 200L—10000L HDPE water tank blow molding machine, HDPE road barrier blow molding machine, HDPE pallet machine etc.
Qingdao HUASU machinery fabricate Co., Ltd has obtained lots of utility model patents and invention patents, quality and performance of products has been much improved and sell well all over the world.
