| Place of Origin: | Shandong, China |
| Brand Name: | HUASU |
| Certification: | CE, ISO9001 |
| Model Number: | HSBZ PVC |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Packaging Details: | standard package or as required |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets / month |
| Production Line: | SJZ65/132+GF160 | Power Supply: | 380V, 50Hz, 3-phase Or Customized |
|---|---|---|---|
| Extruder: | SJZ65/132 | Screw Diameter: | 65/132mm |
| Heating Power: | 4 Zones , Total 19kw | Main Motor Power: | 37kw |
| Output: | 200-250kg/h | ||
| High Light: | 250kg/H PVC Pipe Extrusion Line,Conical Twin Screw PVC Pipe Extruder,37kw PVC Pipe Extrusion Line |
||

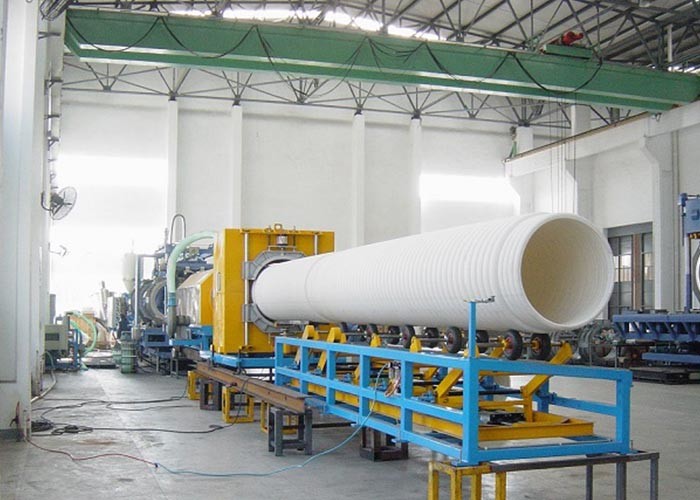

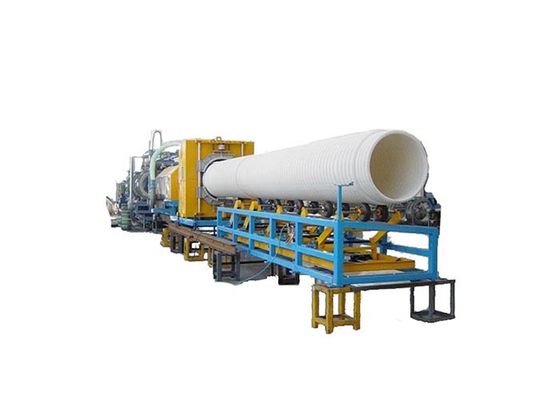

Conical Twin Screw Extruder PVC Pipe Extrusion Line Output 200-250kg/H
Description
1. PVC Pipe Extrusion Line, including conical twin screw extruder, pipe die head, vacuum calibrating tank,
water spraying tank, haul off machine, cutting machine, and stacker etc.
2. We offer screws of updated structures for raw materiel with big or smalI proportion of filling materials such
as calcium carbonate. Equipped with different mouIds and downstream equipment, the Iine can produces
UPVC, C-PVC, PVC-M, PVC-0 pipes, composite pipes with foamed middle Iayer, composite foamed pipes
with inner spirals.
3. PVC pipe making machine is mainly used to produce agricultural water supply/drainage pipes, architectural
water supply/drainage pipes, cable laying pipes etc.
4. Our machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined
with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion,
high capacity production.
Technical Parameter
| Production Line | SJZ65/132+GF160 | SJZ80/156+GF400 |
| Power Supply | 380V, 50Hz, 3-phase or customized | |
| Extruder | SJZ65/132 | SJZ80/156 |
| Screw Diameter | ￠65/132mm | ￠80/156mm |
| Heating Power | 4 zones , total 19kw | 4 zones , total 36kw |
| Main Motor Power | 37kw | 55kw |
| Extruder Dimension | 4250*1500*2100mm | 4750*1500*2100mm |
| Extruder Weight | 3500kg | 5000kg |
| Output | 200-250kg/h | 350-380kg/h |
| Diameter Range | ø63-ø160mm | Ø100-ø315mm |
Product Flow
Screw Loader for Mixer → Mixer unit → Screw Loader for Extruder → Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing

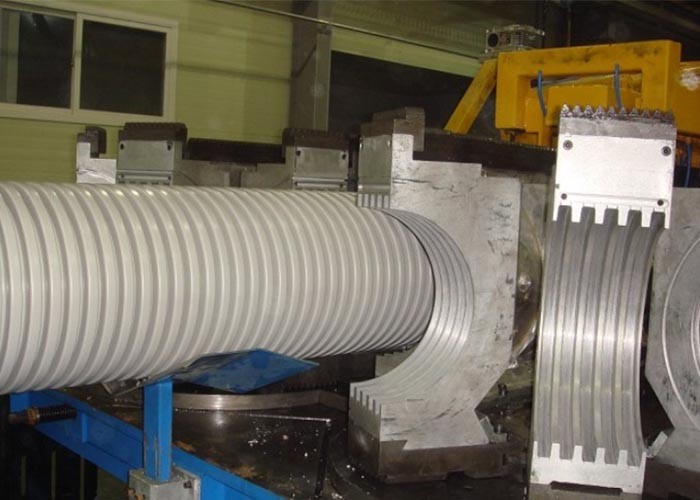

Detailed Parts

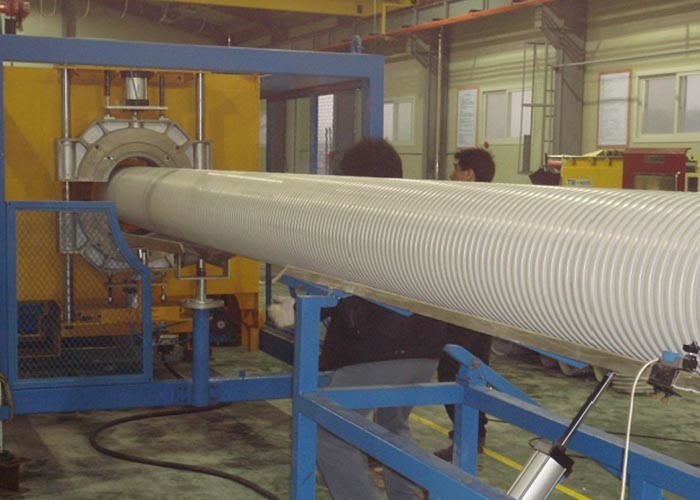

Finished Products
