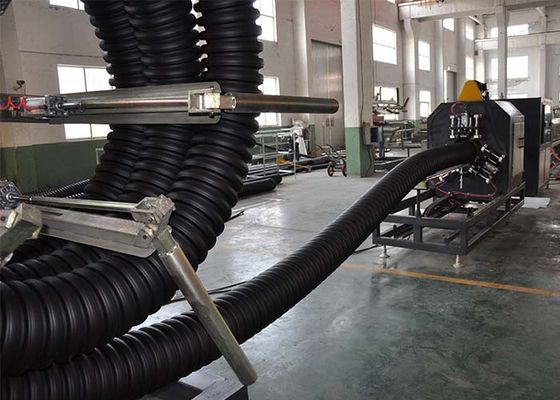

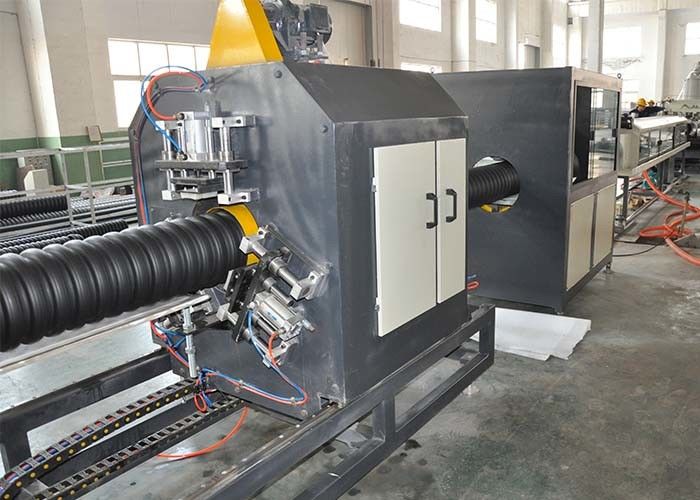

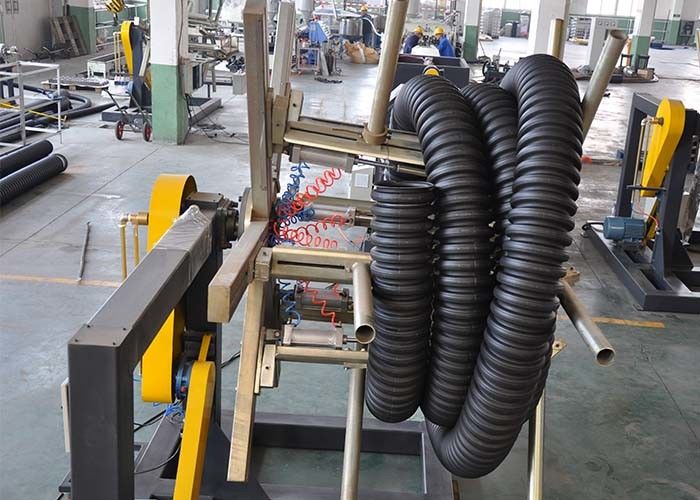

PP PE Single Wall Corrugated Pipe Production Line ID 200mm
| Place of Origin | CHINA |
|---|---|
| Brand Name | SD HUASU |
| Certification | ISO |
| Model Number | SBG 250 |
| Minimum Order Quantity | 1 SET |
| Packaging Details | STANDARD PACKAGE |
| Delivery Time | 30 WORKING DAYS |
| Payment Terms | T/T |
| Supply Ability | 50 SETS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter | 90-250 Mm | Extruder | SJ 90/30 |
|---|---|---|---|
| Output | 120-260kg/h | AC Motor | 75kw |
| Inverter | ABB | Feeding System | Auto |
| Water Sleeve Material | High Quality Steel | Mould Block Material | High Quality Aluminum Alloy |
| Highlight | ID 200mm Pipe Extrusion Line,120kg/H Corrugated Pipe Extrusion Line,Dia 250mm Corrugated Pipe Extrusion Line |
||
Product Description
PP/PE Single Wall Corrugated Pipe Production Line SBG250 Making ID200mm Corrugated Pipe
- Products:
- Application: Electrical conduct
- Pipe length: 6m or according the customer’s inquiry
- Recommended raw material: new material for HDPE single wall corrugated pipe
- Pipe list and pressure grade:
| NO. | Internal Diameter( mm) | Outside Diameter ( mm) | Remark |
| 1 | 50 | ||
| 2 | 63 | ||
| 3 | 75 | ||
| 4 | 90 | ||
| 5 | 110 | ||
| 6 | 160 | ||
| 7 | 200 |
- Environment Condition
| Location | Workshop |
| Power Supply | No dangerous area, No power stop area |
| Humidity degree | ≤95% |
| Temperature | 0-36℃ |
- Work Condition
| Power | 380 V x 50 Hz x 3 Phase (according to client’s demand) |
| Total Power | 120kw |
| Cooling Water | Recycling water. ≤20℃, ≥0.3Mpa, ～3T/h |
| Compressed air | 0.3m3/min, ＞0.5Mpa |
| Line Dimension | 20m x 4m x 3 m |
- Main Technical Performance
| Extruder | Motor | Max. Output | Note |
| SJ90/30 | 75kw | 120-260kg/h |
Production description

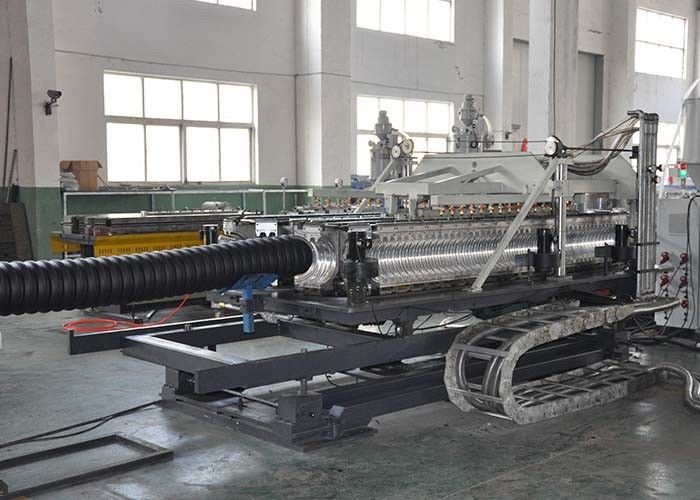

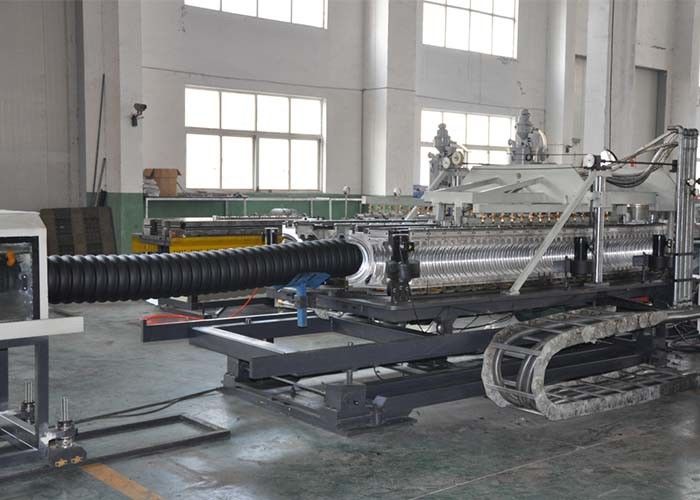

1.High speed corrugator.
2.Close type corrugater and vacuum for forming.
3.Forming mould is moving in a tunnel.
4.Forming tunnel is cooled by water.
5.Forming mould is made of hard alloy steel and anti-corrosion and abrasion.
6.No any connection between forming mould, then reduce time to change.
7.Provide single wall corrugation dead die.
Product features
1.It is very simple and convenient to operate;
2.The production line has high production efficiency;
3.Good operating system;
4.Work does not produce a lot of noise;
5.Good durability.
Product advantages
1.Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral, as well as the difficulty in forming of plastic resin.
2.Corrugator adopts closed water cooling structure, closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly, running stablely. You even couldn't see the connecting line on the surface of pipe. Cooling water is cycling inside the corrugator, it will make the cooling speed fast, so the production speed of pipe will be raised highly.
3.Meanwhile, the corrugator adopts building blocks design, we can use same basis structure but different forming length of corrugator. The longer forming length of corrugator, the more output of pipe. We can make different forming length corrugator according to different cusotmers' needs.
Usage
PP Single wall Corrugated Pipe Extrusion Line can produce pipe with heating-proof, corrosion-proof, friction-proof and high strength. And the pipe will be used in electricity/pneumatic wire conduit , Auto wire conduit, protection conduit, machine tools , electric locomative, projections installation, lights, automatic tools and other fields. It is a big market demand.
