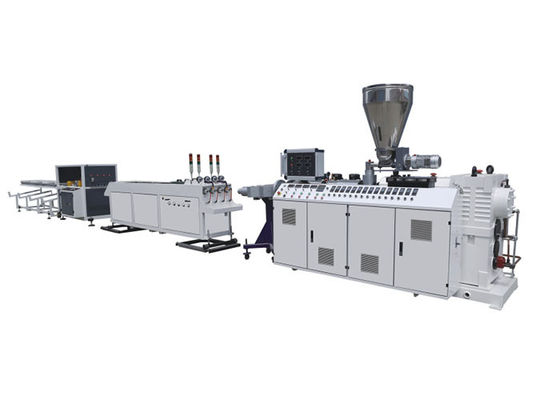

ISO9001 32mm 37kw 250kg/H PVC Pipe Extrusion Machine

  • ISO9001 32mm 37kw 250kg/H PVC Pipe Extrusion Machine
  • ISO9001 32mm 37kw 250kg/H PVC Pipe Extrusion Machine
Place of Origin CHINA
Brand Name SD Huasu Brand
Certification CE, ISO9001:2008, UL, QS, GMP
Model Number SRQG-32PVC
Minimum Order Quantity 1 SET
Packaging Details STANDARD PACKAGE
Delivery Time 30 WORKING DAYS
Payment Terms T/T
Supply Ability 50 SETS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Outside Diameter 20-32mm Other Diameter Available And Can Be Required
Total Power 37kw Max. Output 250kg/h
Conical Twin--Screw Extruder SJSZ-65/132
Highlight

250kg/H PVC Pipe Extrusion Machine

,

32mm PVC Pipe Extrusion Machine

,

37kw PVC Pipe Extrusion Machine
Leave a Message
Product Description

SRQG-32PVC—— Four Cavities For Making Wire Conduit Pipes PVC Solid Wall Pipes

Special request from Customer: four cavities
Products
Application: Wire conduit
Pipe length: According the customer’s inquiry
Recommended raw material: new material for PVC
Pipe list and pressure grade
Outside Diameter(mm) 20 25 32
Pressure grade



Work Condition
Power 380 V x 50 Hz x 3 Phase (according to customer requirement)
Cooling Water Recycling water. ≤20℃, ≥0.3Mpa, ～15M³/h
Compressed air 0.4m3/min,＞1.2MPa



Main Technical Performance
Extruder Motor Max. Output Note
SJSZ-65/132 37kw 250kg/h Extrusion for pipe



No Name Model Qty Remark
1 Conical Twin--Screw Extruder SJSZ-65/132 1 set Extrusion for pipe
2 Molds (four cavities)   1 set OD 20-25-32mm
3 Vacuum calibration water cooling tank (four cavities)   1 set 6000mm
4 Haul-off machine   4 sets
5 YYJ Printer   4 sets
6 Cutting machine   4 sets
7 Overturning bracket   4 sets
8 Control system   1 set



Conical Twin--Screw Extruder SJSZ-65/132
Screw Hardness of screw HV＞740
Material 38CrMoAlA nitriding handling hardness of barrel HV＞940
Diameter of screw 65/132mm
Depth of barrel nitriding 0.5-0.7mm
Depth of screw nitriding 0.4-0.6mm
Slotted barrel with water cooling forced material feeding



Pre-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

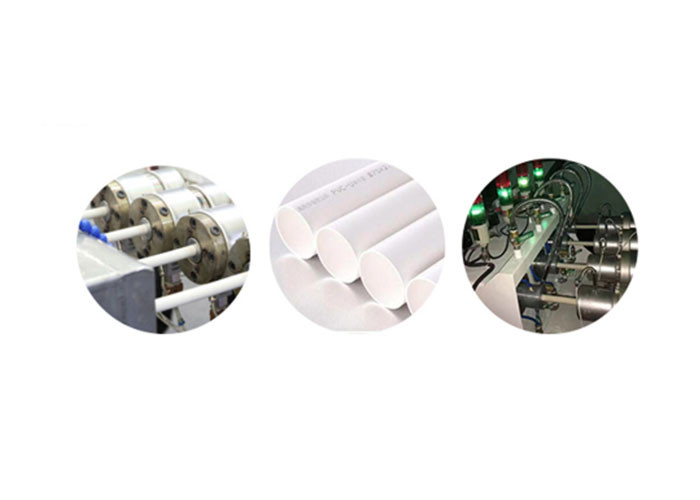

ISO9001 32mm 37kw 250kg/H PVC Pipe Extrusion Machine 0ISO9001 32mm 37kw 250kg/H PVC Pipe Extrusion Machine 1

1- Manufacturer or trading company

Manufacturer, but has own foreign trading sales department.

2-How to come to your factory
One hour from Jiaodong International airport , welcome to visit our factory and we could pick you up.

3- Equipment production process:
Improve product quality through advanced production management.Let you know production schedule through regular pictures, video, show the real production process to you.Invite you or your third party, to our factory to test, inspection machine before shipment, until you are satisfied.

4- If customers can see machines running before purchase
We have many Chinese customers close to our factory, welcome to visit us and we will drive you to our customer's factory to see the machine running and check the quality.
