25m/Min PE PP Single Wall Corrugated Pipe Making Machine High Speed

25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine

Detailed technical information of 25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine

1.0 Single Screw Plastic Extruder SJ-55X30

--Barrel screw Hardness of screw                   HV>740

--Material 38CrMoAlA Hardness of barrel       HV>940

--Nitriding handling

Slotted barrel with water-cooled forced feeding

--Depth of barrel nitriding                                0.4--0.7mm

--Depth of screw nitriding                                0.3--0.6mm

--Diameter of screw                                        55mm

--L:D                                                                 30:1

Heating& cooling

--Barrel heating zone                                      3 zones x 3.5kw

--Barrel cooling zone                                      3 zones x 0.18kw

--Power of barrel heating                               10.5kw

Driving

--AC Motor                                                     22kw

--Inverter                                                        ABB or Yaskawa

--Wheel Box                                                  Gear driving

--Gear Material                                              20CrMnTi

--Gear Type                                                  Helical Gear

--Max. Output                                               70kg/h

1.1 Auto Material - feeding System

--Dryer                                                          1pcs

--Vacuum Feeder                                         1pcs

2.0 Forming-Machine SBCJ-63

The molding machine adopts closed molding module chain and closed design. The modules are accurately matched with the mold base, so that each pair of molding modules can be interchanged, vacuum molding and water cooling. The die base is made of high-quality alloy and quenched, tempered and nitrided. Dovetail groove is used between the die base and the module for accurate positioning, mechanical locking and convenient specification replacement. The sliding part on the workbench is made of 40Cr and the surface is strengthened by ion nitriding process, so it has a long service life.

--Module                                                   OD 32-40-50-75 mm

--Maximum speed 8m/min

--Quantity of module                                 44 pairs (Aluminum Molds)

--Inverter                                                   ABB or Yaskawa

--Driving motor                                          2.2kw

--Central height (mm)                               1100mm±50mm (adjustable)

--Auto—lubricating system Slide way self-lubricating

--Cooling mode                                        Air Cooling

--Adjustment                                             Three-dimensional Adjustable

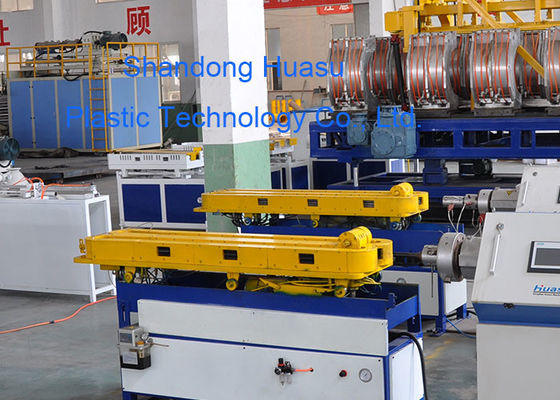

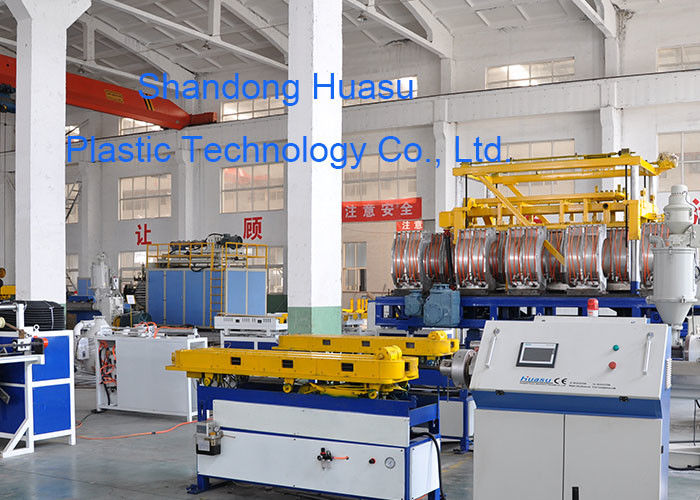

Photo of 25m/Min PE/PP High Speed Single Wall Corrugated Pipe Making Machine
