Industrial Plastic Corrugated HDPE PVC Pipe Extrusion Line Heavy Duty Large Diameter

  • Industrial Plastic Corrugated HDPE PVC Pipe Extrusion Line Heavy Duty Large Diameter
  • Industrial Plastic Corrugated HDPE PVC Pipe Extrusion Line Heavy Duty Large Diameter
Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number plastic pipes making extruder machine
Minimum Order Quantity 1 SET
Price US $10,000-200,000/ Set
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 30 sets/month
Product Details
Model GSJ-65/33 Extrude Central Height 1100mm
Diameter 65mm Material 38CrMoAlA
Surface Treatment Nitrided And Polished Heating Method By Ceramic
Highlight

Corrugated HDPE PVC Pipe Extrusion Line

,

Large Diameter HDPE PVC Pipe Extrusion Line

,

Large Diameter PVC Pipe Making Machine
Leave a Message
Product Description

Industrial Heavy Duty Large Diameter Plastic Corrugated HDPE PVC Pipe Making Machine

1. Technical spec of Industrial Heavy Duty Large Diameter Plastic Corrugated HDPE PVC Pipe Making Machine



Model GSJ-65/33
Extrude central height 1100mm
High efficiency screw
Diameter 65mm
L/D 33:1
Material 38CrMoAlA
Surface Treatment Nitrided and Polished
Barrel
Material 38CrMoAlA
Inner Surface treatment Nitrided, ground
Heating method By ceramic
Heating control zones zones
Heating power KW
Cooling system By blower fan
Cooling zones 4zones
Cooling power 0.2KW/zone
Gearbox
Material of the house QT200
Gear type Helical gears
Material of the gear 20CrMnTi
Heat treatment of the gear surface Quenching
Material of the axes bearings 40Cr
Imported high quality bearing
Main Motor 22KW

2.PP PE Corrugation/Corrugated Pipe Extrusion Line:Mold die with modules

1. mold standard:Internal Dia : 1.5" 2 "

2.2Heater Die adopt casting aluminum heater, mica heater for mouth die.
2.3Calibration Unit :The material of sizing unit is high-quality wearing resistance copper
2.4 Mould block: AL
2.5 All the molds inner runner are chrome plated and good mould steel.
2.6 material:40Cr and nitrided
2.7 modules:50 pairs
3. PP PE Corrugation/Corrugated Pipe Extrusion Line:Corrugated style forming machine one set
3.1Structure Horizontal
3.2Corrugators up/down moving motor 2.2KW
3.3Guide track The material is 40Cr
3.4Block seat Material is 40Cr, nitrided
3.5Back/Forward Track
3.6Hydraulic system Oil pump: 1.1KW
3.7Corrugators motor AC motor 2.2KW x 1 set PP PE Corrugation/Corrugated Pipe Extrusion Line:
3.8Corrugators gear box Helical gears
3.9Corrugators cooling Block is cooled by air, 0.25KW x5set cooling fan
4. PP PE Corrugation/Corrugated Pipe Extrusion Line:haul off machine and shrink pipe equipment one set
5. PP PE Corrugation/Corrugated Pipe Extrusion Line:Cutter

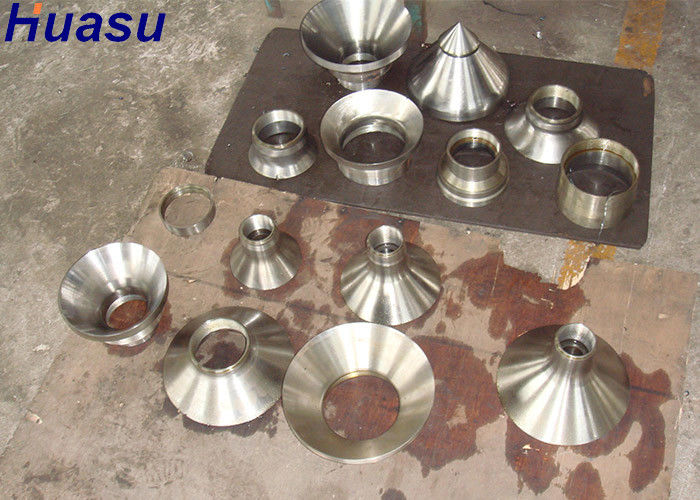

3.PP PE Corrugation/Corrugated Pipe Extrusion Line:Machine pictures:

Industrial Plastic Corrugated HDPE PVC Pipe Extrusion Line Heavy Duty Large Diameter 0
