Double Wall Corrugated (DWC) Cable Tube Extrusion Line Extruder
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Huasu Brand |
| Certification | CE, ISO9001 |
| Model Number | DWC Pipe Extrusion Pruduction Line |
| Minimum Order Quantity | 1 SET |
| Price | US $ 72000-78000 / Set |
| Packaging Details | standard package or as required |
| Delivery Time | 30 working days |
| Payment Terms | T/T |
| Supply Ability | 5 sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Specification | 500mm |
|---|---|---|---|
| Origin | China | HS Code | 8477209000 |
| Highlight | DWC Cable Tube Extrusion Line,Double Wall Cable Tube Extrusion Line,Double Wall DWC pipe Extruder |
||
Product Description
Double Wall Corrugated (DWC) Cable|Tube Extrusion Line|Extruder Pipe Making Machine Price
- Detailed technical information of Double Wall Corrugated (DWC) Cable|Tube Extrusion Line|Extruder Pipe Making Machine
| No. | Name & Model | Quantity | |
| 01 | Conical Twin Screw Extruder SJSZ92/188 | 1 set | |
| 02 | Molds | 160mm die head water sleeve mould block | 6 sets |
| 200mm die head water sleeve mould block | |||
| 250mm die head water sleeve mould block | |||
| 315mm die head water sleeve mould block | |||
| 400mm die head water sleeve mould block | |||
| 500mm die head water sleeve mould block | |||
| 03 | Forming Machine SBCJ-500 | 1 set | |
| 04 | Cutting Machine STG-500 | 1 set | |
| 05 | Automation Belling Machine SGK-500 | 1 set | |
| 06 | PLC Control System SBG 500 | 1 set | |
1.0 Conical Twin Screw Extruder 92/188
--Screw Hardness of screw HV>740
--Barrel Hardness of barrel HV>940
--Material 38CrMoAlA nitriding handling
--Depth of barrel nitriding 0.4-0.7mm
--Depth of screw nitriding 0.3-0.6mm
--Diameter of screw 92/188mm
--L/D 22:1
--Quantity of screw 2
Heating& Cooling
--Barrel heating zone 5 zones ×15.5kw
--Barrel cooling (wind) 4 zones x 0.75kw
--Die heating zones 6zones
Driving
--DC motor 110kw
--Converter Eurotherm (UK) Overloading Protection
--Wheel box Hard surface gear driving
--Material of gear 20CrMnTi
--Carburized and quenching
--Material of reducer 38CrMoAIA
--Max. Output 500-750kg/h
--Center height 1150mm
1.1 Material Supply System
--Motor 1.5kw
--Inverter Fuji
--Gearbox Hard surface gear driving
--Suitable material PVC powder resin
--Hopper Stainless steel
2.0 Molds
2.1 Die Head
--Specification: ODΦ160, Φ200, Φ250, Φ315, Φ400, Φ500mm
--Material 40Cr flow channel chrome plate and polish treatment
2.2 Water Sleeve
--Water sleeve material High Quality Steel
--Specification ODΦ160, Φ200, Φ250, Φ315, Φ400, Φ500mm
2.3 Mould Block
--Material High quality aluminum alloy
--Quantity 40pairs
--Cooling type Air cooling

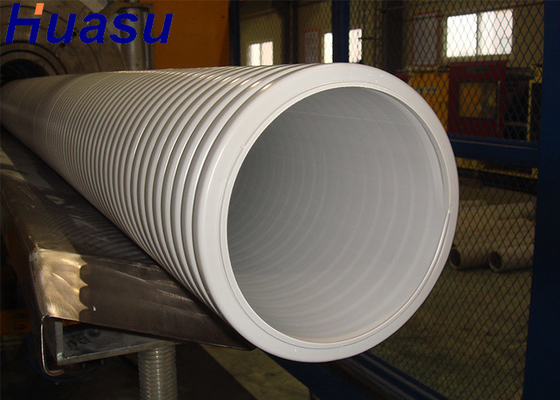

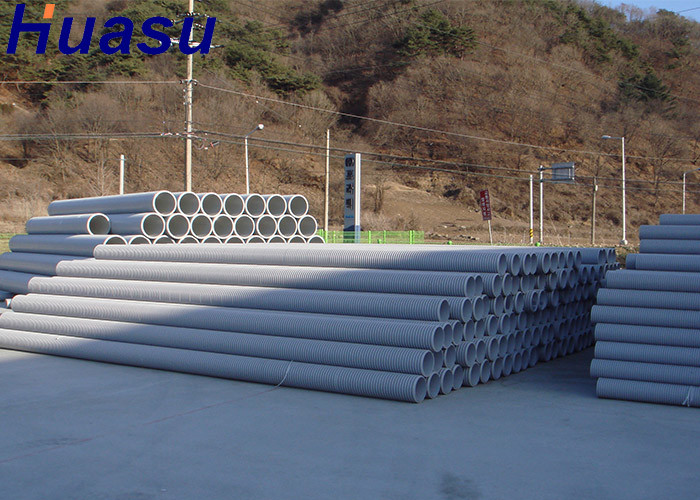

Photos of Double Wall Corrugated (DWC) Cable|Tube Extrusion Line|Extruder Pipe Making Machine Price
