Sn4 Sn8 Double Wall Corrugated Pipe Corrugator Extruder Cutting Machine Perforator

Place of Origin CHINA
Brand Name Shandong Huasu Brand
Certification CE, ISO9001
Model Number DWC Pipe Extrusion Pruduction Line
Minimum Order Quantity 1 SET
Price US $10,000-197,000/ Piece
Packaging Details standard package or as required
Delivery Time 30 working days
Payment Terms T/T
Supply Ability 5 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Production Capacity 80 Sets Corrugated Pipe Lines Per Year Payment Terms L/C, T/T
Warranty 12 Months Product Type PE Pipe
High Accuracy All Made By High Accurate Machine Tools Specification OD25 - OD2000mm Corrugated Pipe Extrusion Lines
Highlight

Sn8 Double Wall Corrugated Pipe Corrugator

,

Sn4 Double Wall Corrugated Pipe Corrugator

,

Sn4 Double Wall Corrugated Pipe Extruder

Leave a Message
Product Description

Double Wall Corrugated Pipe Corrugator/Extruder/Cutting Machine/Perforator/Coiler/Die Head/Mold/Making Machine



General information

  • Special request from Customer:
  • Products:
    • Application: Water drainage or electrical conduit
    • Pipe length: 6m or according the customer’s inquiry
    • Recommended raw material: special material for PE or PP double wall corrugated pipe
    • Pipe list and pressure grade:
NO. Internal Diameter( mm) Outside Diameter ( mm) Remark
1 700
2 800
3 900
4 1000
5 1100
6 1200
  • Environment Condition



Location Workshop
Power Supply No dangerous area, No power stop area
Humidity degree ≤85%
Temperature 0-36℃
  • Work Condition



Power 380 V x 50 Hz x 3 Phase (according to customer requirement)
Total Power 735kw, production energy consumption is about 445kw
Cooling Water Recycling water. ≤20℃, ≥0.3Mpa, ~3T/h
Compressed air 0.3m3/min, >0.5Mpa
  • Main Technical Performance
Extruder Motor Max. Output Note
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h



1. The output capacity varies with the materials and the operation conditions.

2. Line speed: According to the thickness, pipe standard and operation condition.

3. Operation direction: From Right to Left.

4. The color of the line: HUASU standard color.

5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.

  • Detailed technical information
No. Name & Model Quantity

01



Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
     02 Forming machine SBCJ-1200H 1 set
     03 Spray water tank SBSC-1200H with haul-off machine 1 set
     04 Planetary chip free cutting machine SBQG-1200H 1 set
     05 Unloading bracket SBXL-1200H 1 set
     06 PLC control system 1 set

07



Molds 39 pairs(double-layer online expansion) ID 700mm die head water sleeve mould block 1 set
ID 800mm die head water sleeve mould block 1 set
ID 900mm die head water sleeve mould block 1 set
ID 1000mm die head water sleeve mould block 1 set
ID 1100mm die head water sleeve mould block 1 set
ID 1200mm die head water sleeve mould block 1 set
     08 Spare parts 1 set

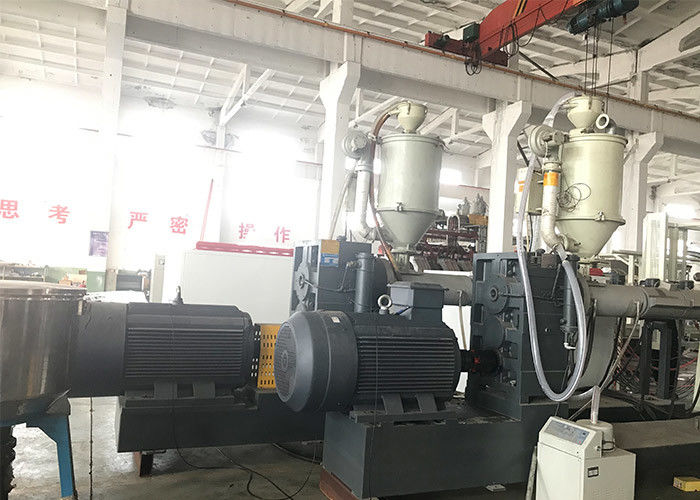

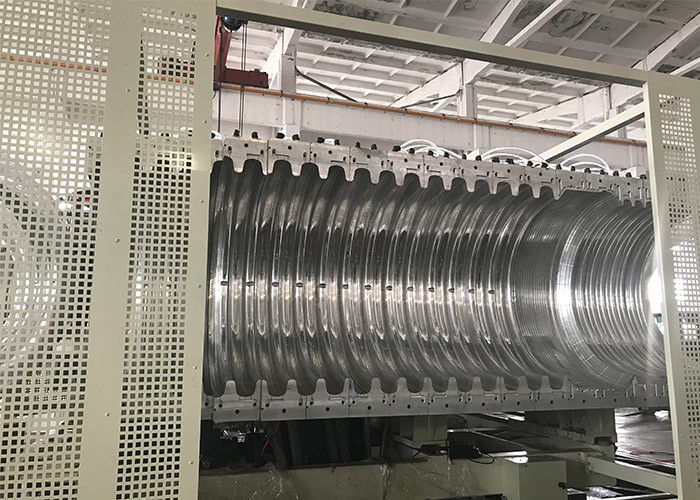

Photos of Double Wall Corrugated Pipe Corrugator

Sn4 Sn8 Double Wall Corrugated Pipe Corrugator Extruder Cutting Machine Perforator 0
