Product Details:
Place of Origin: CHINA
Brand Name: Shandong Huasu Brand
Certification: CE, ISO9001
Model Number: DWC Pipe Extrusion Pruduction Line
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US $10,000-197,000/ Piece
Packaging Details: standard package or as required
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Name: Plastic Pipe Extrusion Line Payment Terms: L/C, T/T
Warranty: 12 Months Product Type: PE Pipe
Application: Electrical Conduit Specification: OD25 - OD2000mm Corrugated Pipe Extrusion Lines
High Light:

OD2000mm Plastic Pipe Extrusion Line

,

Electrical Conduit PE Pipe Extrusion Line

,

PLC Control PVC Pipe Extrusion Line

OD25 - OD2000mm Plastic Pipe Extrusion Line Electrical Conduit



Plastic Pipe Extrusion Line General information



The wall of this Pipe is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, negative pressure resistance, anti-bending, good negotiability, so it is suitable to conveying gas, liquid and powder, widely used in industry agriculture, construction and irrigation, etc.



Plastic Pipe Extrusion Line Parameters



NO. Internal Diameter( mm) Outside Diameter ( mm) Remark
1 700
2 800
3 900
4 1000
5 1100
6 1200
  • Environment Condition



Location Workshop
Power Supply No dangerous area, No power stop area
Humidity degree ≤85%
Temperature 0-36℃
  • Work Condition



Power 380 V x 50 Hz x 3 Phase (according to customer requirement)
Total Power 735kw, production energy consumption is about 445kw
Cooling Water Recycling water. ≤20℃, ≥0.3Mpa, ~3T/h
Compressed air 0.3m3/min, >0.5Mpa
  • Main Technical Performance
Extruder Motor Max. Output Note
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h
SJ120/33 250kw 850kg/h



1. The output capacity varies with the materials and the operation conditions.

2. Line speed: According to the thickness, pipe standard and operation condition.

3. Operation direction: From Right to Left.

4. The color of the line: HUASU standard color.

5. Remains the right to improve the specification of the line, if there is any modification in the future customer will not be informed.

  • Detailed technical information
No. Name & Model Quantity

01



Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
Single screw extruder SJ-120/33 1 set
     02 Forming machine SBCJ-1200H 1 set
     03 Spray water tank SBSC-1200H with haul-off machine 1 set
     04 Planetary chip free cutting machine SBQG-1200H 1 set
     05 Unloading bracket SBXL-1200H 1 set
     06 PLC control system 1 set

07



Molds 39 pairs(double-layer online expansion) ID 700mm die head water sleeve mould block 1 set
ID 800mm die head water sleeve mould block 1 set
ID 900mm die head water sleeve mould block 1 set
ID 1000mm die head water sleeve mould block 1 set
ID 1100mm die head water sleeve mould block 1 set
ID 1200mm die head water sleeve mould block 1 set
     08 Spare parts 1 set

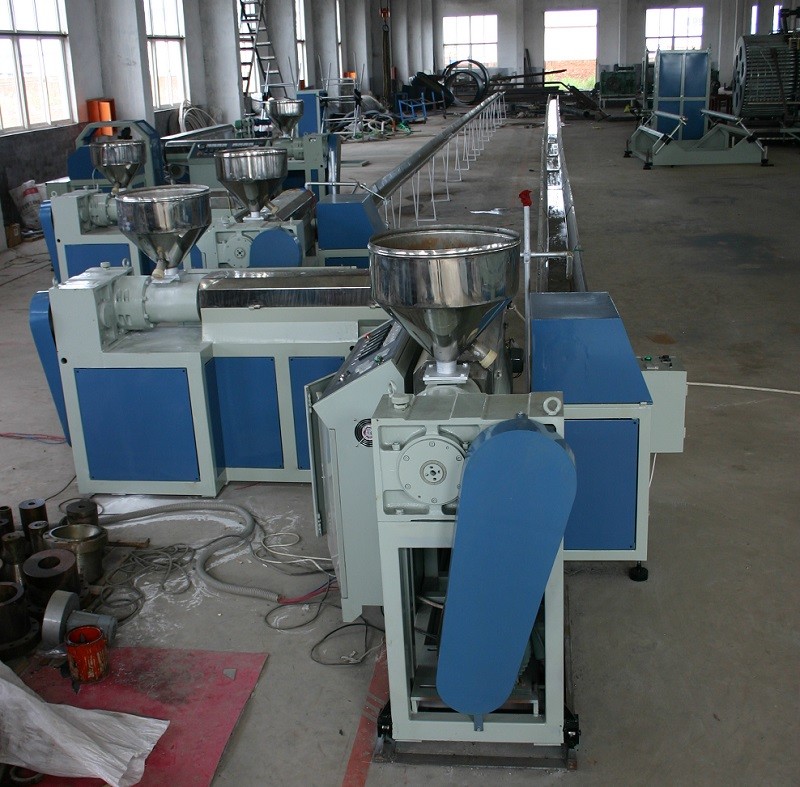

Photos of Double Wall Corrugated Pipe Corrugator

OD25 - OD2000mm Plastic Pipe Extrusion Line For Electrical Conduit 0
