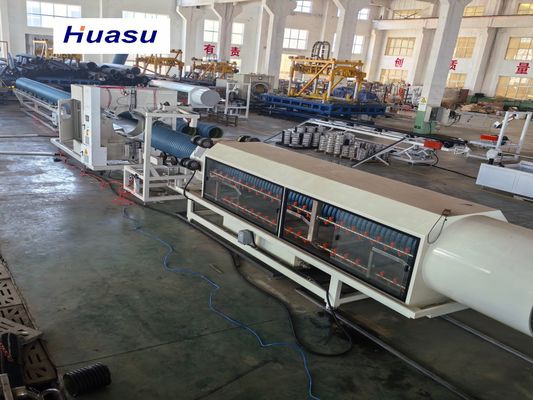

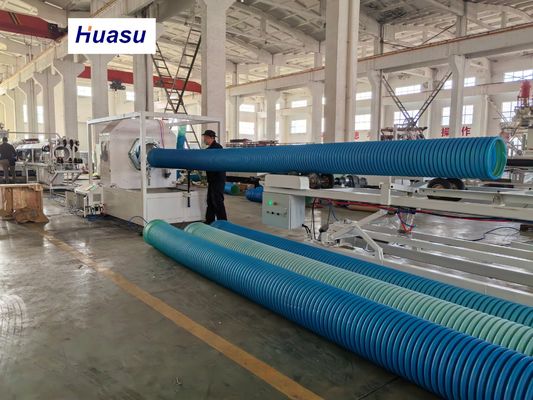

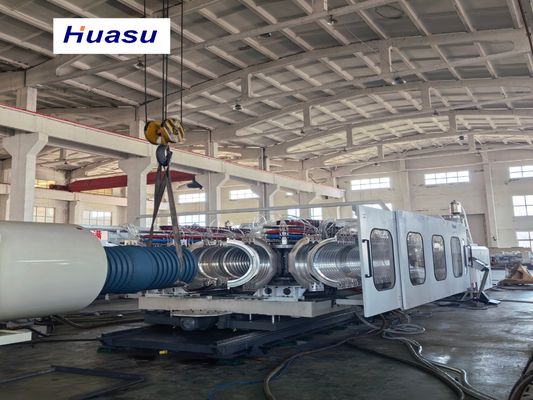

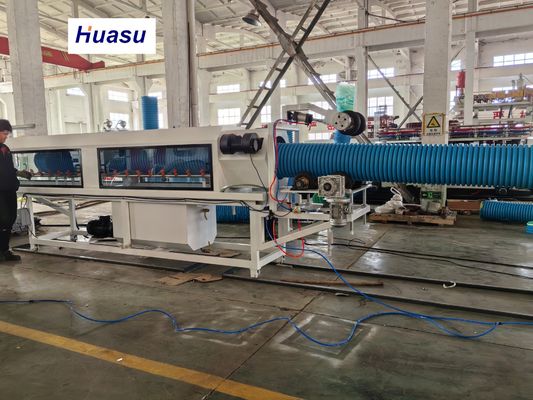

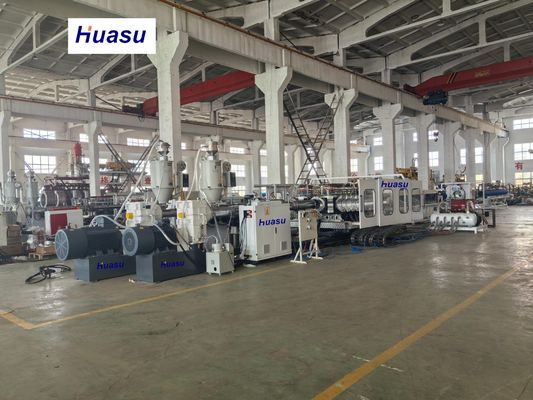

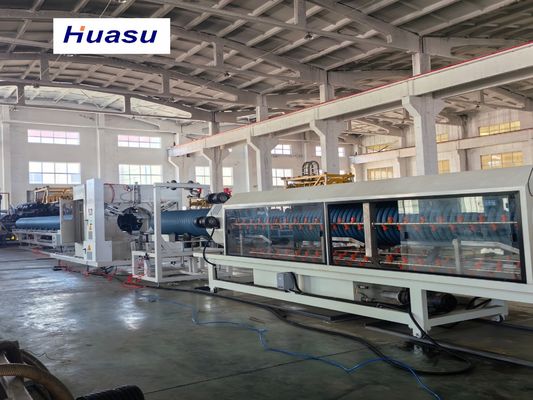

32-1600mm Pipe Diameter Double-layer Spiral Co-extrusion Corrugated Pipe Extrusion Line with Siemens PLC System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pipe Diameter(mm) | 32-1600mm | Die Head | Double-layer Spiral Co-extrusion |
|---|---|---|---|
| Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer | Max Speed (m/min) | 1.5-5m/min |
| HDPE Output | 40-1600kg/h | Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| Forming | Vacuum Forming | Cooling System | Complete Inner Cooling System. |
| Highlight | Cable Protection Pipe Extrusion Line,Corrugated Pipe Extrusion Line,Bridge Prestressed Pipe Extrusion Line |
||
Product Description
Bridge Prestressed Cable Protection Corrugated Pipe Extrusion Line
This advanced corrugated pipe extrusion line represents the 3rd generation of improved products from Shandong HUASU. The system delivers significantly enhanced performance with output and production speed increased by 20-40% compared to previous models. Featuring online belling capability and Siemens PLC control system, it ensures optimal performance of the final corrugated pipe products.
Advanced Features
- Newly designed closed molding machine with specialized high-efficiency cooling system for aluminum modules
- Enhanced cooling efficiency during corrugated pipe production
- High-speed, high-output single-screw extrusion machine with professionally designed extrusion mold
- Large-scale, stable extrusion capability
- Excellent module interchangeability using LY12 high-quality alloy aviation aluminum
- Precision pressure casting process ensures high-density material free from light pores
- Resistant to deformation during long-term operation
- Customizable module waveform schemes available
- Automatic DWC cutter with computer control for precise cutting
- Stable operation with user-friendly interface
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Power | 200-1000 kW |
| Maximum Speed | 1.5-5 m/min |
| Corrugator Structure | Horizontal Structure, Easy Size Change |
| Forming Method | Vacuum Forming |
| Die Head | Double-layer Spiral Co-extrusion |
| Pipe Functions | Cable Protection, Medical Transfer, Gas Transfer, Water Transfer |
| Cooling System | Complete Inner Cooling System |
| HDPE Output | 40-1600 kg/h |
| Pipe Diameter | 32-1600 mm |
Applications
This corrugated pipe extrusion machine produces pipes with outer diameters ranging from 32mm to 1600mm. Applications include cable protection covers, medical transfer pipes (smaller sizes), and gas/water transfer systems (larger sizes).
