High Speed 1.5-5m/min HDPE/PVC Corrugated Pipe Production Equipment with 32-1600mm Pipe Diameter and Double-layer Spiral Co-extrusion
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Die Head | Double-layer Spiral Co-extrusion | Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
|---|---|---|---|
| Pipe Diameter(mm) | 32-1600mm | Forming | Vacuum Forming |
| Max Speed (m/min) | 1.5-5m/min | Cooling System | Complete Inner Cooling System. |
| Total Power(kw) | 200-1000kw | Pipe Function | Cable Protect Cover, Medical Transfer Pipe Gas Transfer, Water Transfer |
| Highlight | High Speed PVC corrugated pipe extruder,Sewage Transfer Pipe Production Equipment,Wire Conduit Pipe Production Equipment |
||
Product Description
High Speed HDPE/PVC Corrugated Pipe Production Equipment
Designed for sewage transfer and wire conduit applications, this advanced production equipment represents the 3rd generation of improved technology from Shandong HUASU.
The corrugated pipe production line delivers 20-40% higher output and production speed compared to previous models, featuring Siemens PLC system control and online belling capability for optimal product performance.
Key Features
- Newly designed closed molding machine with special high-efficiency cooling system for aluminum modules
- High-speed, high-output single-screw extrusion machine with professional corrugated pipe extrusion mould design
- Excellent module interchangeability using LY12 high-quality alloy aviation aluminum material
- Copper content ≥5% with precision pressure casting process for long-term durability
- Customizable module waveform solutions based on user requirements
- Automatic DWC cutter with computer control for precise cutting and stable operation
Technical Specifications
| Cooling System | Complete Inner Cooling System |
| Pipe Function | Cable Protect Cover, Medical Transfer Pipe, Gas Transfer, Water Transfer |
| Die Head | Double-layer Spiral Co-extrusion |
| Pipe Diameter | 32-1600mm |
| Total Power | 200-1000kW |
| Forming | Vacuum Forming |
| Structure Corrugator | Horizontal Structure Corrugator, Easy Change Production Size |
| HDPE Output | 40-1600kg/h |
| Max Speed | 1.5-5m/min |
Applications
This corrugated pipe extrusion machine produces pipes with outer diameters ranging from 32mm to 1600mm. Smaller diameter pipes are ideal for cable protection covers and medical transfer conduits, while larger sizes serve as reliable conduits for gas and water transfer systems.

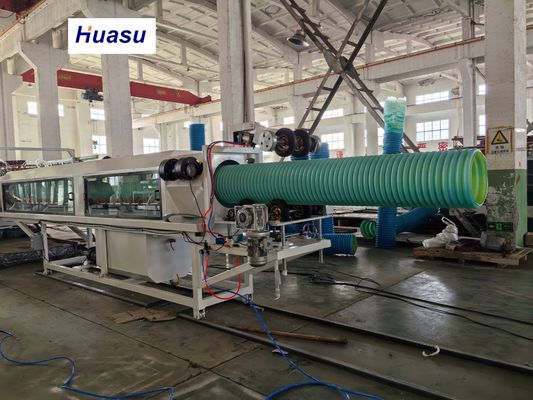

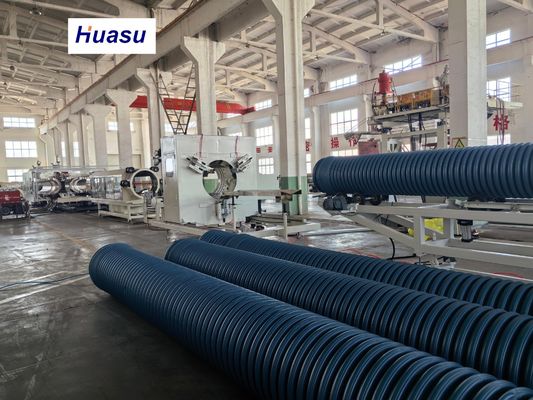

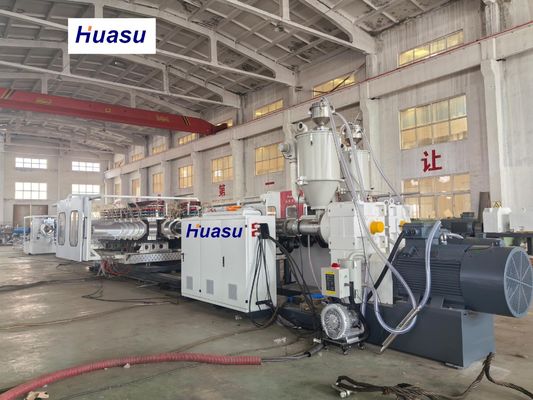

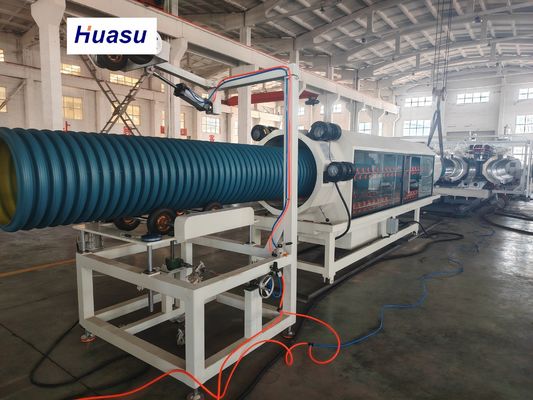

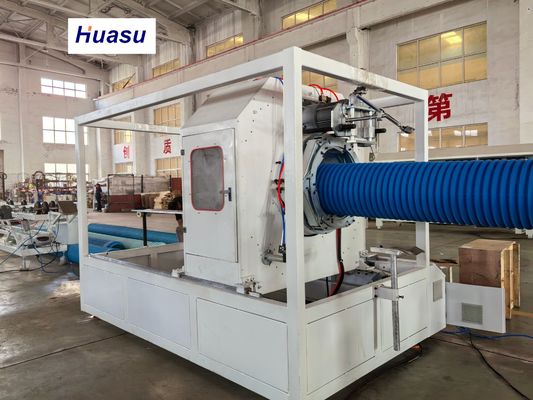

Product Gallery
