PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line

PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line

  • PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line
  • PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line
  • PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line
  • PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line
PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line
Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: QINGDAO HUASU
Certification: CE IOS9001
Model Number: SKRG3000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 19000.00-20000.00/set
Packaging Details: NORMAL PACKAGE
Delivery Time: 5-8work days
Payment Terms: L/C
Supply Ability: 150sets/year
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Pe Pipe Machine: Pe Pipe Extrusion Line
Product Name: Pe Pipe Making Machinery Pe Pipe Making Machinery: Plastic Pipe
Product Type: Extruding Machine
High Light:

spiral pipe bending machine

,

spiral welded pipe machine

PE Huge Calibre Hollowness Wall Spiral Production Line , Corrugated Pipe Production line 0

Extruder: High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency performance. It is a high speed and efficiency single screw extruder, the material of the screw and barrel is high-quality alloy steel(38CrMoALA), the surface of screw and barrel is high degree hardness, abrasion and corrosion resistance through nitriding handling can be service long life, the extruder adopts ceramic heating, low-noise fans, high-speed hardness surface gear box, with oil-cooling system of a special slotted feeding sets, great output, low consumption, excellent plasticizing.
Extrusion mould: The material of the extrusion mould is high-quality alloy steel 40Cr through the nitriding handling can be service long life. It combined with professional design. In order to extrude the profile pipe and produce it.
Vacuum calibrating water tank: Body with high hardness, high-quality stainless steel and bronze calibrating sleeve. Three-dimensional adjustment of the upper and lower left can be realized.

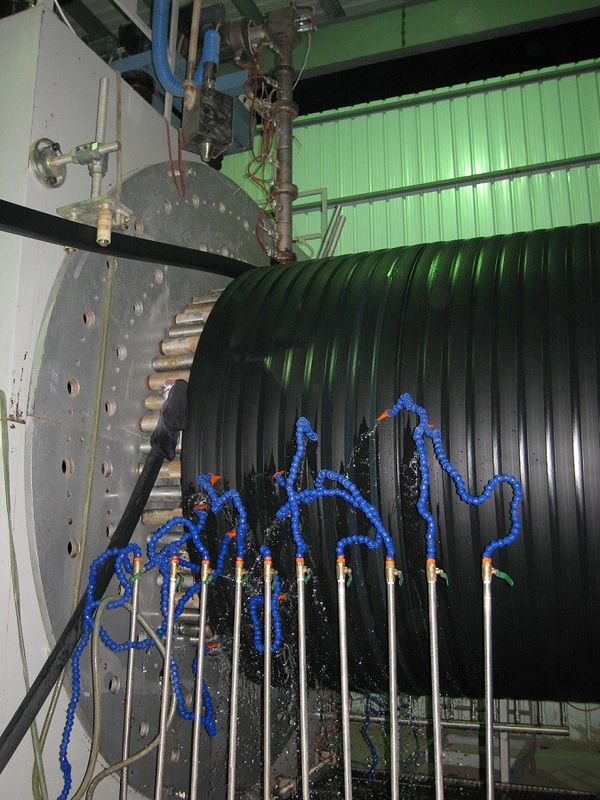

Water spray tank: The body of the tank is made of stainless steel and covered by the transparent pvc curtain. Adjustable upper and lower rack. The tank is equipped with bracket roller.
Melting Glue extruder: High speed and efficiency screw adopts ceramic heating. Slotted Barrel assures the glue extrude. This extruder is synchronized with the spiral forming machine through the precise system control, so efficiency melting paste together between the pipe and pipe.

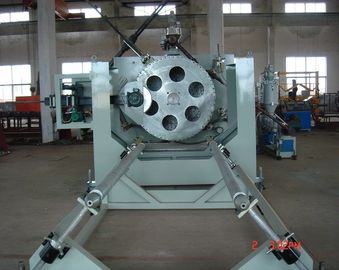

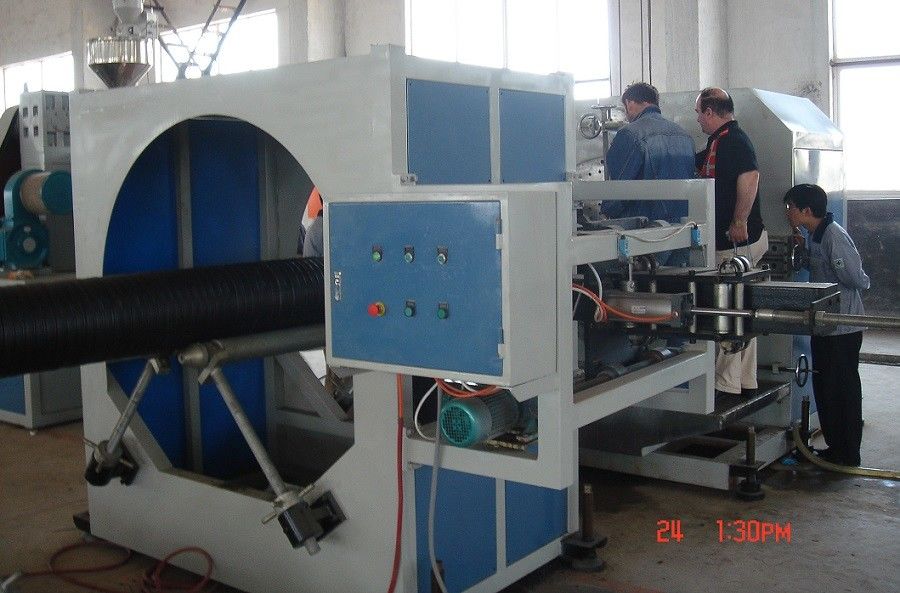

Spiral forming machine: Frequency conversion, FUJI invertor. Design of the forming machining make the pipe winding accurate and stable from different angel. At the same time guarantee the production of pipe to get to solid.
Cutting machine: Special saw cutting machine is designed for spiral pipe line. It can automatic cutting. Sawing equipment coordinated the synchronizer along oriented Column and pipe in the same direction movement so that it can finish sawing action.
Control system: Easy operation and high performance by adopting an advanced PLC control system. We can offer SIEMENS PLC controlling system which is intelligent control. Also we can offer ordinary controlling system which is equipped with SIEMENS electrical parts and Omron temperature controller. Intelligent control make the operation more simple.



Main Technical Parameter:

Model Pipe specification Extruder Total Power Max Output

Dimension

L×W×H(m)

Model Main Motor
SKRG3000 φ1500-φ3000mm SJ90×33 132kw 300kw 650kg 32×28×4
